Description

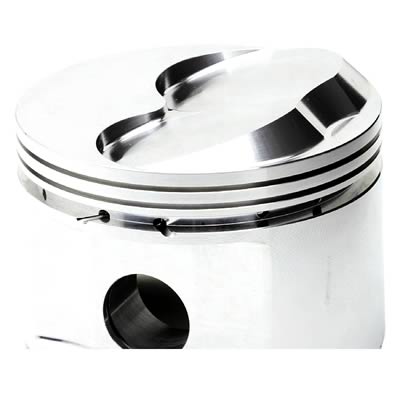

JE Pistons 400/440 Wedge dome top pistons are an all-new design that accommodate intake valve diameters up to 2.250 in. and accept long-duration, tight lobe separation cams. They're available with either .990 in. or 1.094 in. diameter wrist pins. These pistons are machined for 1/16, 1/16, 3/16 rings.Brand: JE Pistons
Manufacturer's Part Number: 213684
Part Type: Pistons
Product Line: JE Pistons 400/440 Wedge Dome Top Pistons
HP Direct Part Number: JEP-213684-8
UPC: 193564043221
Piston Rings Included: No
Bore (in.): 4.350 in.
Bore (mm): 110.490mm
Stroke: 3.750 in.
Engine Stroke Type: Stock
Rod Length: 6.766 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 2.058 in.
Piston Head Volume (cc): -13.50cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 1.094 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Manufacturer's Part Number: 213684
Part Type: Pistons
Product Line: JE Pistons 400/440 Wedge Dome Top Pistons
HP Direct Part Number: JEP-213684-8
UPC: 193564043221
Piston Rings Included: No
Bore (in.): 4.350 in.
Bore (mm): 110.490mm
Stroke: 3.750 in.
Engine Stroke Type: Stock
Rod Length: 6.766 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 2.058 in.
Piston Head Volume (cc): -13.50cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 1.094 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
