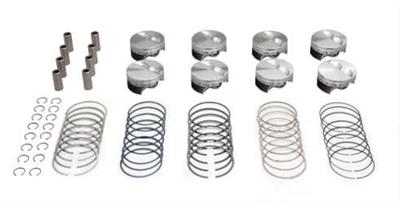

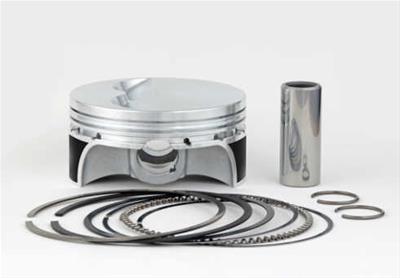

JE Pistons 4.6L/5.4L Modular FSR Pistons 314614

JE Pistons 4.6L/5.4L modular FSR pistons utilize their dedicated 2618 alloy Forged Side Relief (FSR) forging that was specifically designed for high-horsepower modular engines. They have engineered these pistons with extra weight-saving and durability measures in place for both street and racing applications. Accumulator grooves provide additional volume when residual combustion gases that have "blown by" the top ring can collect. Additional volume reduces pressure between the top and middle rings, adding in top ring seal and reducing ring flutter. Lightweight and extremely durable, JE modular FSR pistons are machined for 1.0mm, 1.2mm, 2.8mm, and 1.2mm, 1.5mm, 3.0mm rings.
Brand: JE Pistons
Manufacturer's Part Number: 314614
Part Type: Pistons
Product Line: JE Pistons 4.6L/5.4L Modular FSR Pistons
HP Direct Part Number: JEP-314614-8
UPC: 193564033031
Piston Rings Included: No
Bore (in.): 3.552 in.
Bore (mm): 90.221mm
Stroke: 3.750 in.
Rod Length: 5.850 in.
Piston Style: Dish, with three valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.200 in.
Piston Head Volume (cc): +13.60cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.866 in.
Piston Ring Thickness: 1.20mm x 1.50mm x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Fits 4.6L engines with 3-valves per cylinder.
