Description

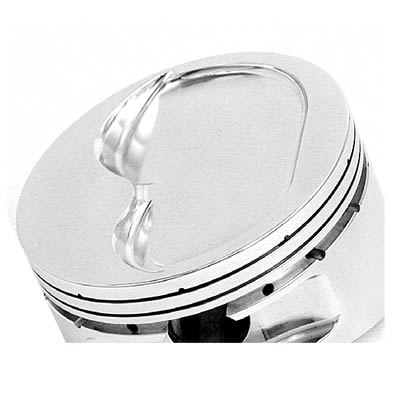

These 350 standard and GP 23 degree inverted dome top pistons by JE Pistons are specifically designed for Circle Track and road racing applications that call for 9.5:1 pistons. The standard 350 series pistons accept 1/16, 1/16, 3/16 rings. The GP series pistons accept .043, .043, 3.0mm backcut rings and include lateral gas ports for optimum ring seal.Brand: JE Pistons
Manufacturer's Part Number: 173582
Part Type: Pistons
Product Line: JE Pistons 350 Standard and GP 23 Degree Inverted Dome Top Pistons
HP Direct Part Number: JEP-173582-8
UPC: 193564045669
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 3.480 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.250 in.
Piston Head Volume (cc): +13.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 0.043 in. x 0.043 in. x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Gram weight 429g.
