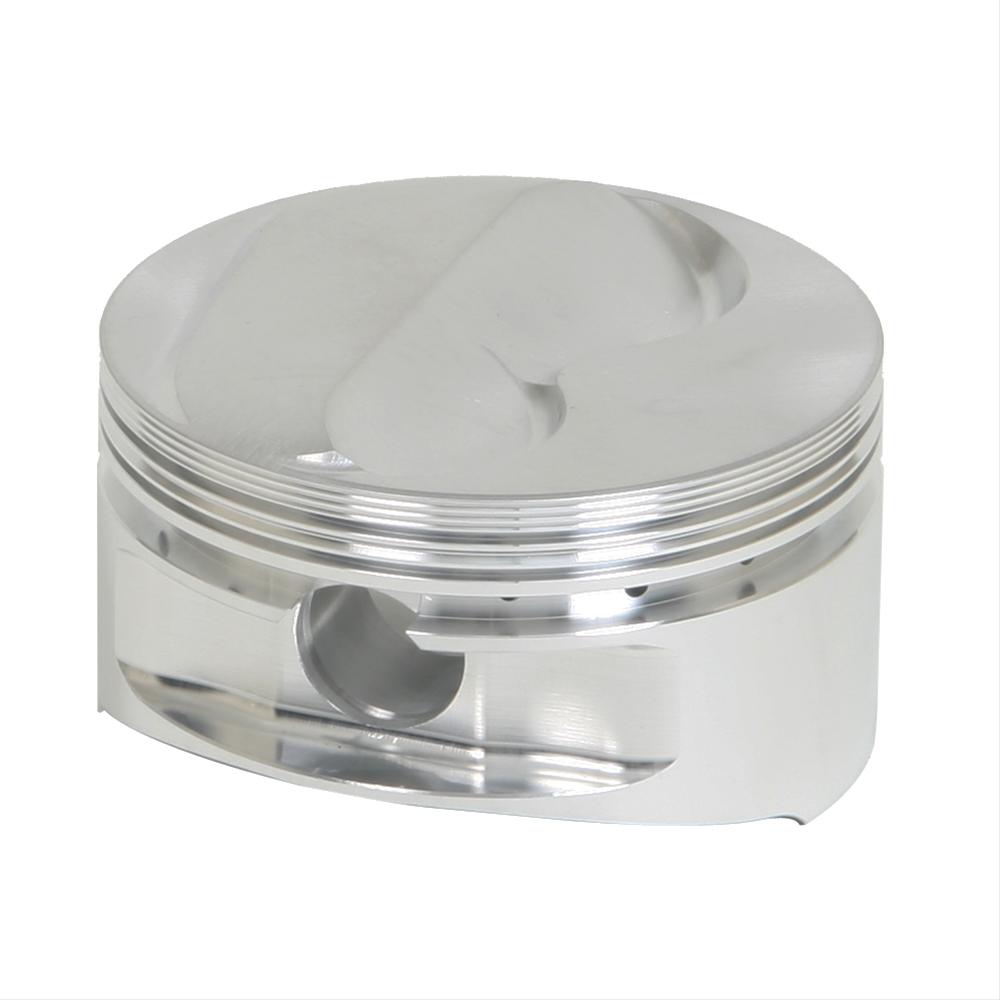

JE Pistons 350/400 Small Block Dome Top Pistons 182033

JE Pistons 350/400 small block dome top pistons are high-compression pistons that are compatible with most aftermarket 23 degree heads and are ideal for drag race and Circle Track applications. Valve reliefs will accommodate oversized valves and long-duration, tight lobe separation cams. Precision CNC ring grooves are designed for 1/16, 1/16, 3/16 rings. However, these will not fit JE Pistons Pro Topline or Brodix cylinder heads.Brand: JE Pistons
Manufacturer's Part Number: 182033
Part Type: Pistons
Product Line: JE Pistons 350/400 Small Block Dome Top Pistons
HP Direct Part Number: JEP-182033-8
UPC: 193564030474
Piston Rings Included: No
Bore (in.): 4.125 in.
Bore (mm): 104.775mm
Stroke: 3.875 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.062 in.
Piston Head Volume (cc): -3.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Oil rail support included. Solid dome design.
