Description

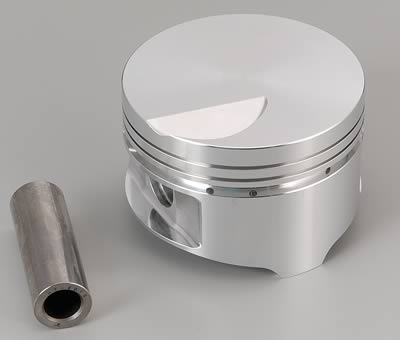

JE Pistons 350/400 18 degree flat top pistons are compatible with angle milled heads and feature a race-proven, low-friction skirt design. Valve reliefs will accommodate oversized valves and long-duration, tight lobe separation cams. Precision CNC-machined grooves accept 1/16, 1/16, 3/16 rings. These pistons utilize dedicated left and right hand forgings.Brand: JE Pistons
Manufacturer's Part Number: 181961
Part Type: Pistons
Product Line: JE Pistons 350/400 18 Degree Flat Top Pistons
HP Direct Part Number: JEP-181961-8
UPC: 193564034663
Piston Rings Included: No
Bore (in.): 4.165 in.
Bore (mm): 105.791mm
Stroke: 3.875 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.062 in.
Piston Head Volume (cc): +6.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Oil rail support included.
Manufacturer's Part Number: 181961
Part Type: Pistons
Product Line: JE Pistons 350/400 18 Degree Flat Top Pistons
HP Direct Part Number: JEP-181961-8
UPC: 193564034663
Piston Rings Included: No
Bore (in.): 4.165 in.
Bore (mm): 105.791mm
Stroke: 3.875 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.062 in.
Piston Head Volume (cc): +6.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Oil rail support included.
