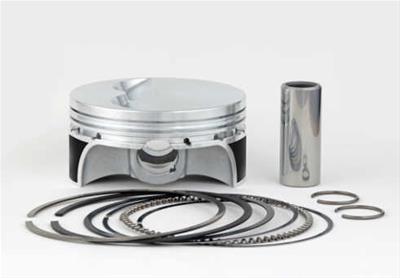

JE Pistons 322287

With more than 70 years of experience, it's no wonder JE Pistons is the world's leader in high performance pistons. How do they stay in front? Easy—by constantly improving designs, materials, and production processes, using state-of-the-art machining techniques, and incorporating other methods to keep costs low. The result is a line of great, economically priced pistons with features such as radiused valve reliefs (where applicable), forced piston-pin oilers, diamond-turned skirts, gas ports, and more! These forged aluminum pistons are available in various styles and sizes for fitment with specific engine applications.Brand: JE Pistons
Manufacturer's Part Number: 322287
Part Type: Pistons
Product Line: JE Pistons
HP Direct Part Number: JEP-322287-6
UPC: 193564036995
Piston Rings Included: Yes
Bore (in.): 3.425 in.
Bore (mm): 87.000mm
Stroke: 3.270 in.
Engine Stroke Type: Stock
Piston Style: Dish, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.255 in.
Piston Head Volume (cc): +4.90cc
Wrist Pin Style: Floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.866 in.
Piston Ring Thickness: 1.00mm x 1.20mm x 2.80mm
File Fit: No
Gapless: No
Top Ring Thickness: 1.0mm
Second Ring Thickness: 1.2mm
Oil Ring Thickness: 2.8mm
Remanufactured: No
Quantity: Sold as a set of 6.
