JE Pistons 312424

With more than 70 years of experience, it's no wonder JE Pistons is the world's leader in high performance pistons. How do they stay in front? Easy—by constantly improving designs, materials, and production processes, using state-of-the-art machining techniques, and incorporating other methods to keep costs low. The result is a line of great, economically priced pistons with features such as radiused valve reliefs (where applicable), forced piston-pin oilers, diamond-turned skirts, gas ports, and more! These forged aluminum pistons are available in various styles and sizes for fitment with specific engine applications.Brand: JE Pistons
Manufacturer's Part Number: 312424
Part Type: Pistons
Product Line: JE Pistons
HP Direct Part Number: JEP-312424-4
UPC: 193564046659
Piston Rings Included: Yes
Bore (in.): 3.041 in.
Bore (mm): 77.250mm
Stroke: 85.80mm
Rod Length: 131.500mm
Piston Style: Dish, with no valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.043 in.
Piston Head Volume (cc): +1.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.827 in.
Piston Ring Thickness: 1.20mm x 1.20mm x 2.80mm
File Fit: Yes
Gapless: No
Remanufactured: No

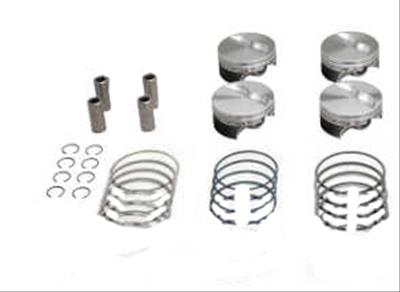

Quantity: Sold as a set of 4.
Notes: Accepts turbo and nitrous applications.
