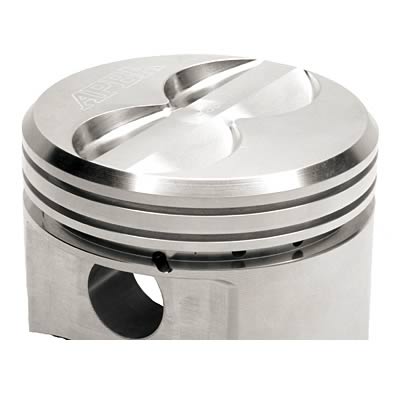

JE Pistons 305 Small Block 23 Degree Flat Top Pistons 170772

JE Pistons 305 flat tops are ideal for 305 Sprinters as well as street/strip applications. They feature 1/16, 1/16, 3/16 CNC precision-machined ring grooves and are approved replacement pistons by APBA for the 305 class. They are available in a 4-valve relief flat top style as well as a dish top style. They accept original equipment manufacturer 5/64, 5/64, 3/16 rings and are manufactured for a press pin. All APBA pistons have the APBA logo laser-etched on the top of the piston.Brand: JE Pistons
Manufacturer's Part Number: 170772
Part Type: Pistons
Product Line: JE Pistons 305 Small Block 23 Degree Flat Top Pistons
HP Direct Part Number: JEP-170772-8
UPC: 193564040312
Piston Rings Included: No
Bore (in.): 3.796 in.
Bore (mm): 95.656mm
Stroke: 3.480 in.
Engine Stroke Type: Stock
Rod Length: 5.700 in.
Piston Style: Flat top, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.560 in.
Piston Head Volume (cc): +5.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
