Description

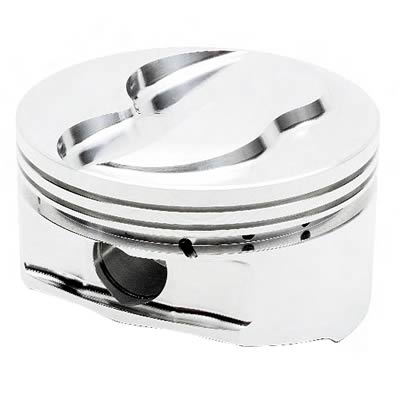

JE Pistons 302/351W big bore dome top pistons for small block Ford are available in large bore sizes to accommodate new aftermarket race blocks and most aftermarket and factory heads. Their precision CNC-machined ring grooves accept 1/16, 1/16, 3/16 rings. Cleveland and TFS twisted wedge heads will require custom pistons.Brand: JE Pistons
Manufacturer's Part Number: 232475S
Part Type: Pistons
Product Line: JE Pistons 302/351W Big Bore Dome Top Pistons
HP Direct Part Number: JEP-232475-1
UPC: 193564186232
Piston Rings Included: No
Bore (in.): 4.125 in.
Bore (mm): 104.775mm
Stroke: 3.400 in.
Engine Stroke Type: Stroked
Rod Length: 5.400 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.100 in.
Piston Head Volume (cc): -6.50cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Oil rail support included. Solid dome design.
Manufacturer's Part Number: 232475S
Part Type: Pistons
Product Line: JE Pistons 302/351W Big Bore Dome Top Pistons
HP Direct Part Number: JEP-232475-1
UPC: 193564186232
Piston Rings Included: No
Bore (in.): 4.125 in.
Bore (mm): 104.775mm
Stroke: 3.400 in.
Engine Stroke Type: Stroked
Rod Length: 5.400 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.100 in.
Piston Head Volume (cc): -6.50cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Oil rail support included. Solid dome design.
