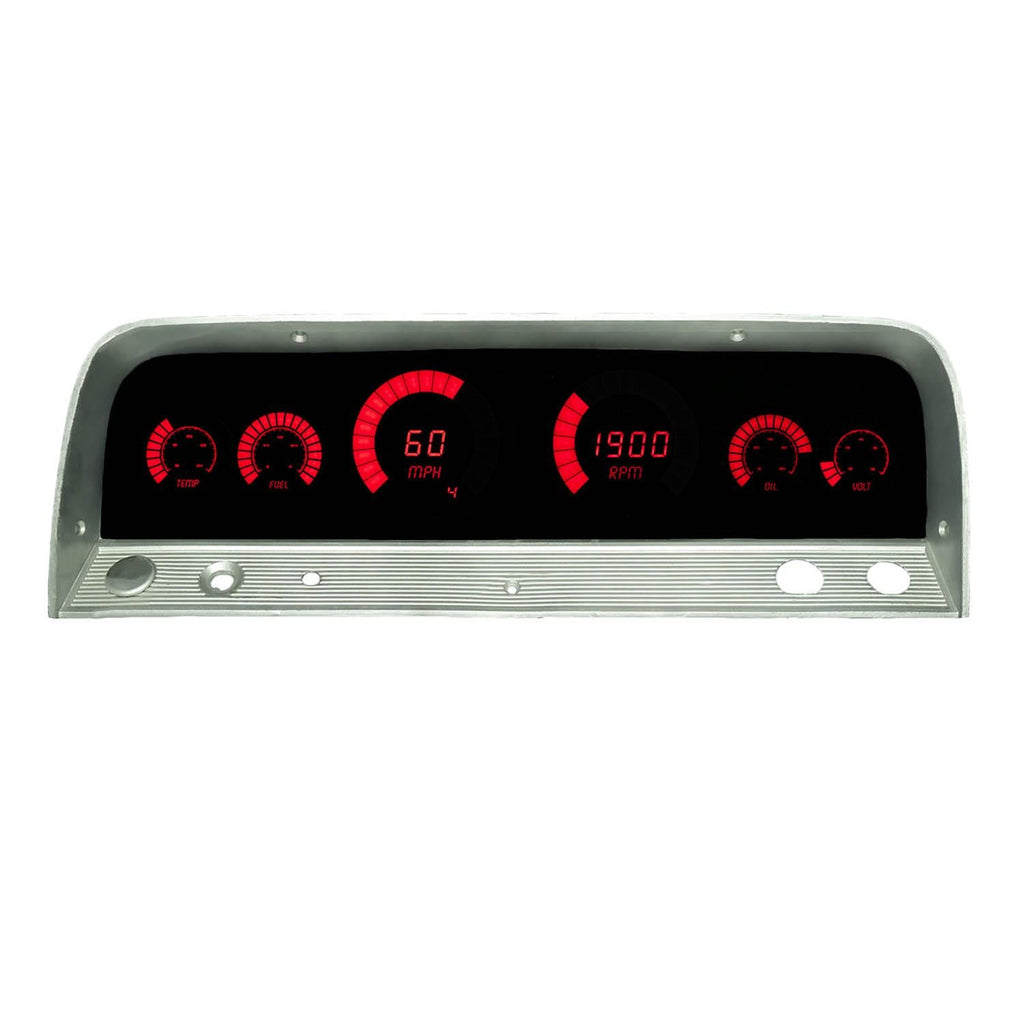

Intellitronix 1964-1966 GM/Chevy Truck Digital Direct-Fit Gauge Clusters BG6002R

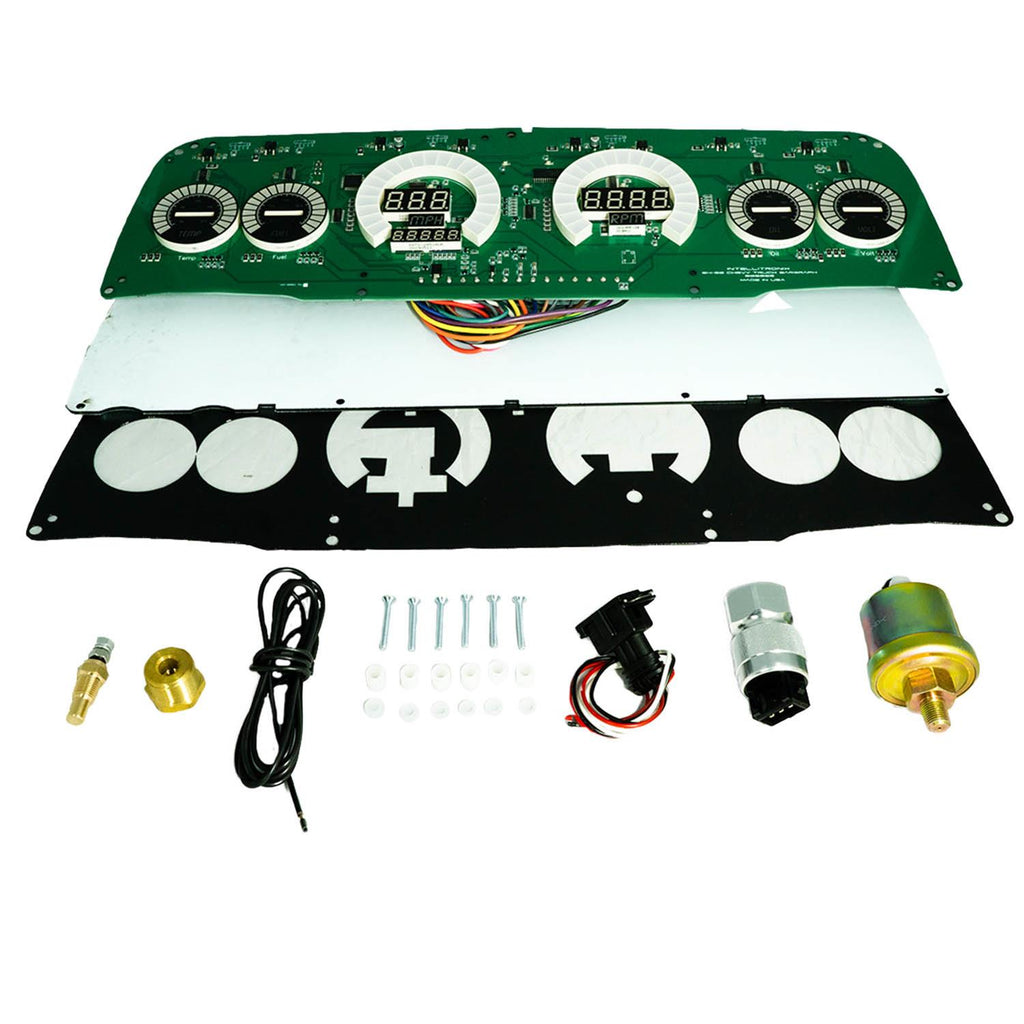

Intellitronix LED digital direct-fit gauge kits make it easy to go from analog to digital. These replacement gauge panel kits come complete with a circuit board, tinted Plexiglas lens plates, mounting hardware, and all necessary sending units and instructions. Intellitronix LED digital kits work with your factory fuel level, oil pressure sending units, and cruise control sender or electronic transmission output if so equipped. Plus, you get the cool stuff of modern gauges like 0-60 time, quarter-mile ETs, and high-speed recall, all with the push of a button. The LEDs are available in four colors--torch red, royal blue, aviation green, and arctic white. All Intellitronix products include a lifetime warranty.

Features include:

* Speedometer reads up to 255 mph, plus odometer, trip meter, and one-button calibration--regardless of tire size, gear ratio, or transmission
* Tachometer 0-9,900 rpm in 100 rpm increments
* Water temperature display with 100-300 degree F range, sender included
* Oil pressure display with 0-100 psi range (works with existing factory sender)
* Voltmeter display with 8-18 V range (no sending unit required)
* Fuel level display with 0-99 percent range in 1 percent increments (works with existing fuel level sending unit)
* Uses the original factory turn signals and high-beam indicator, unless otherwise noted
* Can be used with existing electronic cruise control senders, or with included universal speedometer sending unit, if your vehicle is not equipped with functional cruise control
* Lifetime guaranteeBrand: Intellitronix Corp
Manufacturer's Part Number: BG6002R
Part Type: Gauge Kits and Instrument Clusters
Product Line: Intellitronix 1964-1966 GM/Chevy Truck Digital Direct-Fit Gauge Clusters
HP Direct Part Number: IZL-BG6002R
UPC: 818731015169
Gauge Style: Digital
Gauge Face Color: Black
Gauge Number Color: Red
Tachometer Included: Yes
Speedometer Included: Yes
Oil Pressure Gauge Included: Yes
Water Temperature Gauge Included: Yes
Voltage Gauge Included: Yes
Fuel Level Gauge Included: Yes
Clock Included: No
Boost Gauge Included: No
Pyrometer Included: No
Transmission Temperature Gauge Included: No
Oil Temperature Gauge Included: No
Water Pressure Gauge Included: No
Ammeter Gauge Included: No
Fuel Pressure Gauge Included: No
Brake Bias Gauge Included: No
Trim Gauge Included: No
Hour Meter Included: No
Illuminated: Yes
Warning Lights Included: Yes
Gauge Panel Included: No
Gauge Pod Included: No
Gauge Type Note: See application page for specific gauge and sending unit information.
Remanufactured: No
Quantity: Sold as a kit.
Notes: Does NOT include housing/bezel. Kit includes "smoked" faceplate, sending units for water temperature (S8013), oil pressure (S8434), and speedometer (S9013). Chevrolet LS engine swaps include additional parts available separately.
