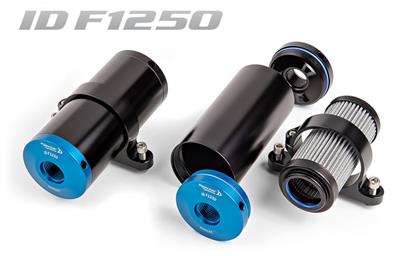

Injector Dynamics F1250 Fuel Filters IDF1250

An electronic fuel injector is the most precise component in a modern engine, with dimensions and tolerances measured in microns. Trouble-free operation requires proper filtration, defined by Bosch as a minimum capture efficiency of 87 percent at 5 microns, and 100 percent at 35 microns. To put that in perspective, the average human hair measures approximately 75 microns in diameter.

Injector Dynamics F1250 fuel filters provide this level of filtration, with a pressure drop of 1.1 psi at a flow rate of 1,250 l/h. That's enough to support 2,500 hp on ethanol and 3,750 hp on gasoline. The F1250s have fully anodized internals, fluorosilicone O-rings, and a glass fiber filter element—making them compatible with all fuels.

Basic specifications:

* Nominal Flow Rate: 1250 l/h at 7.5 kPa (1.1 psi) pressure drop
* Maximum Fuel Pressure: 10.0 Bar (145.0 psi)
* Fuel Compatibility: Compatible with all known fuels
* Fluid Connection: SAE -10 ORB port

Brand: Injector Dynamics
Manufacturer's Part Number: IDF1250
Part Type: Fuel Filters
Product Line: Injector Dynamics F1250 Fuel Filters
HP Direct Part Number: IJD-F1250
Fuel Filter Style: Inline
Inlet Quantity: 1
Fuel Filter Inlet Size: -10 AN O-ring
Inlet Attachment: O-ring
Outlet Quantity: 1
Fuel Filter Outlet Size: -10 AN O-ring
Outlet Attachment: Female O-ring
Filter Element Included: Yes
Smallest Particle Filtered: 5 microns
Filter Element Material: Fiberglass
Filter Housing Material: Aluminum
Filter Housing Color: Black
Overall Length (in.): 5.85 in.
Outside Diameter (in.): 2.480
Mounting Bracket Included: No
Fittings Included: No
Clamps Included: No
Maximum Fuel Pressure (psi): 145
Quantity: Sold individually.
Notes: Does not include the mounting bracket.
