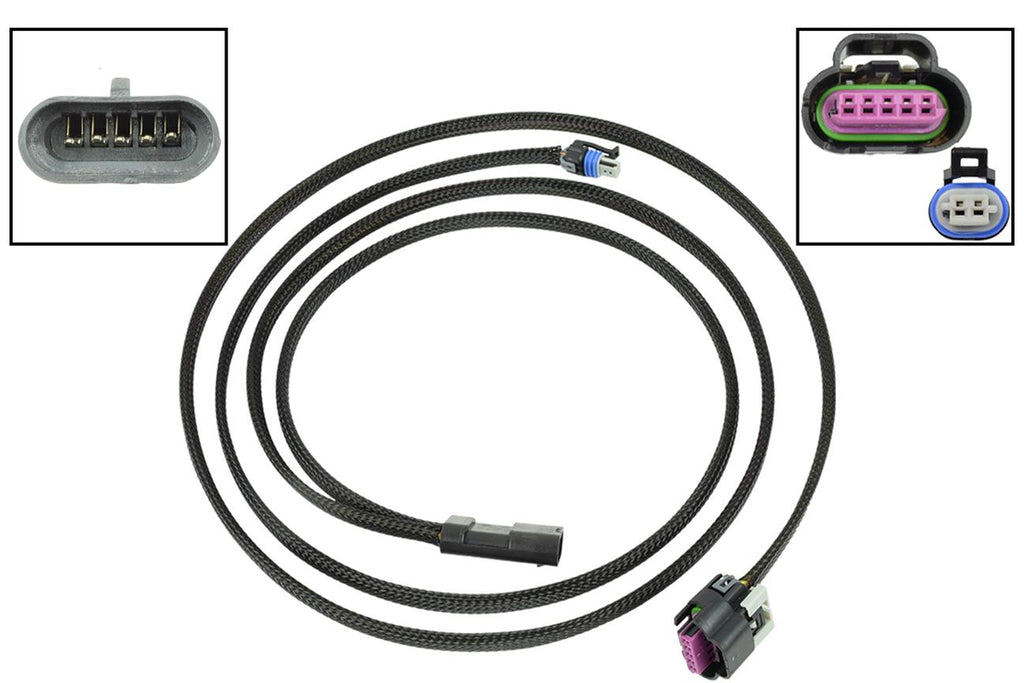

ICT Billet MAF/IAT Breakout Harnesses WAMAF30-60

Avoid conductivity issues that can cause your engine to run poorly and be difficult to diagnose. ICT Billet MAF/IAT breakout harnesses are assembled with OEM tooling and use OEM harness wire colors, as well as OEM Delphi connector, lock, seals, and terminals.

ICT Billet MAF/IAT harnesses are offer in different styles for retaining MAF in factory position while breaking (relocating) IAT sensor to different location, converting small 3-wire MAF to larger 5-wire MAF/IAT sensor, or when you need more length when relocating intake/air filter to opposite side of engine from factory harness and IAT is relocated external to the MAF sensor. Choose the one that meets your "breaking" needs.
Brand: ICT Billet
Manufacturer's Part Number: WAMAF30-60
Part Type: Wiring Harness Adapters and Extensions
Product Line: ICT Billet MAF/IAT Breakout Harnesses
HP Direct Part Number: ICB-WAMAF30-60
Wiring Harness Style: Extension with splitter
General Connector Family: Delphi/GM
Connector Model: Metri-pack GT Series
Pins Per Connector: 5
General Connector Family 2: Delphi/GM
Connector Model 2: Metri-pack GT Series
Pins Per Connector 2: 2, 5
Wiring Harness Length (in.): 60.000 in.
Quantity: Sold individually.
Notes: IAT extension length is 40 in. Compatible with GM (Gen 3) LS Series engines (using a 5-wire Mass Air Flow sensor and 2-wire Intake Air Temperature sensor).
