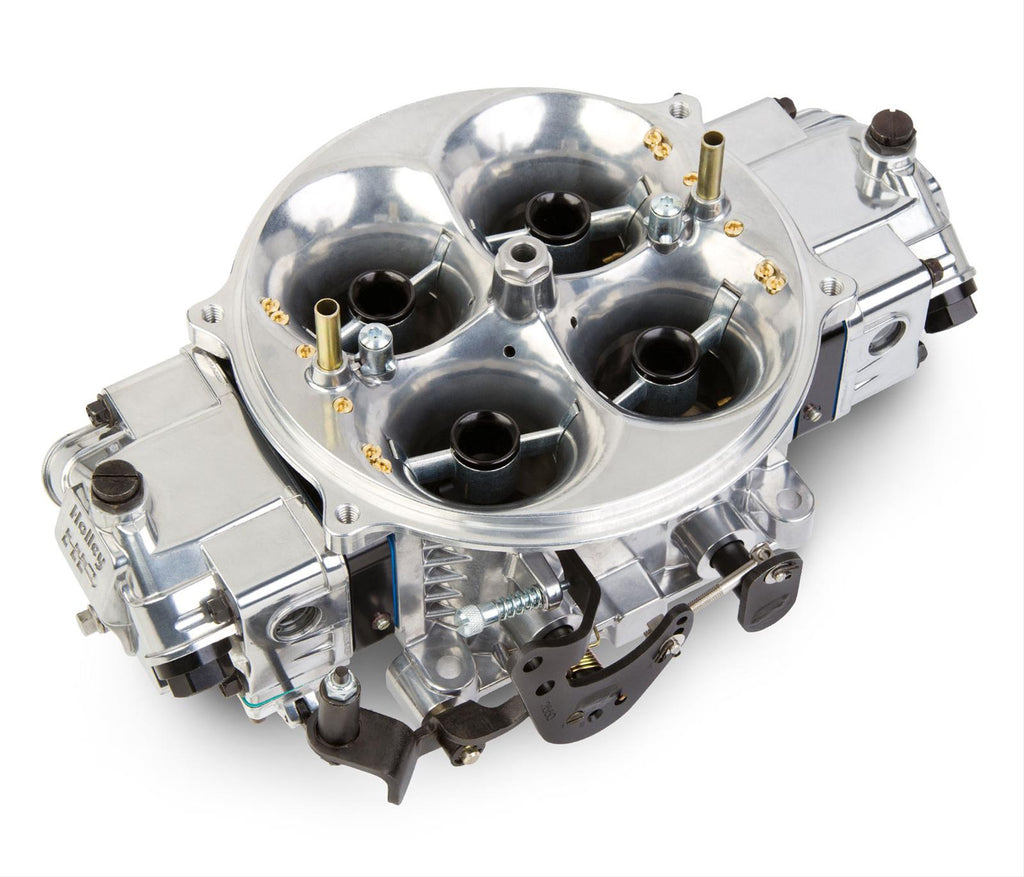

Holley Gen 3 Ultra Dominator Carburetors 0-80902BK

Holley Gen 3 Ultra Dominator carburetors feature a brand new main body, brand new state-of-the-art calibrations, high-volume HP fuel bowls, and sizes up to 1,475 cfm! The metering blocks are fully adjustable (emulsion bleeds, power valve channel restrictors, and idle feed restrictors). These carburetors include redesigned Holley HP fuel bowls for racing. Internal baffling helps to control fuel slosh and minimize float level fluctuations in hard launching or cornering situations. The HP fuel bowls also have material added in key areas (the needle and seat, fuel inlet, and sight window areas) for added strength in demanding race environments and can be plumbed from either side.

Some of the many Holley Gen 3 Ultra Dominator carb features include:

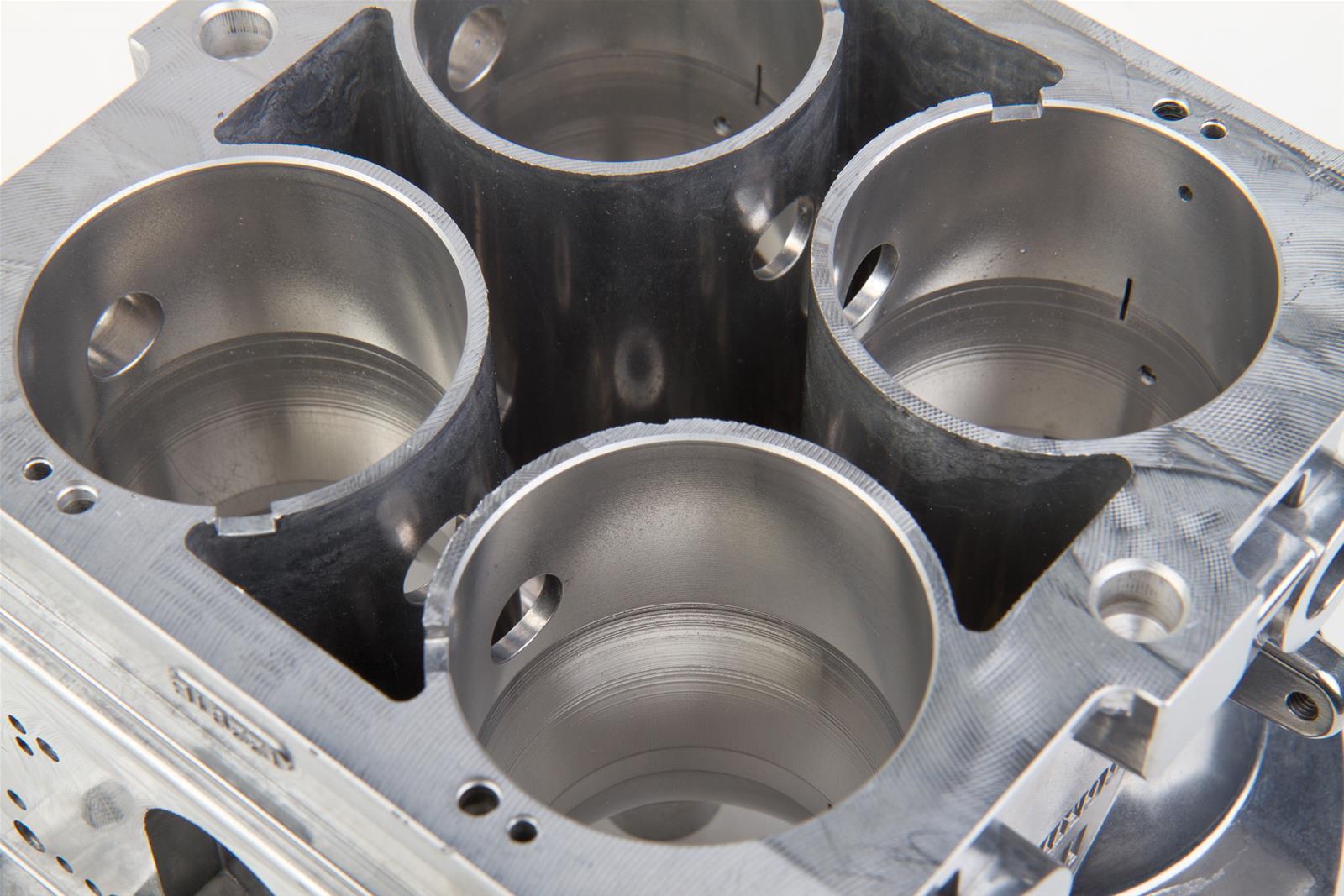

* Main body 5/16 in. taller than the previous generation

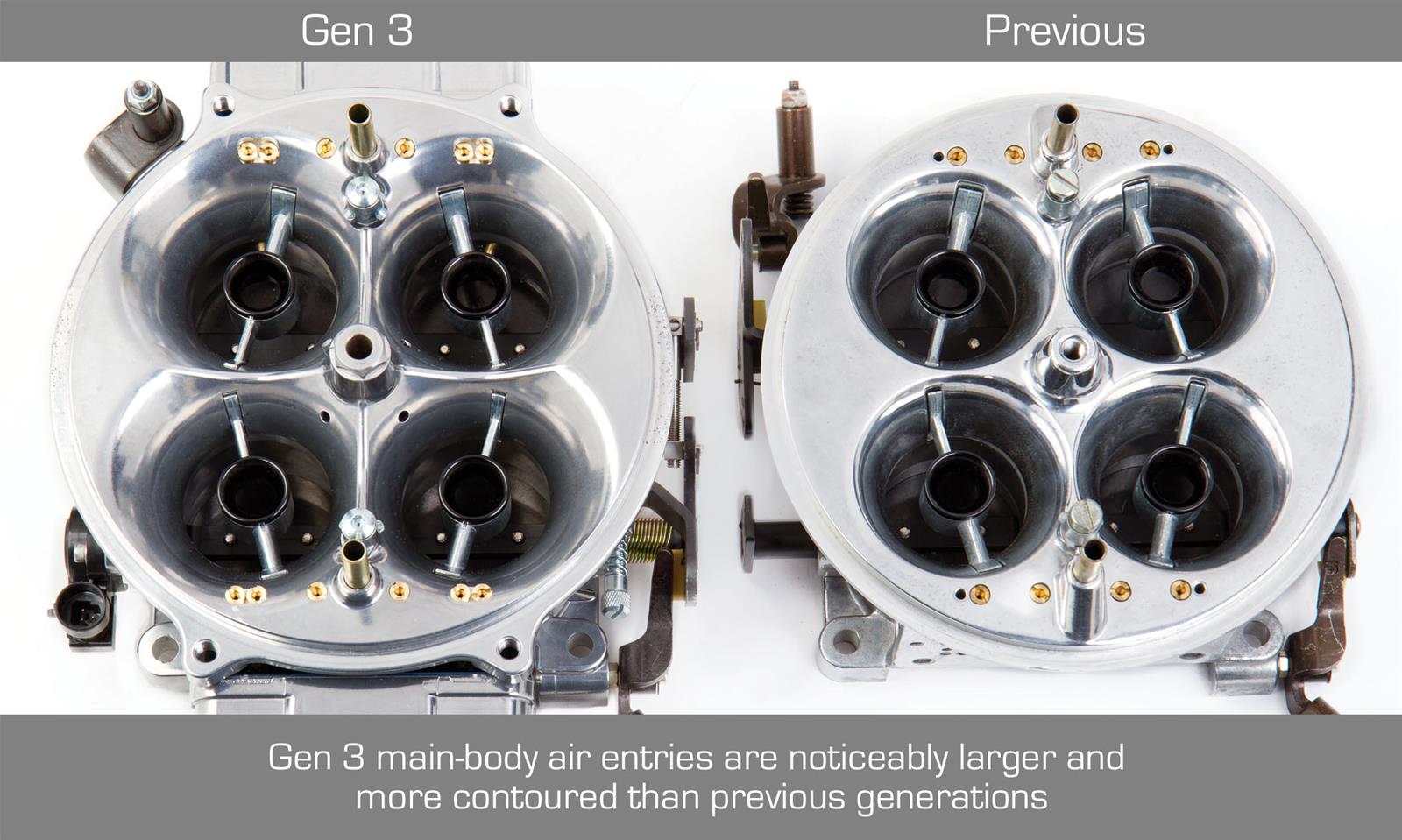

* Designed for larger radius air entries optimized using computational fluid dynamics (CFD) software to deliver smoother flow into fully machined, big-bore Venturi

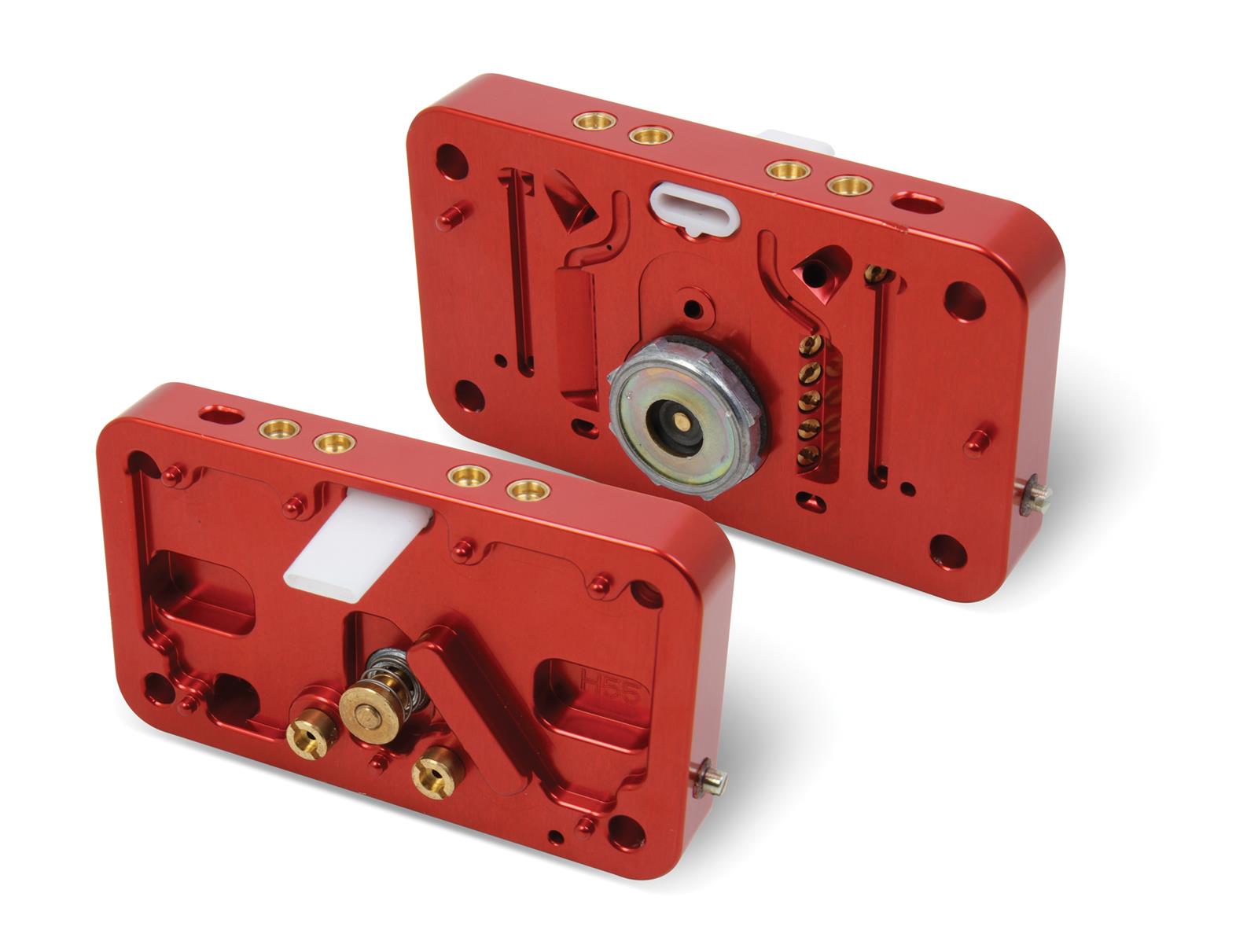

* Improved 6061-T6 billet aluminum metering blocks offering improved durability, true gasket sealing (sealing surface integrity), and brightly dipped anodizing for good looks and corrosion protection
* Power valve channel restrictors are now machined lower in the metering blocks for improved fuel delivery to the power valve circuit
* Accelerator pump channel internally drilled, eliminating the need for an external plug,
* Excess material removed for increased fuel capacity

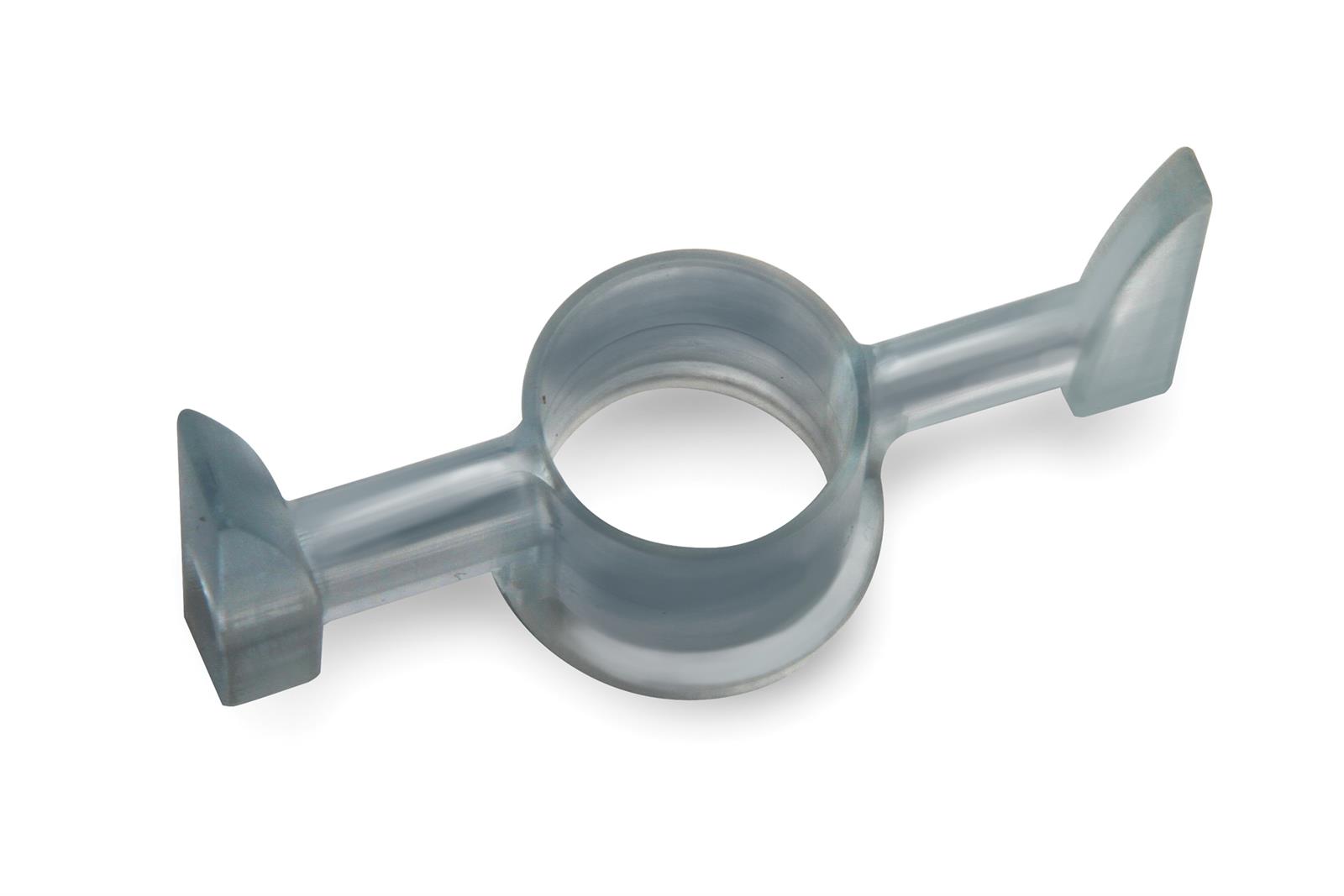

* Snap-in-place bowl vent whistle makes removal and/or replacement easier

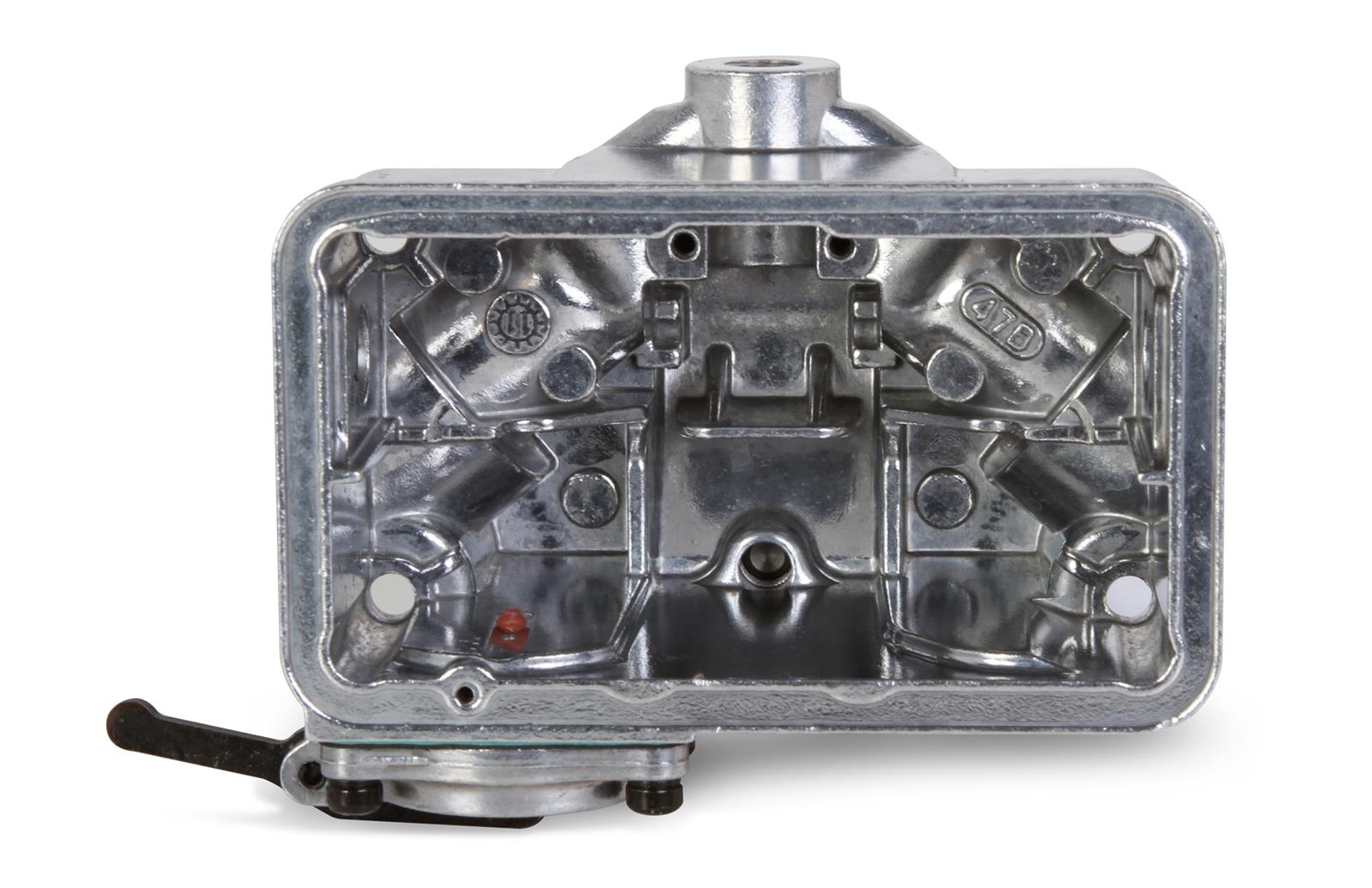

* 20 percent more fuel capacity vs. traditional V-bowl, eliminating fuel starvation and providing consistent air/fuel ratios
* Fuel shelf is positioned below the needle and seat to minimize fuel aeration and promote more consistent metering
* Fuel trough designed into the floor of the bowl to route fuel flow directly to the jets and assist in keeping them covered by fuel

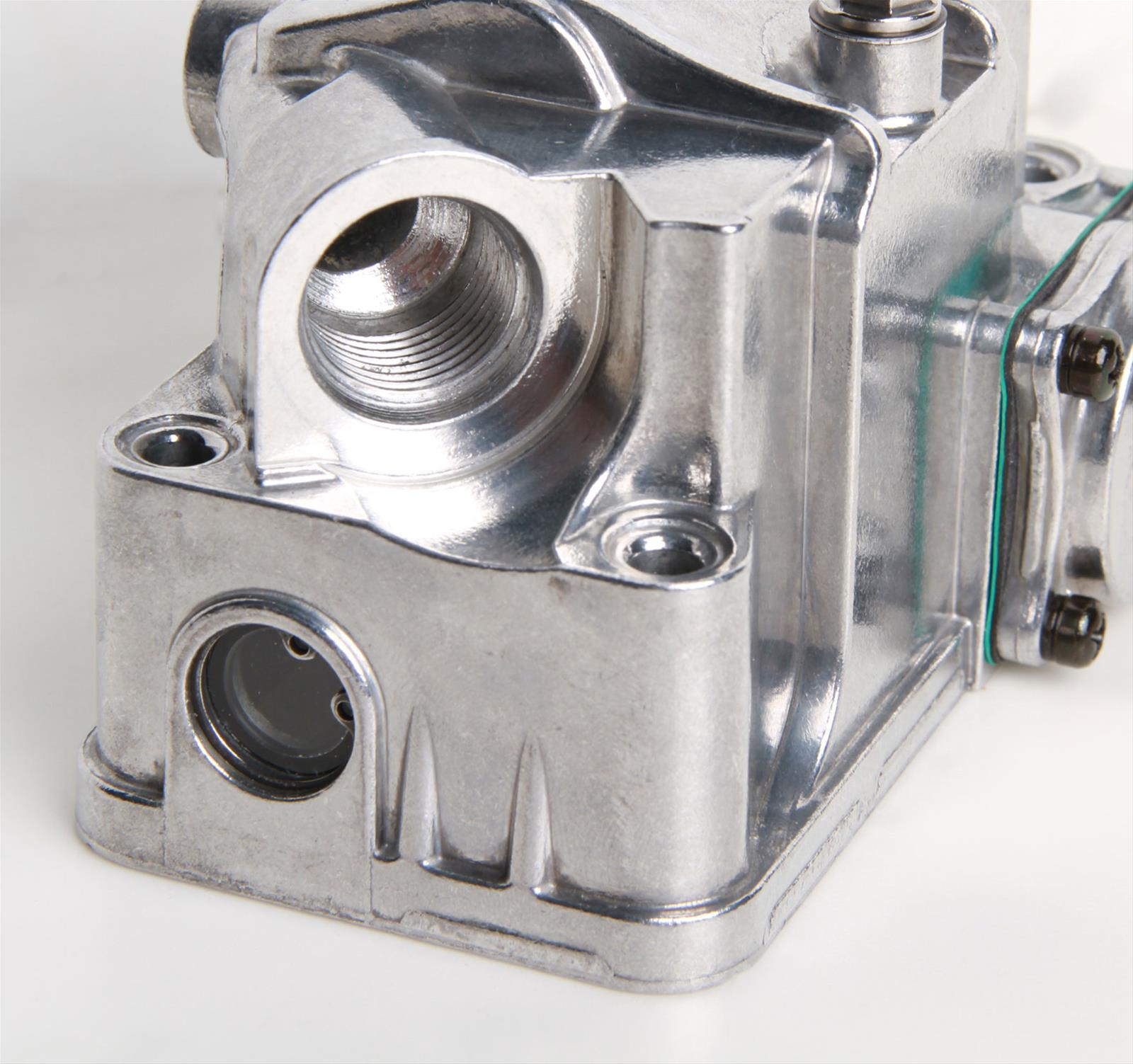

* Clear sight windows on both sides of the bowls for easy and safe fuel level adjustments

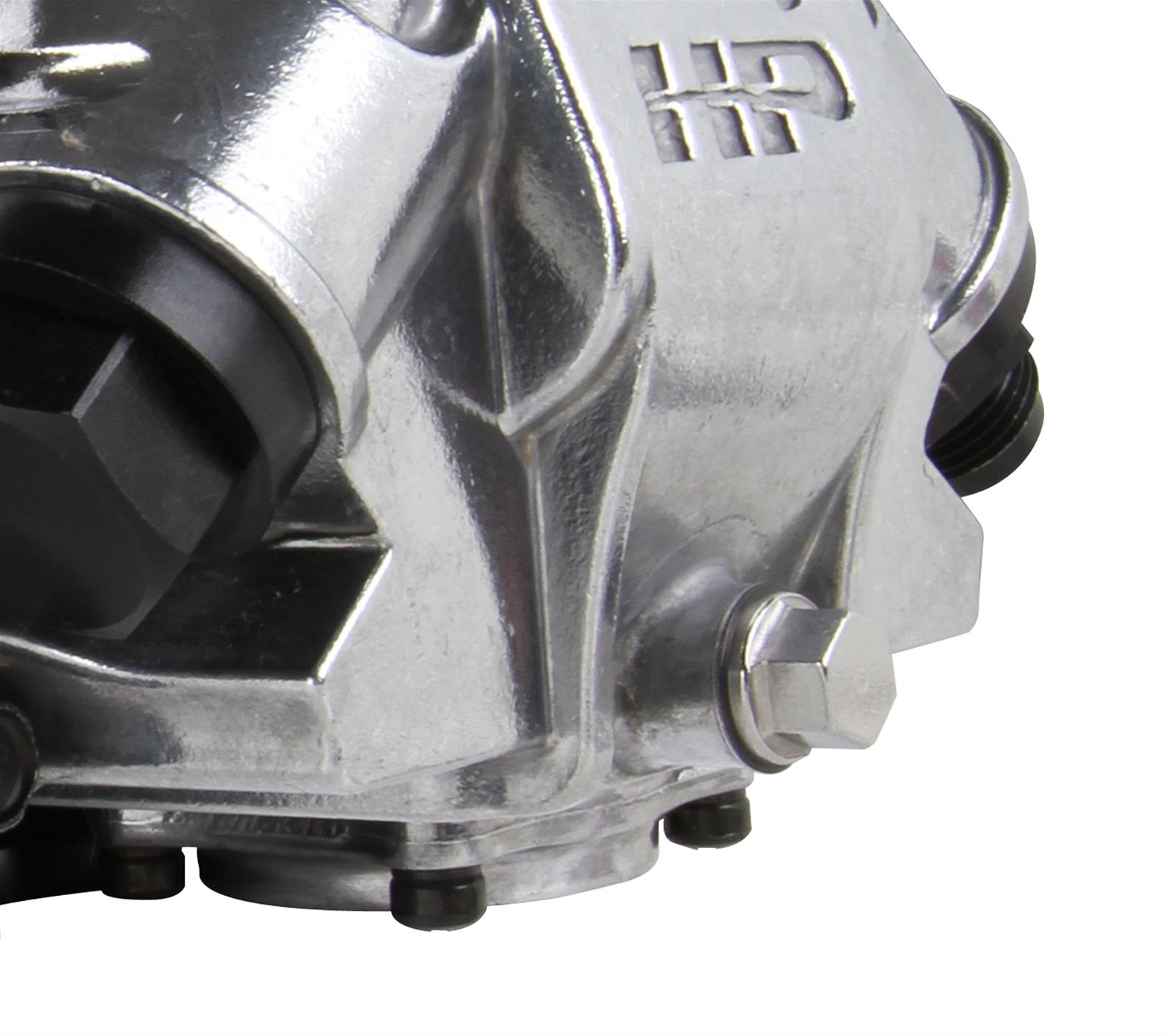

* Built-in drain plug in the front center of the bowl provides easy access to empty the bowl (contoured entry provides smooth fuel flow directly to the needle and seat)
* Designed for use on drag race, Pro Street, or any high-horsepower engines
* All-aluminum construction saves 3.8 lbs. over original models (28 percent weight savings)
* Dual 50cc accelerator pumpsBrand: Holley
Manufacturer's Part Number: 0-80902BK
Part Type: Carburetors
Product Line: Holley Gen 3 Ultra Dominator Carburetors
HP Direct Part Number: HLY-0-80902BK
UPC: 090127684412
CFM: 1,050
Fuel Category: Gasoline
Remanufactured: No
Number of Barrels: 4
Carburetor Flange: Dominator
Choke: None
Secondary Type: Mechanical
Fuel Inlet: Dual
Primary Jet Size: 84
Primary Power Valve (Hg): 5.5 Hg
Primary Discharge Nozzle Size (in.): 0.035 in.
Secondary Jet Size: 94
Secondary Discharge Nozzle Size (in.): 0.035 in.
Carburetor Color: Tumble polished
Ford Kickdown: No
Booster Type: Annular
Throttle Linkage Type: Universal
Carburetor Height (in.): 3.500 in.
Quantity: Sold individually.
Notes: 2-Circuit metering, 1.690 in. venturi, 2.00 in. throttle bore. -8AN O-ring fuel bowl inlet threads. Includes -8AN O-ring to -6AN male fuel inlet adapters and -8AN plug. To use the Holley dual feed fuel line, the bowl inlet fittings must be replaced with -8AN inlet fittings, see the “Suggested Parts” tab. Can be plumbed from either side. Holley Ultra Dominator race carburetors are for race applications only and are not designed or suggested for street use. Ultra Dominator carburetors do not provide attachment points for street transmissions, vacuum outlets or stock throttle linkage and cables.
