Description

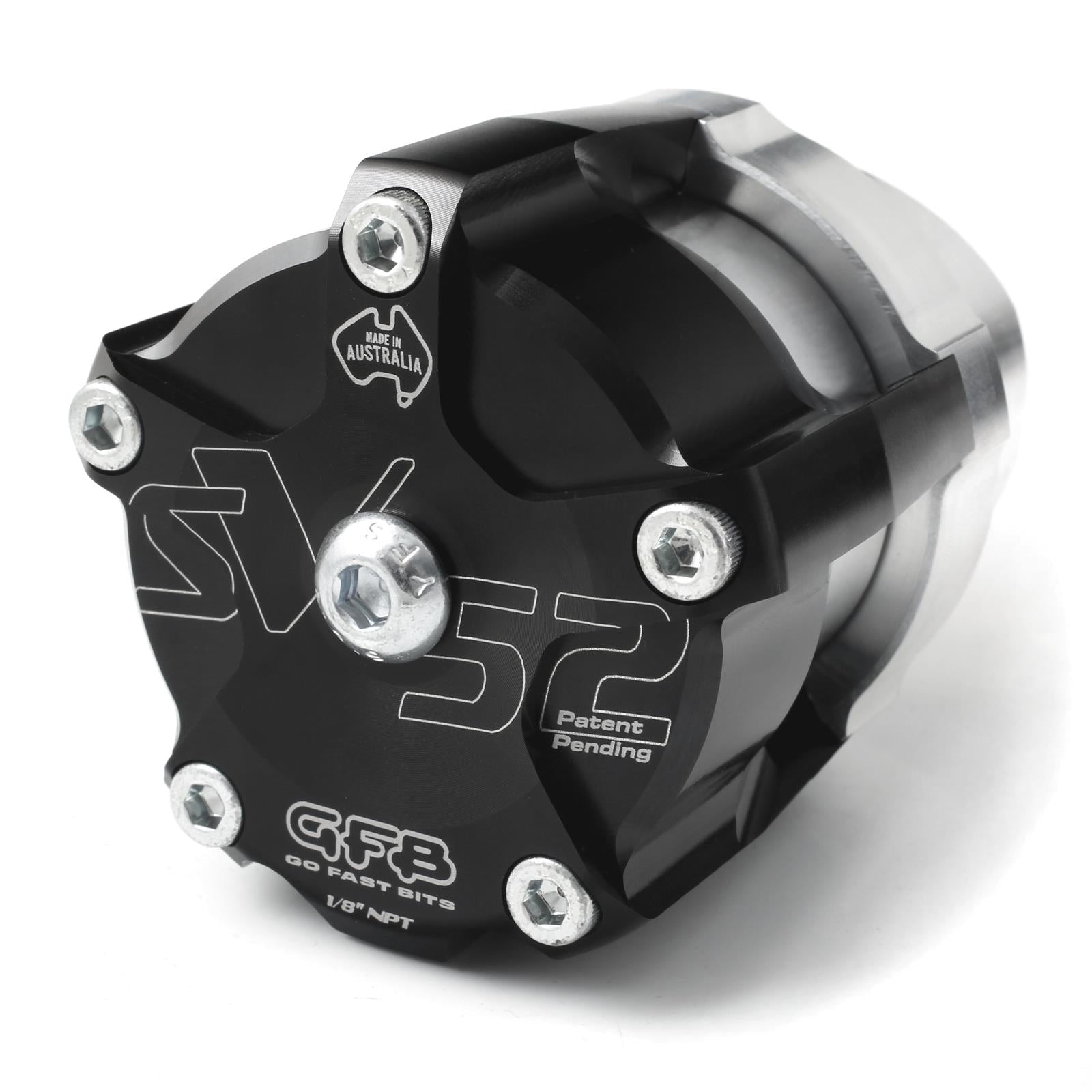

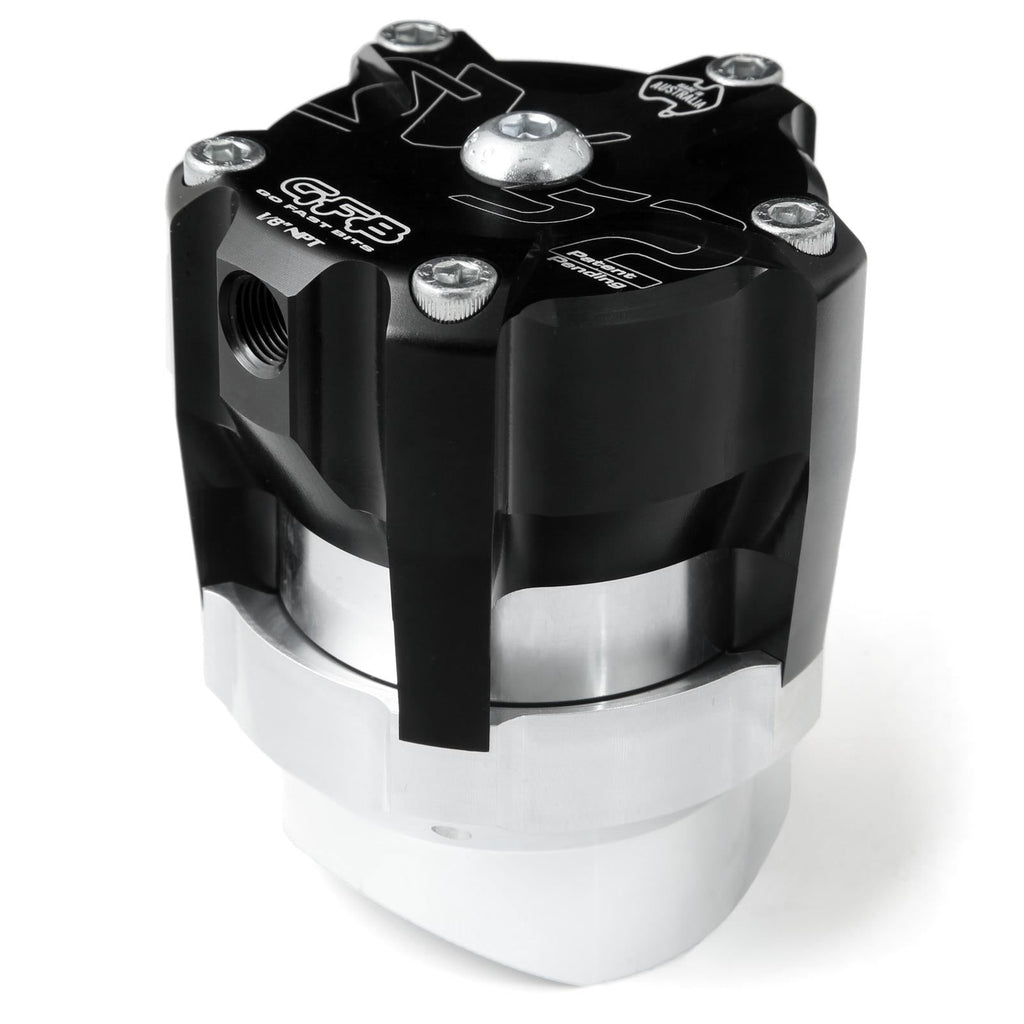

Go Fast Bits SV52 blow-off valves are more compact and offer more flow.
Standing only 86mm tall including the weld-on adapter, the SV52s have an astonishing boost pressure rating of 300 psi, and feature a monobloc body design, CNC-machined from a single aluminum billet that ensures strength without adding unnecessary bulk. They are designed with an anodized piston bore that creates an extremely hard and low-friction surface on which the single-piece aluminum 52.5mm piston glides and will continue to do so over countless cycles. The piston also provides strength and reliability, something a diaphragm cannot match in a high-boost BOV environment.
Go Fast Bits SV52 blow-off valves include two springs, plus a spring pre-load adjustment system, so you can dial it in for optimum throttle response and boost recovery after gearshift, without resorting to the costly hit-and-miss approach of purchasing extra springs.
Brand: Go Fast Bits
Manufacturer's Part Number: T9052
Part Type: Blow-Off Valves
Product Line: Go Fast Bits SV52 Blow-Off Valves
HP Direct Part Number: GFS-T9052
UPC: 9328022009803
Blow-Off Valve Type: Vent to atmosphere
Blow-Off Valve Mounting: 50mm V-band
Boost Range (psi): 0-300 psi
Blow-Off Valve Material: Aluminum
Blow-Off Valve Color: Black
Adjustable: Yes
Aluminum Flange Included: Yes
Steel Flange Included: No
Quantity: Sold individually.
Notes: Suits engines with manifold vacuum ranging from 5-22 in. Hg (17-74.5kPa, 2.5-11 psi vacuum). Includes weld-on adaptor. Includes (2) two springs.
Standing only 86mm tall including the weld-on adapter, the SV52s have an astonishing boost pressure rating of 300 psi, and feature a monobloc body design, CNC-machined from a single aluminum billet that ensures strength without adding unnecessary bulk. They are designed with an anodized piston bore that creates an extremely hard and low-friction surface on which the single-piece aluminum 52.5mm piston glides and will continue to do so over countless cycles. The piston also provides strength and reliability, something a diaphragm cannot match in a high-boost BOV environment.
Go Fast Bits SV52 blow-off valves include two springs, plus a spring pre-load adjustment system, so you can dial it in for optimum throttle response and boost recovery after gearshift, without resorting to the costly hit-and-miss approach of purchasing extra springs.
Brand: Go Fast Bits
Manufacturer's Part Number: T9052
Part Type: Blow-Off Valves
Product Line: Go Fast Bits SV52 Blow-Off Valves
HP Direct Part Number: GFS-T9052
UPC: 9328022009803
Blow-Off Valve Type: Vent to atmosphere
Blow-Off Valve Mounting: 50mm V-band
Boost Range (psi): 0-300 psi
Blow-Off Valve Material: Aluminum
Blow-Off Valve Color: Black
Adjustable: Yes
Aluminum Flange Included: Yes
Steel Flange Included: No
Quantity: Sold individually.
Notes: Suits engines with manifold vacuum ranging from 5-22 in. Hg (17-74.5kPa, 2.5-11 psi vacuum). Includes weld-on adaptor. Includes (2) two springs.
