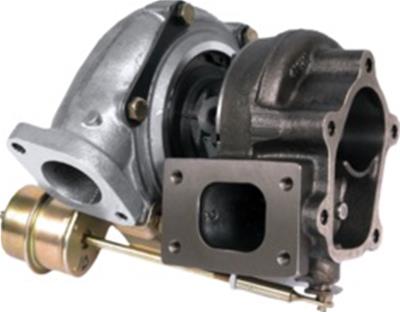

Garrett GT Series Turbochargers 836026-5005S

Garrett GT Series turbochargers pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and in a range of sizes. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are also available. Turbine kits are offered in open volute and twin scroll, as well as a variety of A/R and flange configurations. For any performance need, Garrett GT Series turbochargers have you covered.Brand: Garrett Advancing Motion
Manufacturer's Part Number: 836026-5005S
Part Type: Turbochargers
Product Line: Garrett GT Series Turbochargers
HP Direct Part Number: GAP-836026-5005S
Turbine Housing Inlet Flange: T25
Turbine Housing Outlet Flange: 5 Bolt
Turbocharger Style: GT2860R-5
Wastegate Location: Internal
Compressor Wheel Inducer Size: 47.00mm
Turbine Wheel Exducer Size: 47.00mm
Compressor Wheel Trim: 62.00
Turbine Wheel Trim: 76.00
Compressor Housing A/R Ratio: 0.60
Turbine Housing A/R Ratio: 0.64
Turbocharger Bearing Style: Ceramic ball bearing
Compressor Wheel Construction: Cast aluminum
Volute Type: Open
Turbocharger Cooling: Oil/Water
Compressor Housing Included: Yes
Compressor Housing Material: Aluminum
Compressor Housing Color: Natural
Turbine Housing Included: Yes
Turbine Housing Material: Cast iron
Compressor Outlet Style: 2 bolt
Ported Compressor Housing: No
Wastegate Actuator Included: Yes
Exhaust Adapter Included: No
Intake Adapter Included: No
Oil Adapters Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Skyline GTR Ball Bearing Upgrade/Replacement, More responsive and quicker to spool than the stock T25 turbos on the RB26DETT, but still with an improvement in top end pull. 650hp is possible on these turbos (with the supporting modifications per application).
