Description

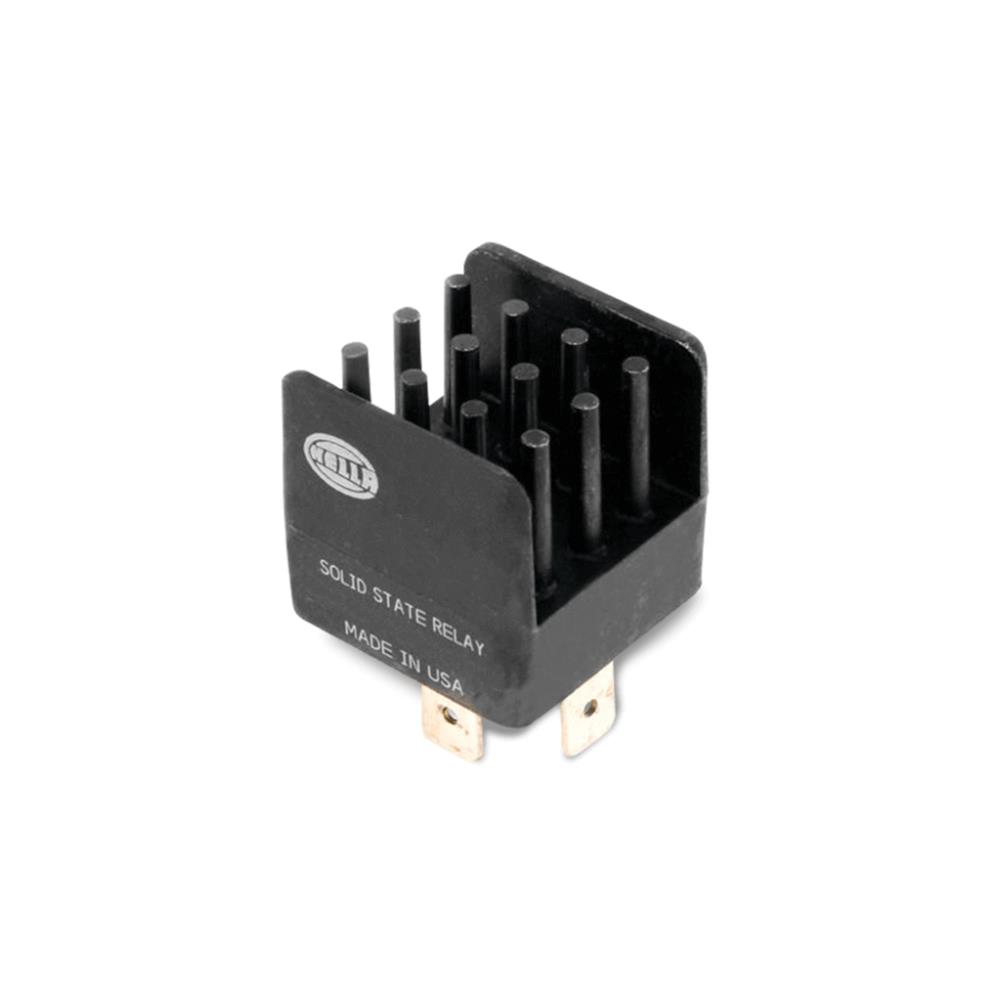

FuelTech's staging/brake control solid state relays provide fast switching speed, which is perfect for PWM control and for use as a normal relay.
Solid state relay features:
* Power 12/16 V to solenoid or actuator
* Available with or without sealed relay holder
* Can be used on the following: FT600/FT550/FT500/FT500LITE/FT450 built-in staging control
* Can be used on the following: FT600/FT550/FT500/FT500LITE/FT450 built-in brake control
* No mechanical interior parts
* Offers silent operation
* Nominal 20A/Max 30A
* PWM frequency: 0-1000Hz
Electrical connections:
-- 30 – switched 12 V—use fuse
-- 85 – not connected
-- 86 – Trigger—FT auxiliary output (activated when switched to ground)
-- 87 - output for load—normally open contact: 20ABrand: FuelTech
Manufacturer's Part Number: 3020004086
Part Type: Relays
Product Line: FuelTech Staging/Brake Control Solid State Relays
HP Direct Part Number: FCH-3020004086
UPC: 760687179504
Amperage Rating: 20 amps
Volts: 12 V
Pole: Single
Terminal Type: Blade
Relay Terminals: 4
Wiring Harness Included: No
Quantity: Sold individually.
Solid state relay features:
* Power 12/16 V to solenoid or actuator
* Available with or without sealed relay holder
* Can be used on the following: FT600/FT550/FT500/FT500LITE/FT450 built-in staging control
* Can be used on the following: FT600/FT550/FT500/FT500LITE/FT450 built-in brake control
* No mechanical interior parts
* Offers silent operation
* Nominal 20A/Max 30A
* PWM frequency: 0-1000Hz
Electrical connections:
-- 30 – switched 12 V—use fuse
-- 85 – not connected
-- 86 – Trigger—FT auxiliary output (activated when switched to ground)
-- 87 - output for load—normally open contact: 20ABrand: FuelTech
Manufacturer's Part Number: 3020004086
Part Type: Relays
Product Line: FuelTech Staging/Brake Control Solid State Relays
HP Direct Part Number: FCH-3020004086
UPC: 760687179504
Amperage Rating: 20 amps
Volts: 12 V
Pole: Single
Terminal Type: Blade
Relay Terminals: 4
Wiring Harness Included: No
Quantity: Sold individually.
