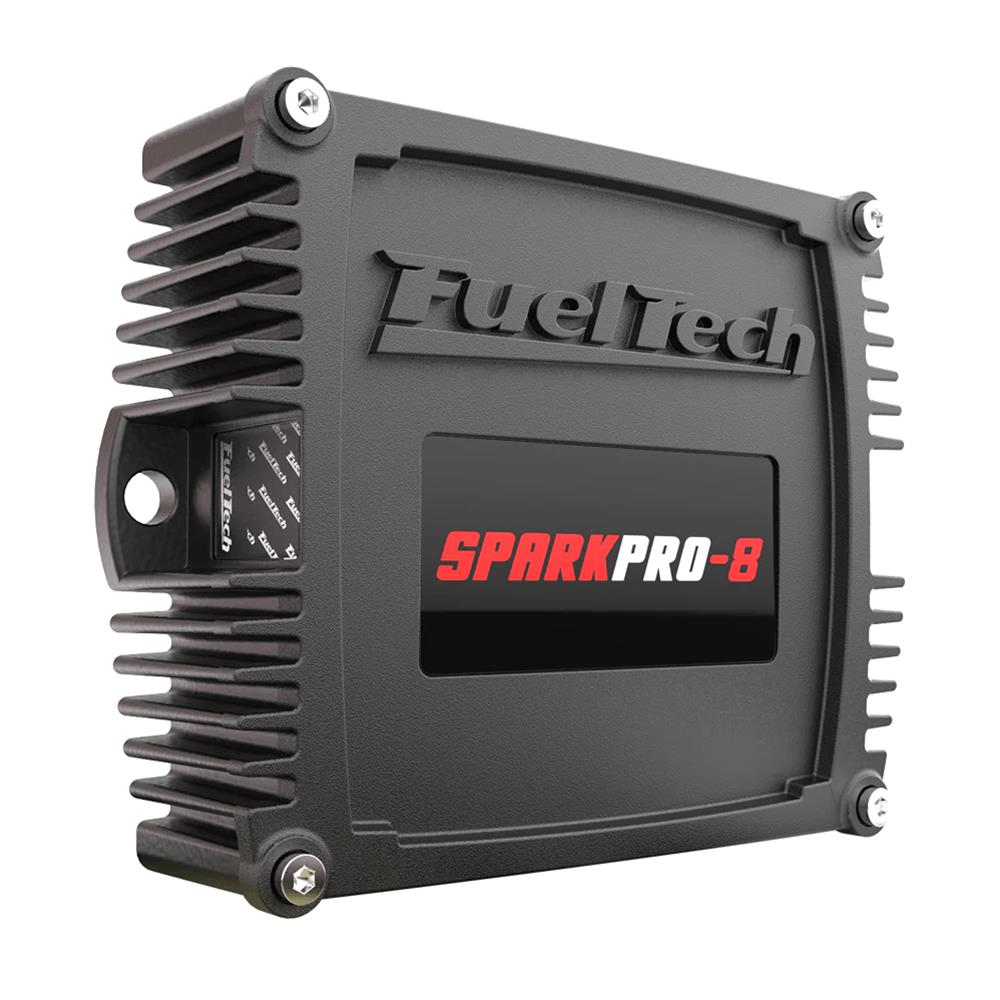

FuelTech SparkPRO Ignitions 3010003332

FuelTech SparkPRO ignitions are available in versions from one to eight ignition outputs. They feature high-energy inductive ignition to be used with ignition coils without igniter (dumb coils). The modules deliver high voltage at the coil's primary, up to 430 V.

Additional details:

* Each SparkPRO channel can be connected to only one coil at a time
* Compatible with any programmable ECU that has dwell control
* Cannot be used with stock ECU
* Dimensions: 115 x 90 x 33mm

Kit contents:

* One SparkPRO ignition
* One operation and installation guide
* One 6.5 ft. SparkPRO unterminated harness (optional)
* One FuelTech black carbon fiber stickerBrand: FuelTech
Manufacturer's Part Number: 3010003332
Part Type: Ignition Modules
Product Line: FuelTech SparkPRO Ignitions
HP Direct Part Number: FCH-3010003332
UPC: 7898633939247
Module Pin Quantity: 6
Wiring Harness Included: No
Quantity: Sold individually.
Notes: Ignition module has eight outputs. Wiring harness is sold separately. Ignition module is meant to be used with standard ignition coils without igniter. Can be used with any ECU that has dwell control.
