Description
FuelTech offers automotive relay holders for 4- or 5-pin mini ISO relays (regular 40 amp relays). They're the perfect relay connectors to use with the 40 amp relay with built-in fuse. Their crimp terminals are rated for high current and are the special spring pressure contact terminal to guarantee great contact even under vibration environment.

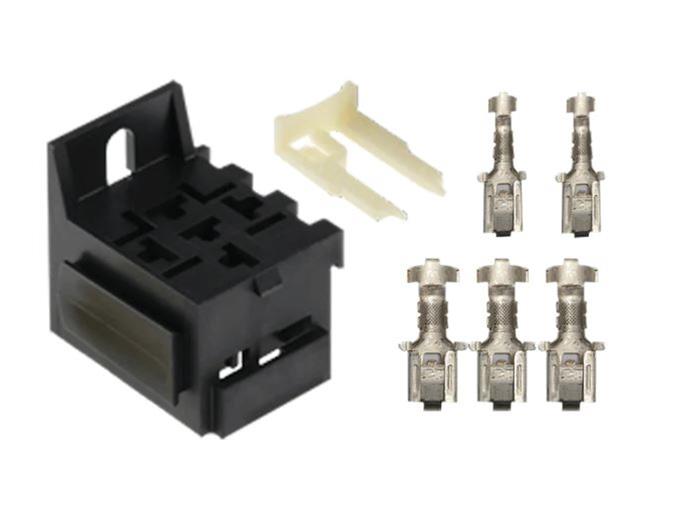

Kit includes:
* Housing with mounting flap to be mounted individually or can be interlocked
* 3 of the high current crimp terminals to be used on pin 30, 87 and 87a compatible with wire 3.3mm2 to 5.3mm2 (12AWG to 10AWG)
* 2 of the low current crimp terminals to be used on pins 85 and 86 compatible with wire 0.5mm2 to 0.8mm2 (20AWG to 18AWG)
Brand: FuelTech
Manufacturer's Part Number: 5011100383
Part Type: Wiring Connectors and Pigtails
Product Line: FuelTech Relay Connectors
HP Direct Part Number: FCH-5011100383
UPC: 810060860090
Connector Style: Connector and pins
General Connector Family: Bosch
Weather-Resistant: No
Pins Per Connector: 5
Connection Style: Female
Connector Color: Black
Quantity: Sold individually.
Connector Type: Female
Kit includes:
* Housing with mounting flap to be mounted individually or can be interlocked
* 3 of the high current crimp terminals to be used on pin 30, 87 and 87a compatible with wire 3.3mm2 to 5.3mm2 (12AWG to 10AWG)
* 2 of the low current crimp terminals to be used on pins 85 and 86 compatible with wire 0.5mm2 to 0.8mm2 (20AWG to 18AWG)
Brand: FuelTech
Manufacturer's Part Number: 5011100383
Part Type: Wiring Connectors and Pigtails
Product Line: FuelTech Relay Connectors
HP Direct Part Number: FCH-5011100383
UPC: 810060860090
Connector Style: Connector and pins
General Connector Family: Bosch
Weather-Resistant: No
Pins Per Connector: 5
Connection Style: Female
Connector Color: Black
Quantity: Sold individually.
Connector Type: Female
