Description

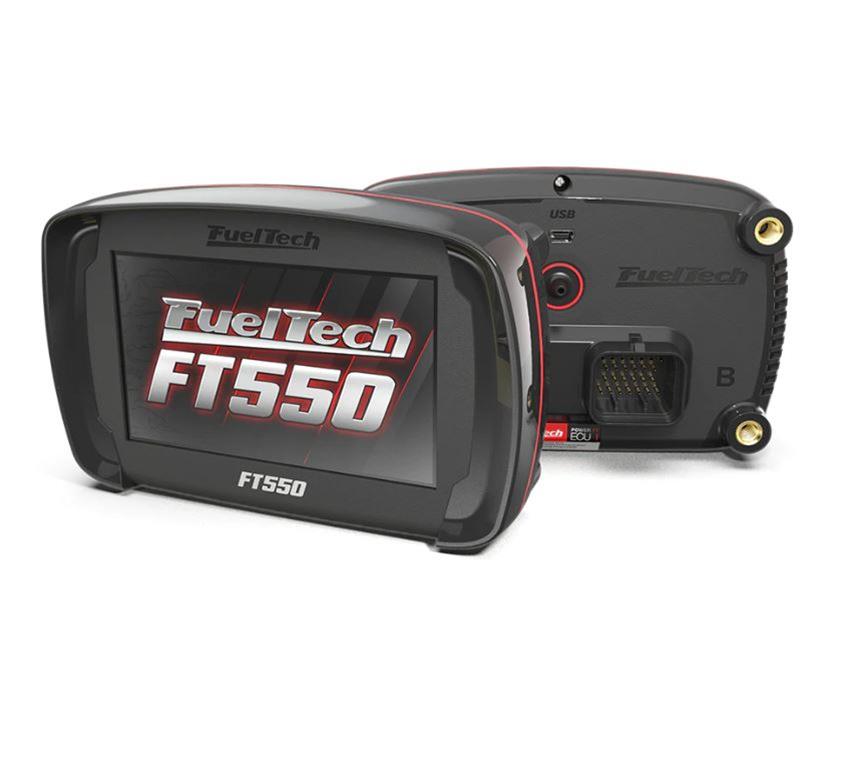

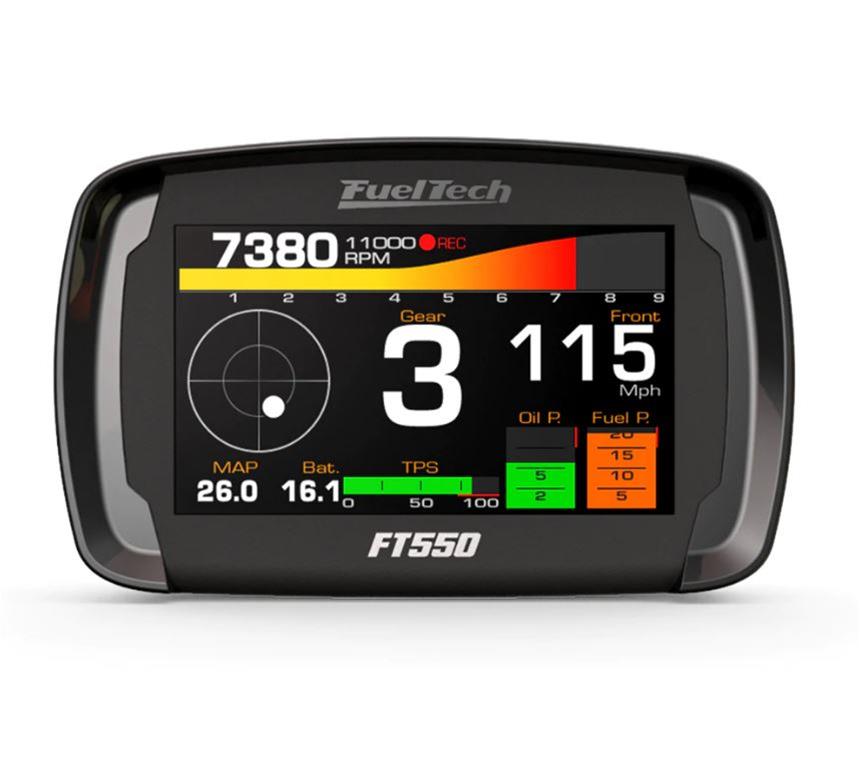

FuelTech PRO550 Gen II V8 complete plug-and-play harnesses are the best link between your FT550 or FT550LITE ECU and V8 engine. Each harness is designed to install a FuelTech FT550 on mostly any racing V8 application. It comes setup for eight EV1 injectors. The harnesses come pre-terminated to suit a V8 engine with all relays and fuses for a simple 3-wire battery hook-up and ignition power. They have a 37-pin firewall connector to make installation an easy task; and with the modular construction, adding individual coils is as easy as connecting add-on harnesses utilizing the built-in output connectors. Each connector has its own label; and the connectors and harness insulation is heat, moisture and oil-resistant.
Additional harness features:
* The harnesses have most of the engine sensors pre-wired: TPS, hall and VR crank trigger, hall and VR cam sync, fuel pressure, oil pressure, wastegate pressure, turbo back pressure, coolant and intake air temperature, driveshaft and more.
* They come pre-wired for 2x of FuelTech's EGT-4 CAN
* Can be used directly with a distributor-type ignition or with additional auxiliary coil harnesses to have coil per cylinder ignition, such as smart coils or the FuelTech FTSPARK CDI unit with an additional harness.
* This harness is set up for two nano wideband oxygen conditioners and two oxygen sensors. You can also use an additional adapter for a dual channel alcohol O2 with NTK O2 sensors (requires Bosch to NTK adapters).
* There is an "inputs" connector to custom wire up to five additional input channels for the engine or chassis data-logging (i.e. transbrake button, suspension travel sensors, input shaft RPM, staging button and much more).
* There are two additional "outputs" connectors to wire custom outputs like wastegate boost control solenoids, transbrake solenoid, dump and lockup valves, gear shift, nitrous stages and more.
CONTENTS OF PACKAGING:
* PRO550 GEN II V8 Complete Harness
* 8-Way connector kit
* 10-Way connector kit
* 12-way connector kit
* Operation and installation guide
Brand: FuelTech
Manufacturer's Part Number: 3026100191
Part Type: Fuel Injection System Wiring Harnesses
Product Line: FuelTech PRO550 Gen II V8 Complete Harnesses
HP Direct Part Number: FCH-3026100191
Fuel Injection Style: Multi-port/Direct injection
Quantity: Sold individually.
Additional harness features:
* The harnesses have most of the engine sensors pre-wired: TPS, hall and VR crank trigger, hall and VR cam sync, fuel pressure, oil pressure, wastegate pressure, turbo back pressure, coolant and intake air temperature, driveshaft and more.
* They come pre-wired for 2x of FuelTech's EGT-4 CAN
* Can be used directly with a distributor-type ignition or with additional auxiliary coil harnesses to have coil per cylinder ignition, such as smart coils or the FuelTech FTSPARK CDI unit with an additional harness.
* This harness is set up for two nano wideband oxygen conditioners and two oxygen sensors. You can also use an additional adapter for a dual channel alcohol O2 with NTK O2 sensors (requires Bosch to NTK adapters).
* There is an "inputs" connector to custom wire up to five additional input channels for the engine or chassis data-logging (i.e. transbrake button, suspension travel sensors, input shaft RPM, staging button and much more).
* There are two additional "outputs" connectors to wire custom outputs like wastegate boost control solenoids, transbrake solenoid, dump and lockup valves, gear shift, nitrous stages and more.
CONTENTS OF PACKAGING:
* PRO550 GEN II V8 Complete Harness
* 8-Way connector kit
* 10-Way connector kit
* 12-way connector kit
* Operation and installation guide
Brand: FuelTech
Manufacturer's Part Number: 3026100191
Part Type: Fuel Injection System Wiring Harnesses
Product Line: FuelTech PRO550 Gen II V8 Complete Harnesses
HP Direct Part Number: FCH-3026100191
Fuel Injection Style: Multi-port/Direct injection
Quantity: Sold individually.
