Description
FuelTech NanoPRO oxygen sensor conditioners have a new design, and with it they are able to condition and read five different models of wide band lambda O2 sensors:
* BOSCH LSU 4.2
* BOSCH LSU 4.9
* BOSCH LSU 5.2
* NTK lab grade sensor
* NTK wideband o2 sensor

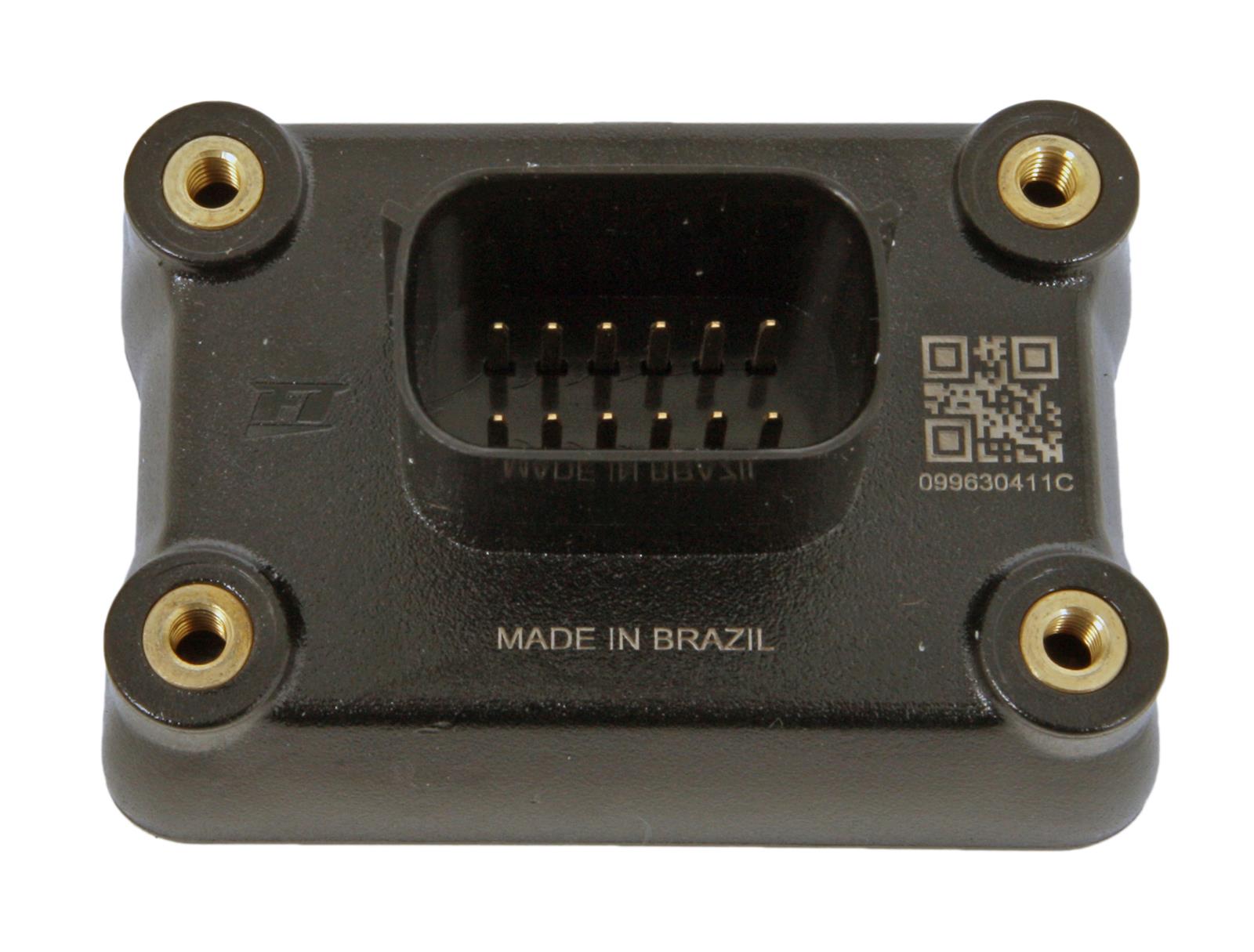

Way more than an O2 conditioner, NanoPRO has a 12-way connector with three wire groups. One of them has the connector for the O2 sensor, the second makes the CAN communication with PowerFT ECUs and the third is responsible for power and analog output. These 3-in-1 tools feature an extended wideband reading scale with advanced new hardware for fast and precise readings.
Additional features and benefits:
* Waterproof (IP67 certified with product harness connected)

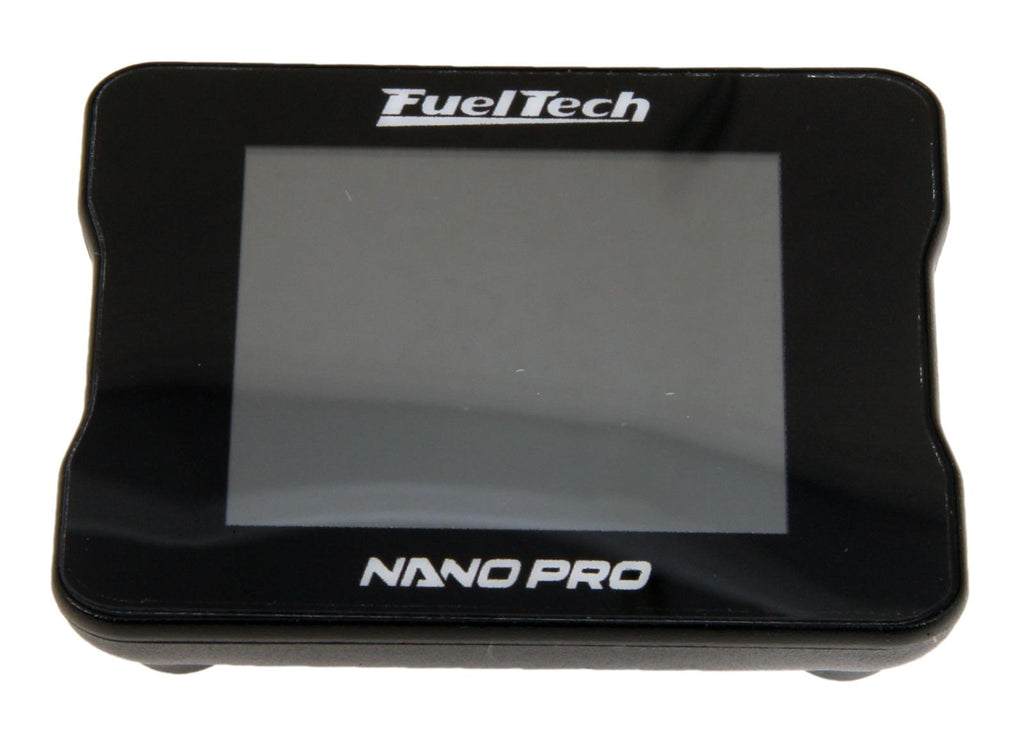

* 2 in. color display with resistive touch screen
* Compatible with 5 different models of O2 sensors
* Different fuels AFR or lambda display unit options-- reading range can reach values slightly lower or higher than 0.21 Lambda, depending on the manufacturing characteristics of the sensor:
-- Lambda (0.21 - 9.99)
-- AFR Methanol (1.35 - 64.6)
-- AFR Gasoline (3.09 - 146.6)
-- AFR Ethanol (1.89 – 89.9)
* CAN communication with PowerFT ECUs:
-- Second display gauge function that allows display valuable information like Oil Pressure, Fuel Pressure, Boost, RPM, Engine Temperature and much more coming from the FTCAN 2.0, with the possibility of configuring up to five custom screens
-- Switch Panel function, touch screen buttons or switches via CAN bus to the PowerFT ECU
* Three configurable O2 sensor heating modes: Normal, Fast, and Current Limited, as well as activated by engine rpm or temperature
* Advanced heater diagnostics in the PowerFT ECU datalogger
* 0 to 5 V analog output for connection with any data acquisition or programmable injection system.
* Maximum power supply voltage: 20 V
Brand: FuelTech
Manufacturer's Part Number: 3010009597
Part Type: Gauges
Product Line: FuelTech NanoPRO Oxygen Sensor Conditioners
HP Direct Part Number: FCH-3010009597
UPC: 7908074012291
Gauge Type: Air/Fuel ratio - Wideband
OEM Replacement: No
Gauge Style: Digital
Sending Unit: Electrical
Gauge Shape: Rectangular
Width (in.): 2.640 in.
Height (in.): 1.830 in.
Gauge Face Color: Black
Gauge Number Color: White
Bezel Color: Black
Illuminated: Yes
Memory Recall: No
Playback: No
Liquid-Filled: No
Shift Light Included: No
Tripometer: No
Sending Unit Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Wideband O2 sensor display and conditioner for Bosch LSU 4.2, 4.9, and 5.2 sensors along with NTK ZFAS-US and ZFAS A2 sensors. Can also be used as a second display gauge if using the Power FT ECUs.
* BOSCH LSU 4.2
* BOSCH LSU 4.9
* BOSCH LSU 5.2
* NTK lab grade sensor
* NTK wideband o2 sensor
Way more than an O2 conditioner, NanoPRO has a 12-way connector with three wire groups. One of them has the connector for the O2 sensor, the second makes the CAN communication with PowerFT ECUs and the third is responsible for power and analog output. These 3-in-1 tools feature an extended wideband reading scale with advanced new hardware for fast and precise readings.
Additional features and benefits:
* Waterproof (IP67 certified with product harness connected)
* 2 in. color display with resistive touch screen
* Compatible with 5 different models of O2 sensors
* Different fuels AFR or lambda display unit options-- reading range can reach values slightly lower or higher than 0.21 Lambda, depending on the manufacturing characteristics of the sensor:
-- Lambda (0.21 - 9.99)
-- AFR Methanol (1.35 - 64.6)
-- AFR Gasoline (3.09 - 146.6)
-- AFR Ethanol (1.89 – 89.9)
* CAN communication with PowerFT ECUs:
-- Second display gauge function that allows display valuable information like Oil Pressure, Fuel Pressure, Boost, RPM, Engine Temperature and much more coming from the FTCAN 2.0, with the possibility of configuring up to five custom screens
-- Switch Panel function, touch screen buttons or switches via CAN bus to the PowerFT ECU
* Three configurable O2 sensor heating modes: Normal, Fast, and Current Limited, as well as activated by engine rpm or temperature
* Advanced heater diagnostics in the PowerFT ECU datalogger
* 0 to 5 V analog output for connection with any data acquisition or programmable injection system.
* Maximum power supply voltage: 20 V
Brand: FuelTech
Manufacturer's Part Number: 3010009597
Part Type: Gauges
Product Line: FuelTech NanoPRO Oxygen Sensor Conditioners
HP Direct Part Number: FCH-3010009597
UPC: 7908074012291
Gauge Type: Air/Fuel ratio - Wideband
OEM Replacement: No
Gauge Style: Digital
Sending Unit: Electrical
Gauge Shape: Rectangular
Width (in.): 2.640 in.
Height (in.): 1.830 in.
Gauge Face Color: Black
Gauge Number Color: White
Bezel Color: Black
Illuminated: Yes
Memory Recall: No
Playback: No
Liquid-Filled: No
Shift Light Included: No
Tripometer: No
Sending Unit Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Wideband O2 sensor display and conditioner for Bosch LSU 4.2, 4.9, and 5.2 sensors along with NTK ZFAS-US and ZFAS A2 sensors. Can also be used as a second display gauge if using the Power FT ECUs.
