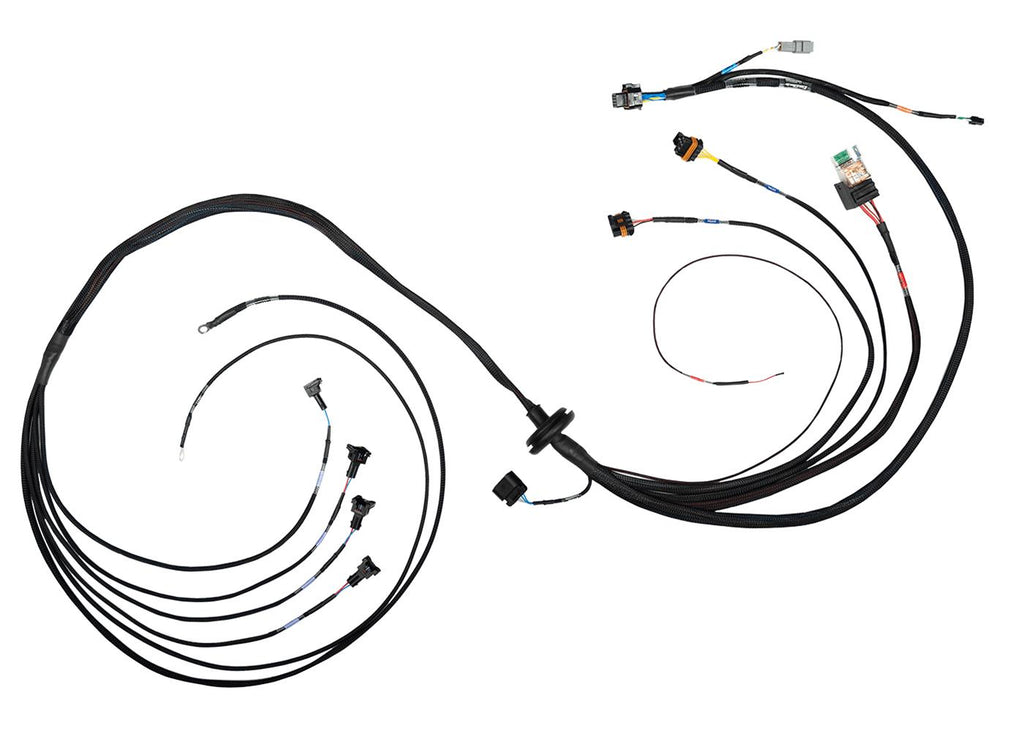

FuelTech FT550 4-Cylinder Universal B Expansion Harnesses 2002006600

FuelTech FT550 4-cylinder universal B expansion harnesses complement FuelTech's universal 4-cylinder A harness with the options to control up to eight injectors staged sequentially, have direct connection for inbuilt gear controller, and the additions to inputs and outputs. The harnesses come with a relay with a built-in fuse for power supply to the extra four injectors. The injectors are to be of high impedance only. FuelTech's universal 4-cylinder B harness has a label for each connector and the insulation is heat, moisture, and oil-resistant.

Connectors:

* FT550 (connector B)
* Four EV1 injectors (for high impedance injectors only)
* FT CAN B connector
* GearController sensor connector
* Extra INPUTS connector to custom wire up to five additional input channels for the engine or chassis datalogging--mating connector kit included
* Extra OUTPUTS connector to custom wire up to eight additional outputs--mating connector kit included
* Relay with fuse for injectors
Brand: FuelTech
Manufacturer's Part Number: 2002006600
Part Type: Wiring Harnesses
Product Line: FuelTech FT550 4-Cylinder Universal B Expansion Harnesses
HP Direct Part Number: FCH-2002006600
UPC: 7908074004159
Fuse Block Included: No
Quantity: Sold individually.
Notes: This harness is only compatible with the FT550 ECU and must be used along with FT450/550 4 cylinder universal A harness.
