Description

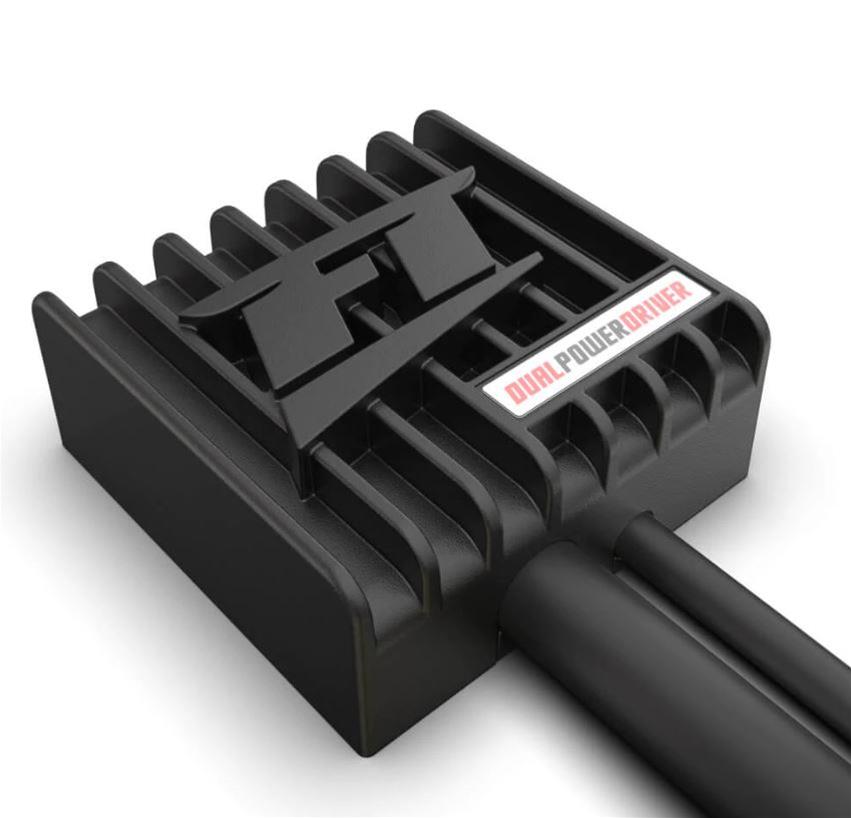

The FuelTech FT dual power drivers have two half bridge outputs that allows the activation of up to 25A current. With two half bridge outputs the DPD can drive a single motor in two directions, or two motors in a single direction. These units are able to drive high-speed PWM (using PWM ECU output). The robust hardware brings very low delay on activation, allowing the use of controls that use high-speed PWM signal.
Tech specs:
* Power: 9 V to 30 V
* Max outputs current (total): 25A
* Peak current: 100A to 10ms
* Operating voltage: 9 V to 30 V
* Max operating frequency: 25KHz @ 30 V
* Input trigger level Low: <1.3 V
* Input trigger level High: >1.6 V
* Switching delay: high-to-low: 5.6 microseconds; low-to-high: 6 microsecondsBrand: FuelTech
Manufacturer's Part Number: 3010008282
Part Type: Data Acquisition Components
Product Line: FuelTech FT Dual Power Drivers
HP Direct Part Number: FCH-3010008282
UPC: 7908074006658
Data Acquisition Component Type: Power driver
Quantity: Sold individually.
Tech specs:
* Power: 9 V to 30 V
* Max outputs current (total): 25A
* Peak current: 100A to 10ms
* Operating voltage: 9 V to 30 V
* Max operating frequency: 25KHz @ 30 V
* Input trigger level Low: <1.3 V
* Input trigger level High: >1.6 V
* Switching delay: high-to-low: 5.6 microseconds; low-to-high: 6 microsecondsBrand: FuelTech
Manufacturer's Part Number: 3010008282
Part Type: Data Acquisition Components
Product Line: FuelTech FT Dual Power Drivers
HP Direct Part Number: FCH-3010008282
UPC: 7908074006658
Data Acquisition Component Type: Power driver
Quantity: Sold individually.
