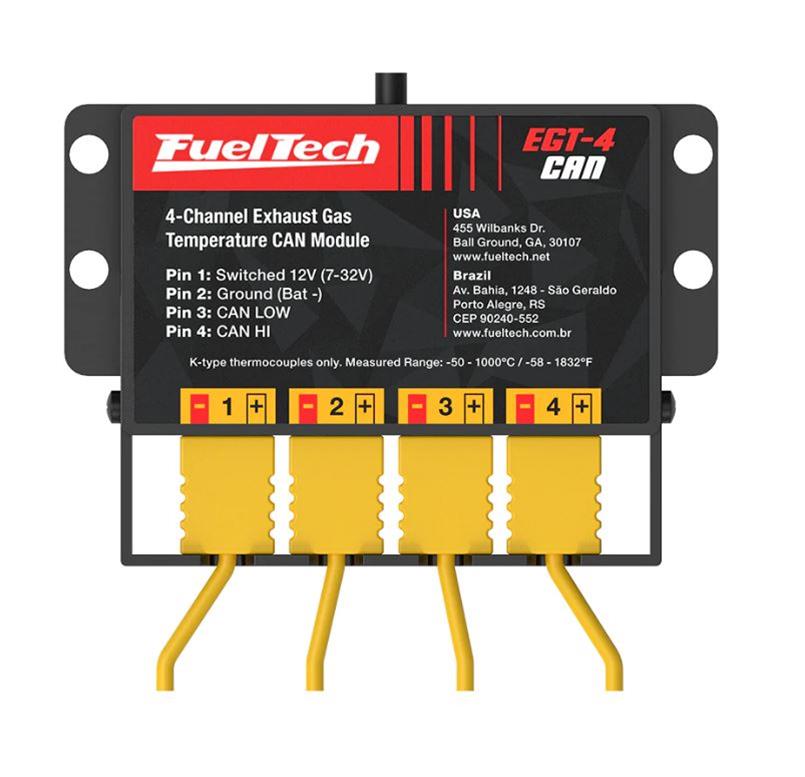

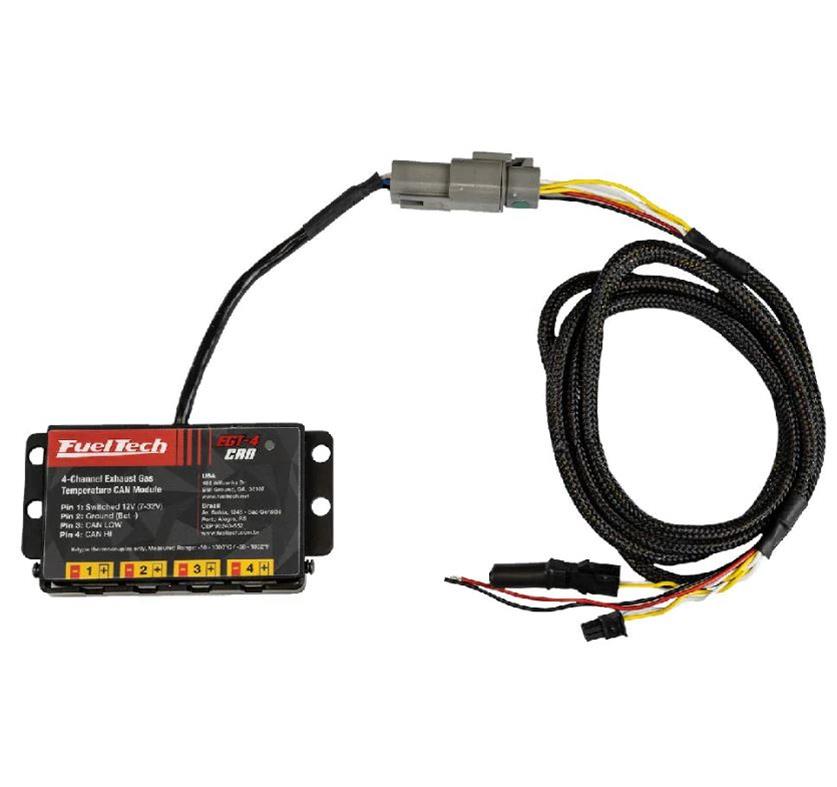

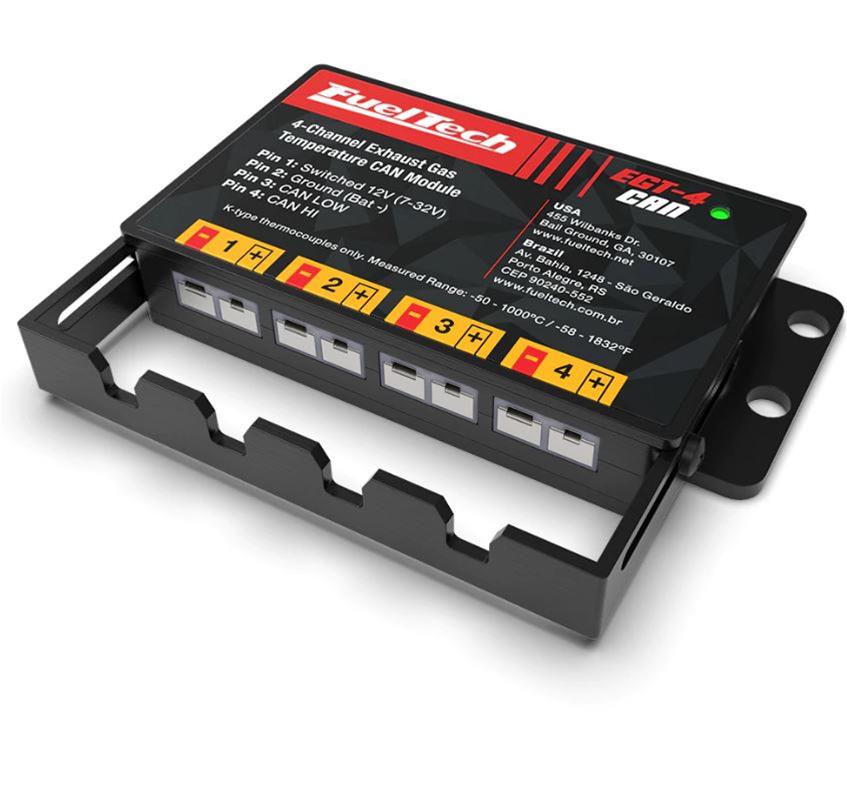

FuelTech EGT-4 CAN Conditioners 5022007368

FuelTech EGT-4 CAN conditioners are compatible with any Type K thermocouple (grounded junction or not). They feature a 4-channel signal conditioner with CAN bus communication for PowerFT ECUs that can be used to read EGTs, CHTs, oil, air, water or any other temperature using a Type K thermocouple. These units work as an input expander for PowerFT ECUs, freeing up four white input channels to be used for other purposes. With the possibility to use up to four EGT-4 modules in the same installation, as many as 16 different channels will be available for all sorts of data acquisition.

PACKAGES AVAILABLE:

* V8 / 2 units, harnesses and 8 sensors:
-- with 2 harnesses
-- 2 of each 42 in./36 in./30 in./24 in. Thermocouple sensors included
-- Add second EGT-4 CAN unit

* 6 cylinder / 2 units, harnesses and 6 sensors:
-- with 2 harnesses
-- 48 in./42 in./36 in./30 in./24 in./18 in. Thermocouple sensors included
-- Add second EGT-4 CAN unit

* 4 cylinder / harness and 4 sensors:
-- with harness
-- 42 in./36 in./30 in./24 in. Thermocouple sensors included

* 4 rotor / harness and 4 sensors:
-- with harness
-- 4 of the 36 in. Thermocouple sensors included

* 3 rotor / harness and 3 sensors:
-- with harness
-- 3 of the 36 in. Thermocouple sensors included

* 2 rotor / harness and 2 sensors:
-- with harness
-- 2 of the 36 in. Thermocouple sensors included
Brand: FuelTech
Manufacturer's Part Number: 5022007368
Part Type: Data Acquisition
Product Line: FuelTech EGT-4 CAN Conditioners
HP Direct Part Number: FCH-5022007368
UPC: 7908074004517
Quantity: Sold individually.
Notes: Does not include harness.
