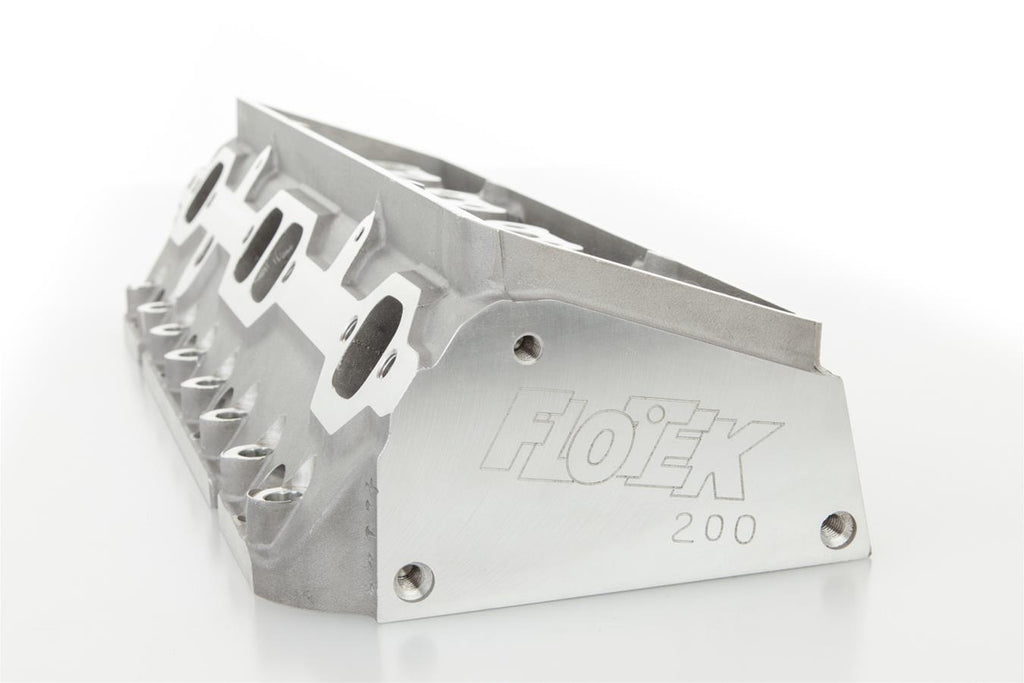

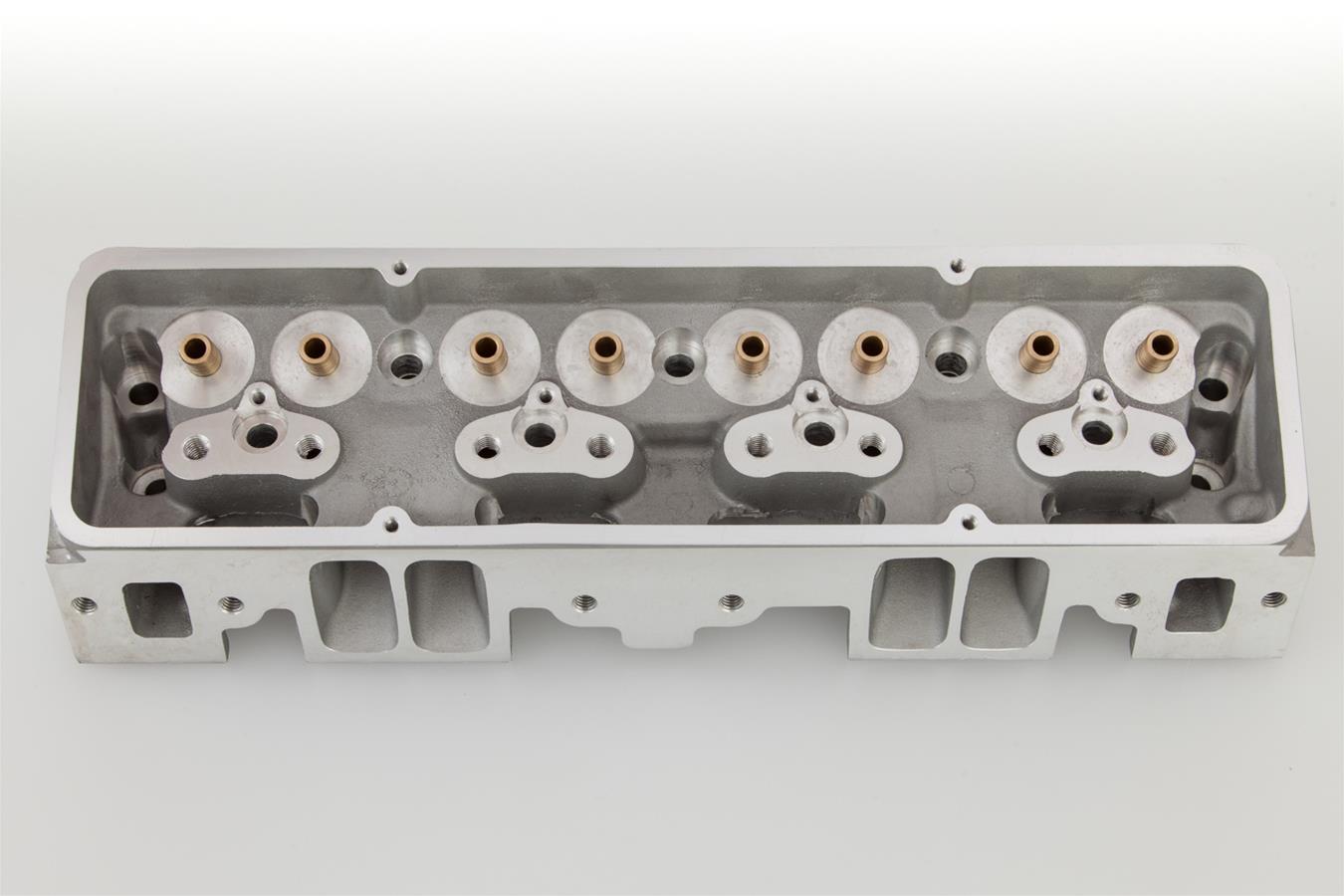

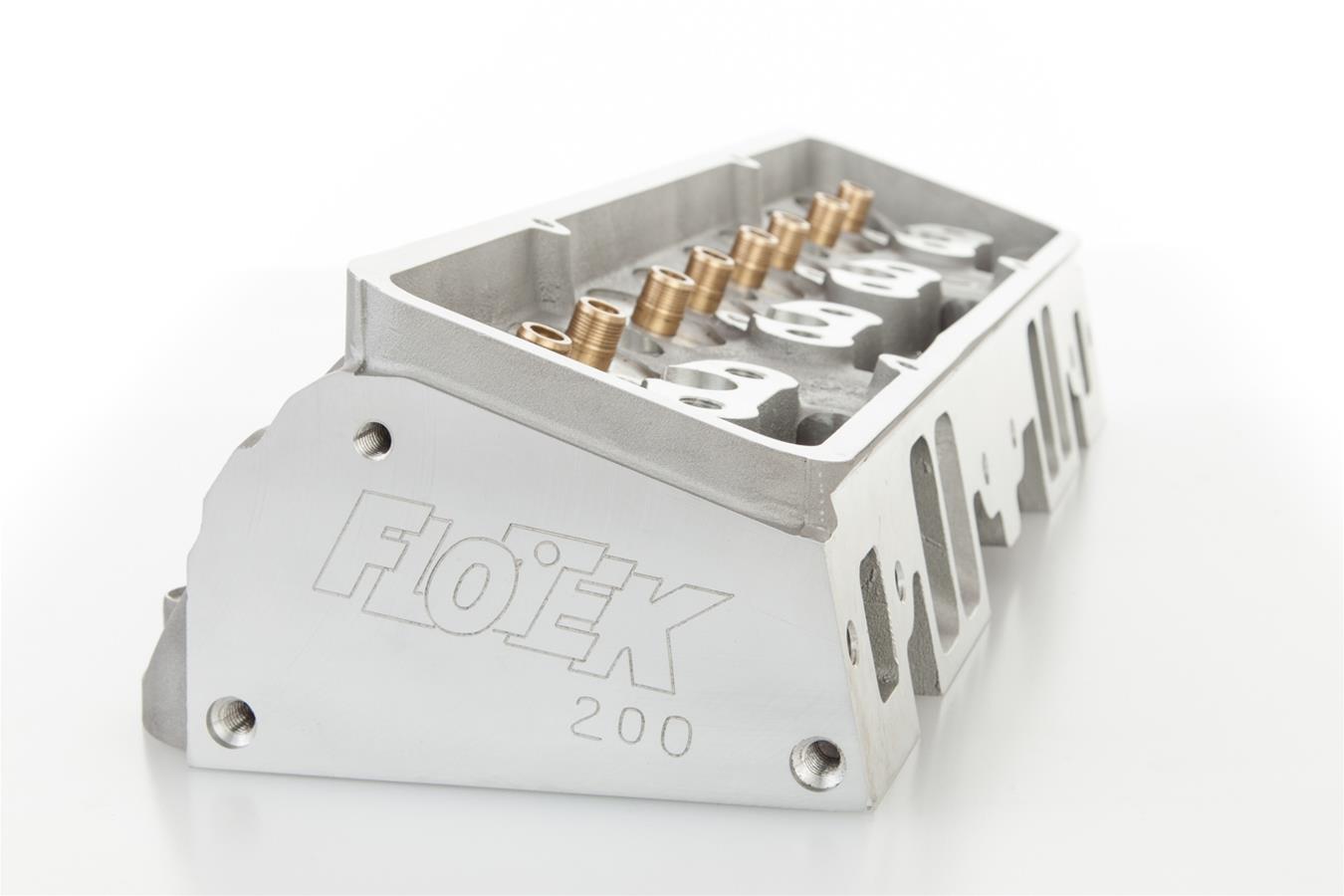

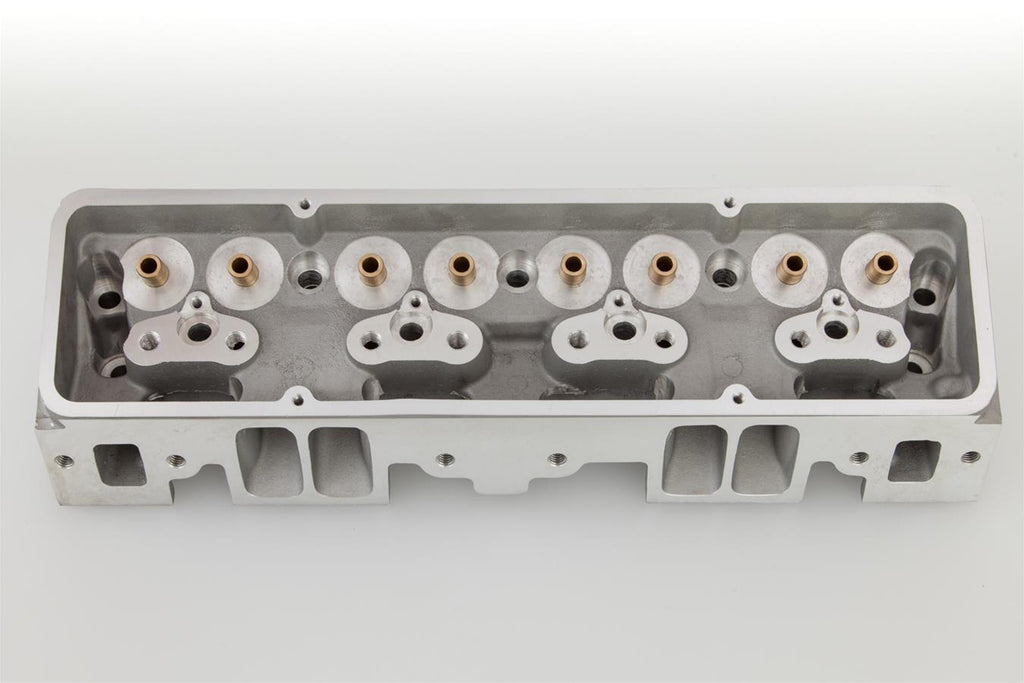

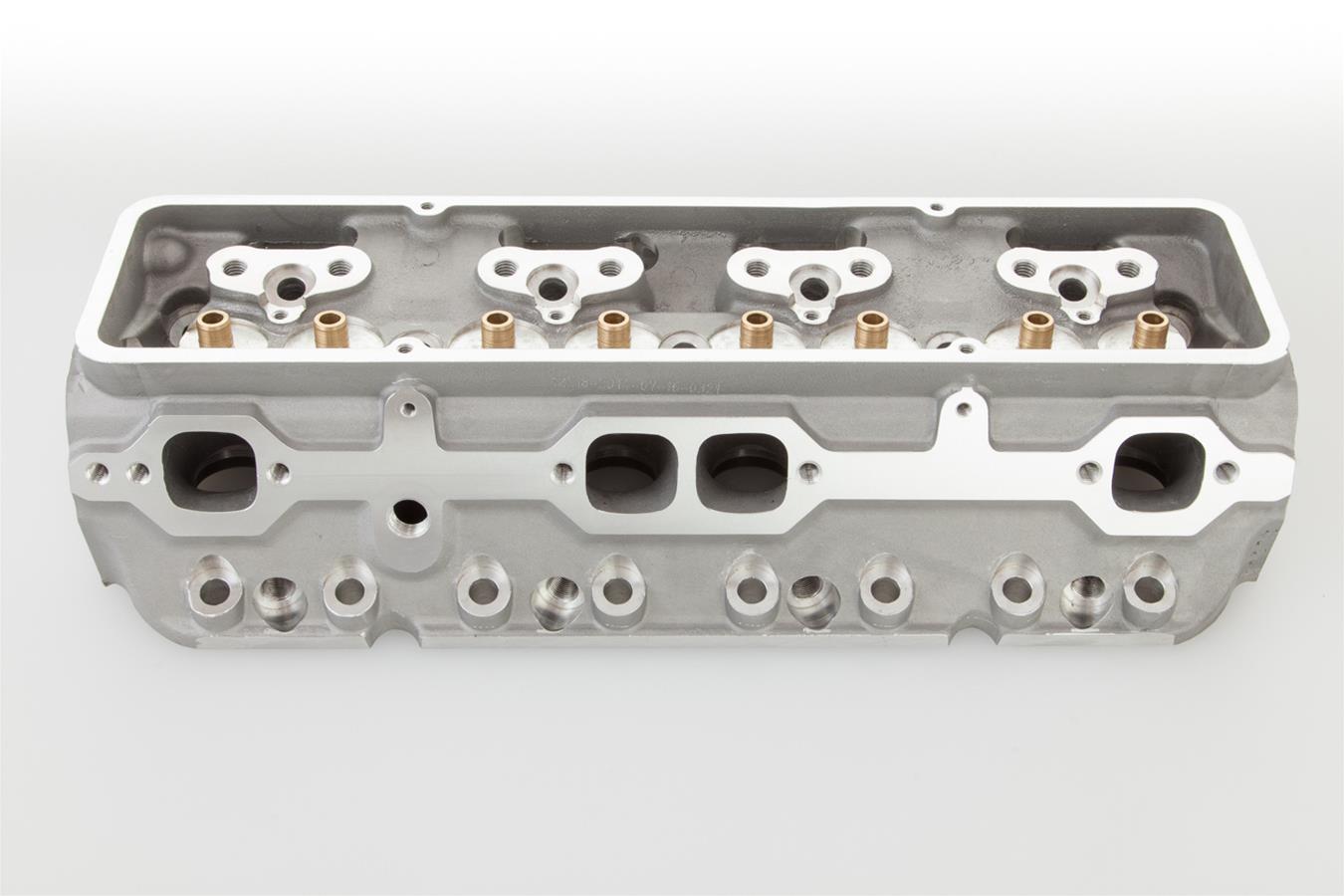

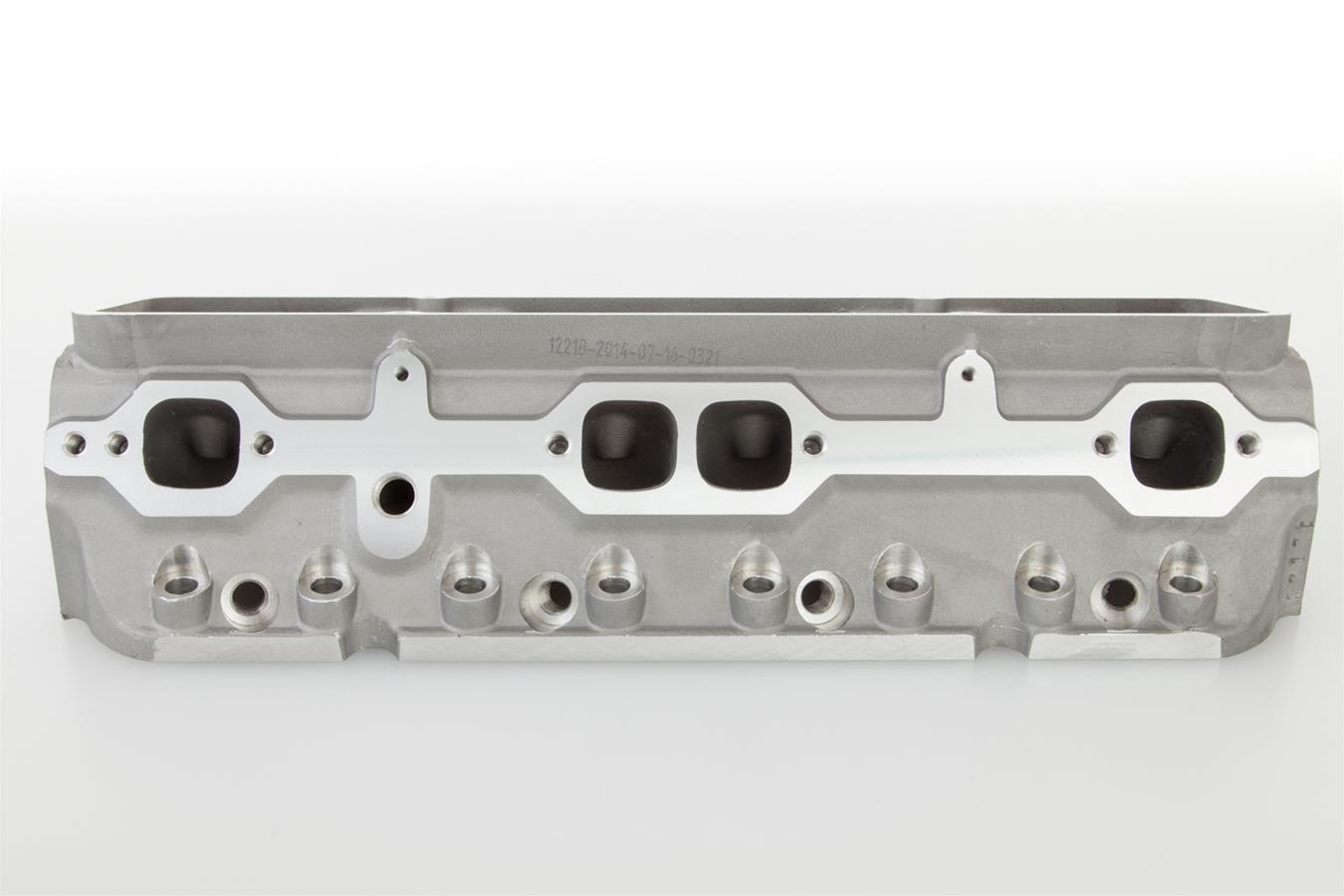

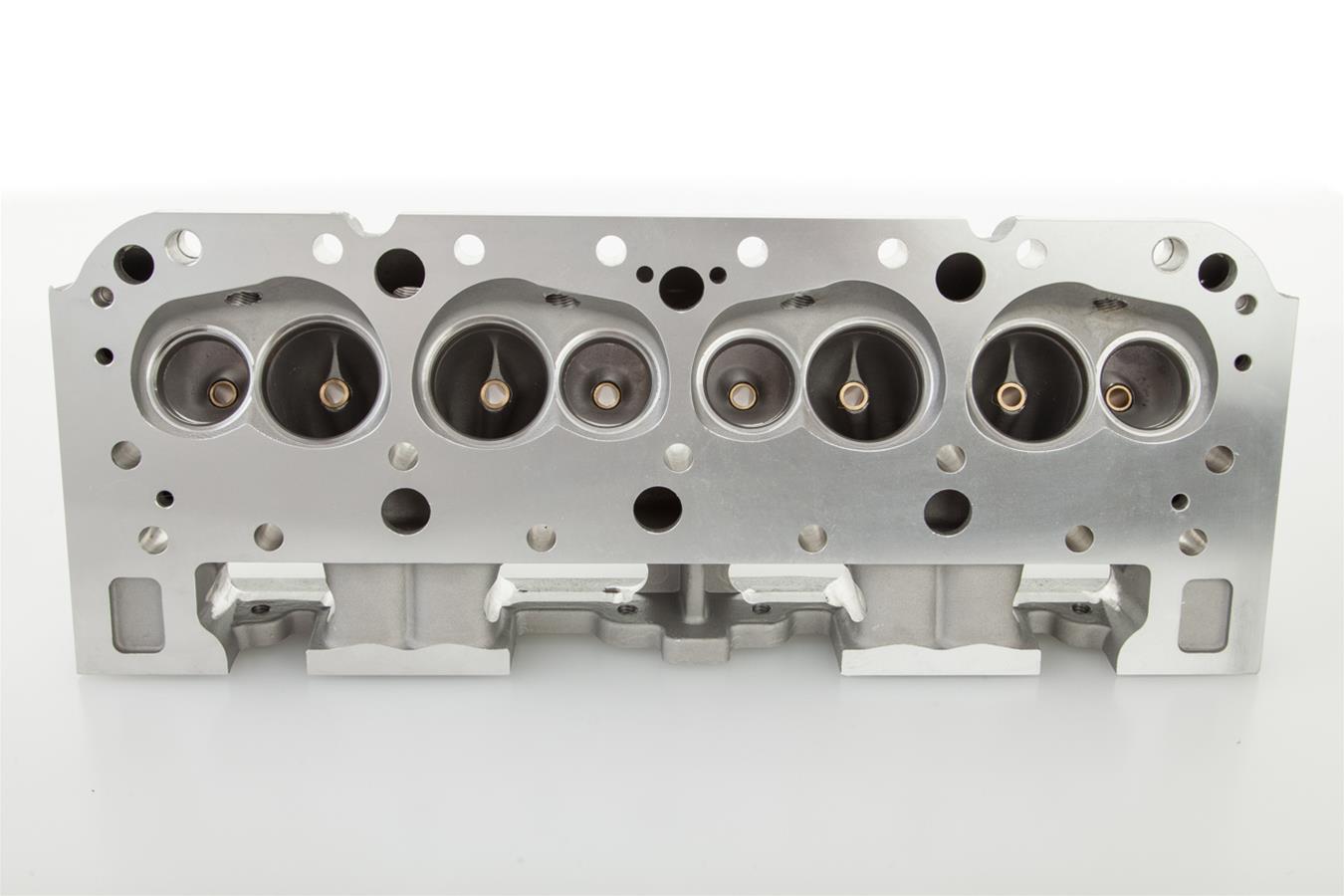

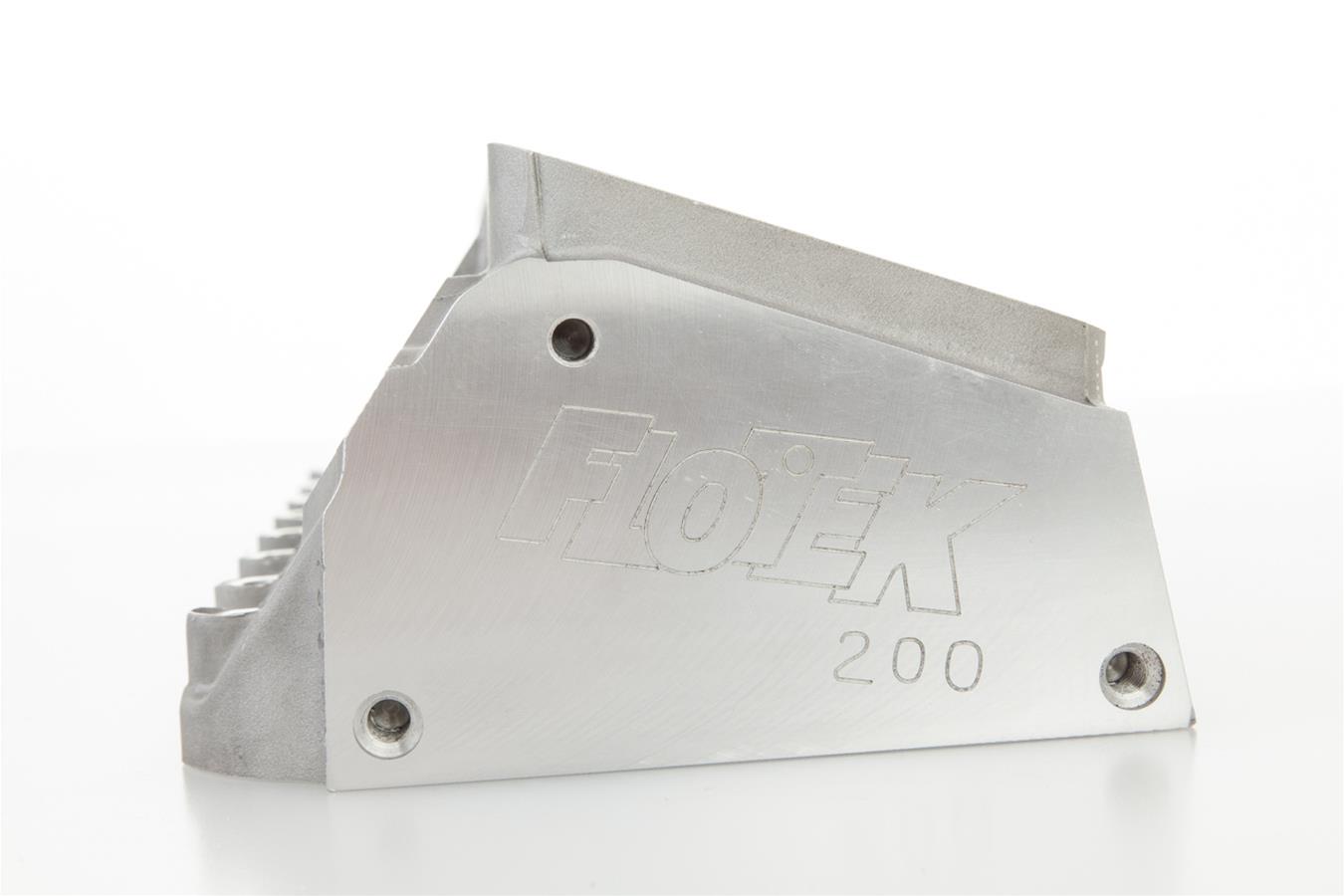

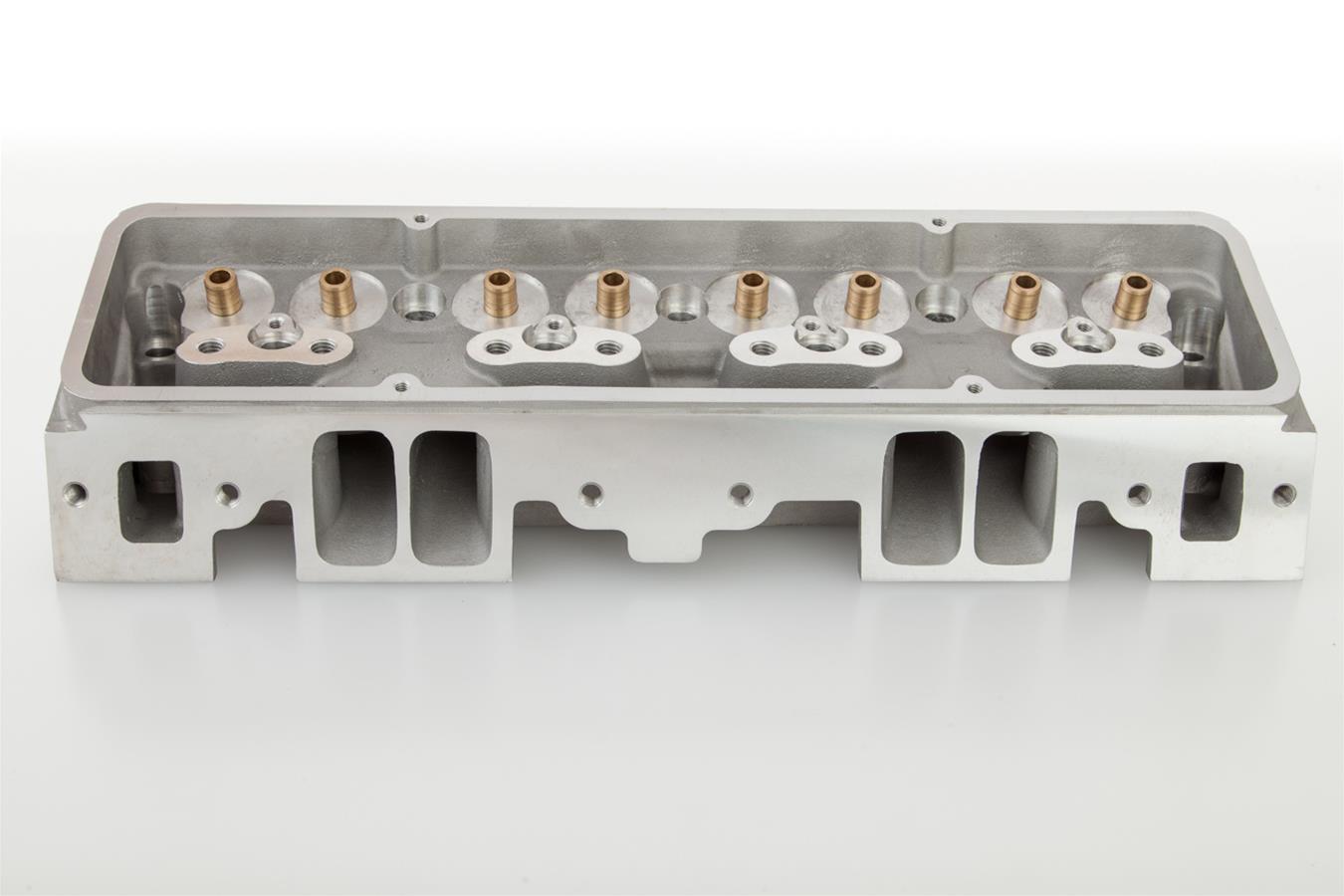

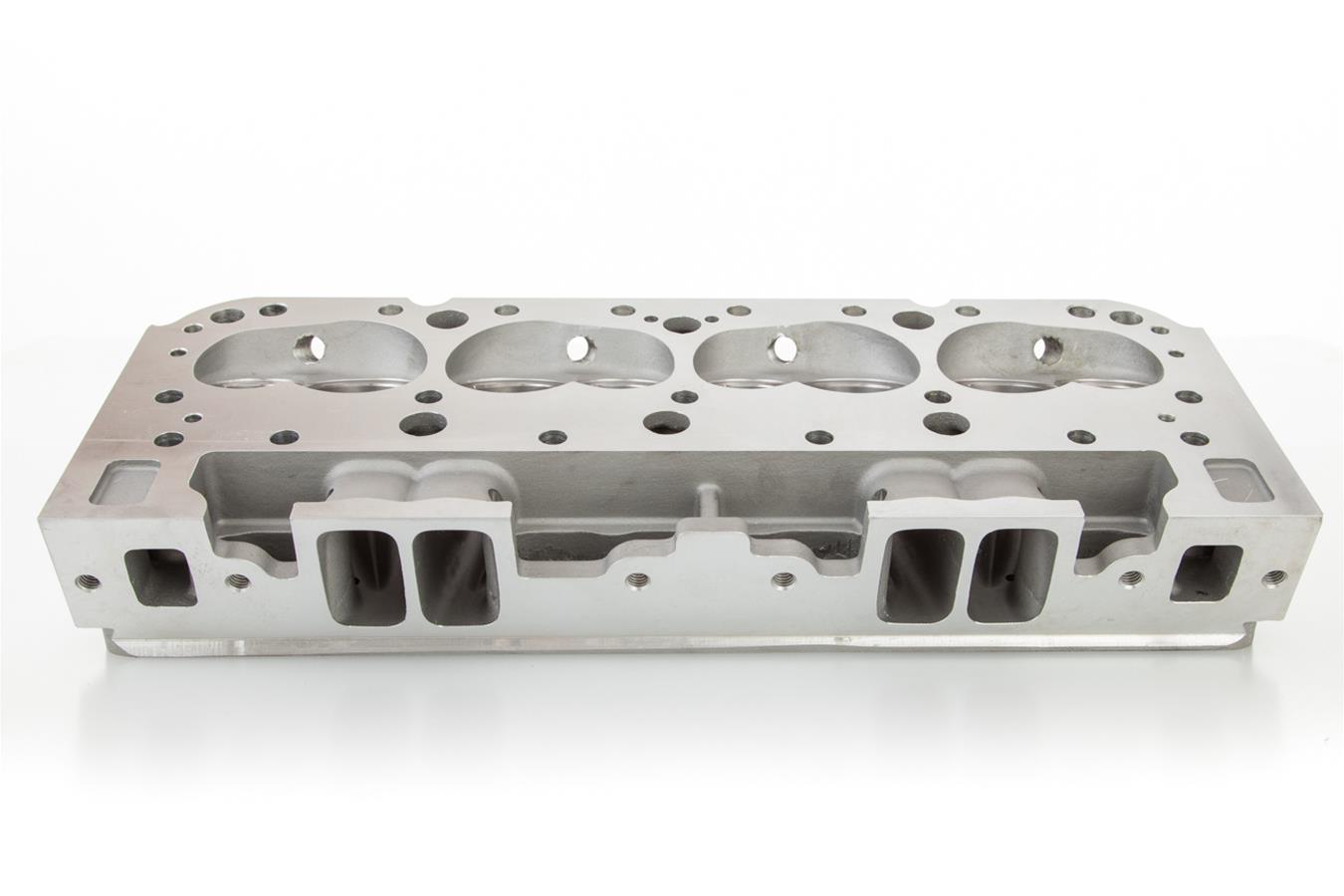

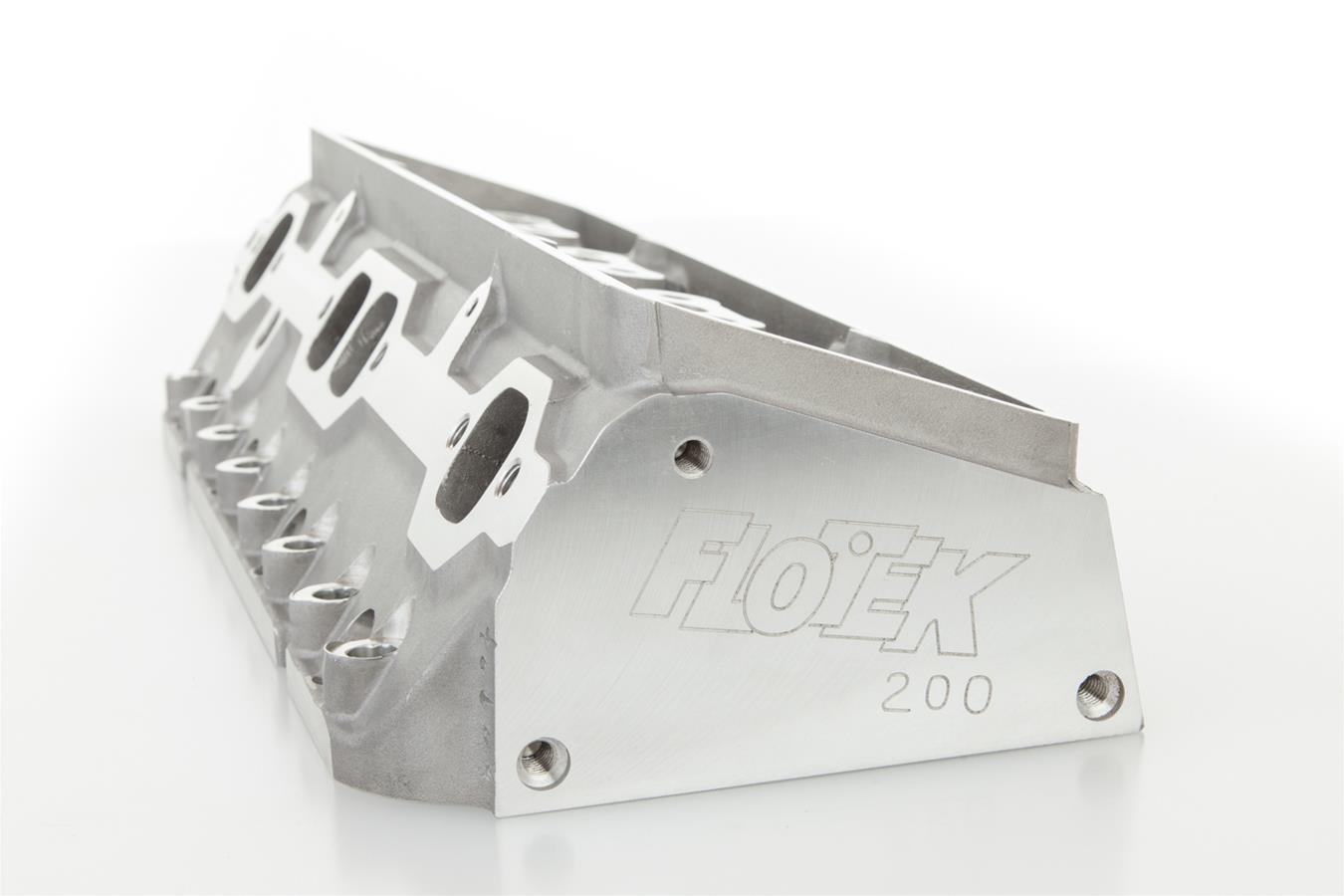

FLOTEK 200cc Small Block Chevy Cylinder Heads 1200-AC-500S

FLOTEK's 200cc small block as-cast ported chamber cylinder heads feature design by Jones Engineering, with 23-degree runners making impressive horsepower. Their power is ideal for street-strip usage and will post exceptional flow numbers right out of the box. The heads are available assembled or bare. Order the model with options recommended for your engine application. FLOTEK 200cc small block Chevy cylinder heads deliver the performance you're looking for!

Notes, features and benefits:

* This item is not sold as a pair; this is a single cylinder head
* Versatile 200cc intake ports
* 64cc combustion chamber
* Phosphorous bronze valve guides
* High-nickel valve seats
* Ends already milled and drilled for accessories
* Offered in solid or hydraulic cam design
Brand: Flotek
Manufacturer's Part Number: 1200-AC-500S
Part Type: Cylinder Heads
Product Line: FLOTEK 200cc Small Block Chevy Cylinder Heads
HP Direct Part Number: FLK-1200-AC-500S
UPC: 850134007211
Combustion Chamber Volume (cc): 64
Intake Runner Volume (cc): 200cc
Exhaust Runner Volume (cc): 78cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.020 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Spark Plug Style: Straight
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arm Nut Thread Size: 3/8 in.-24
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Center and perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Powdered metal
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
