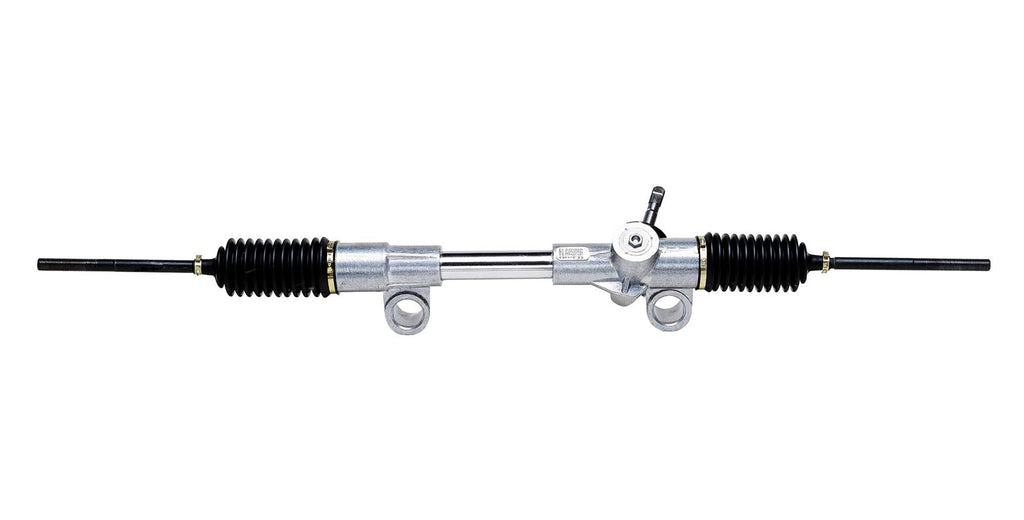

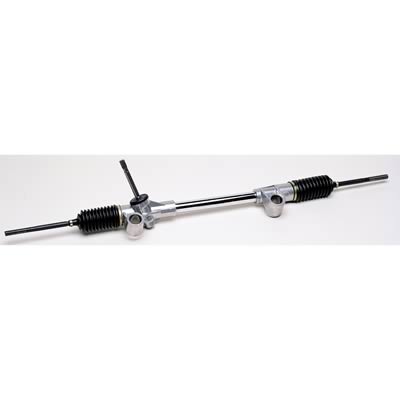

Flaming River Mustang Power Rack and Pinions FR1503-5

These Flaming River Mustang power rack and pinions are perfect for street rods, musclecars, and as stock replacements in Ford products that use the Mustang II front steer design. They offer over 6 in. of rack travel, which provides the maximum turning radius for classic and street rod applications. Inside, the pinion gear set is improved over the OE factory design and is engineered to provide ultimate strength characteristics. Outside, they are significantly different from previous designs. The Flaming River Mustang II power rack and pinions use a billet aluminum spool valve housing with a heat sink design for lower operating temperatures. They also feature a longer rack piston tube for added strength and increased rack stability. Their low-profile pressure hose design reduces most installation obstacles. They are light, yet strong, weighing 12 lbs. less than the original stock cast racks. Available with a matched, speed-sensitive power steering pump with V-belt or serpentine pulleys, the Flaming River Mustang II power rack and pinions make an excellent steering choice for your ride.Brand: Flaming River
Manufacturer's Part Number: FR1503-5
Part Type: Rack and Pinions
Product Line: Flaming River Mustang Power Rack and Pinions
HP Direct Part Number: FLA-FR1503-5
Steering Rack Type: Manual
Steering Rack Location: Front
Length (in.): 45.000 in.
Rack Travel (in.): 6.000 in.
Turns Lock to Lock: 4.00
Mounting Brackets Included: No
Bushings Included: No
Tie Rod Ends Included: No
Tie Rod End Adjustment Thread: 9/16-18 in.
Rack Housing Diameter (in.): 2.100 in.
Steering Shaft Included: No
Power Steering Pump Included: No
Power Steering Lines Included: No
Rack Material: Aluminum
Rack Color: Chrome
Remanufactured: No
Quantity: Sold individually.
Notes: Short pinion design.
