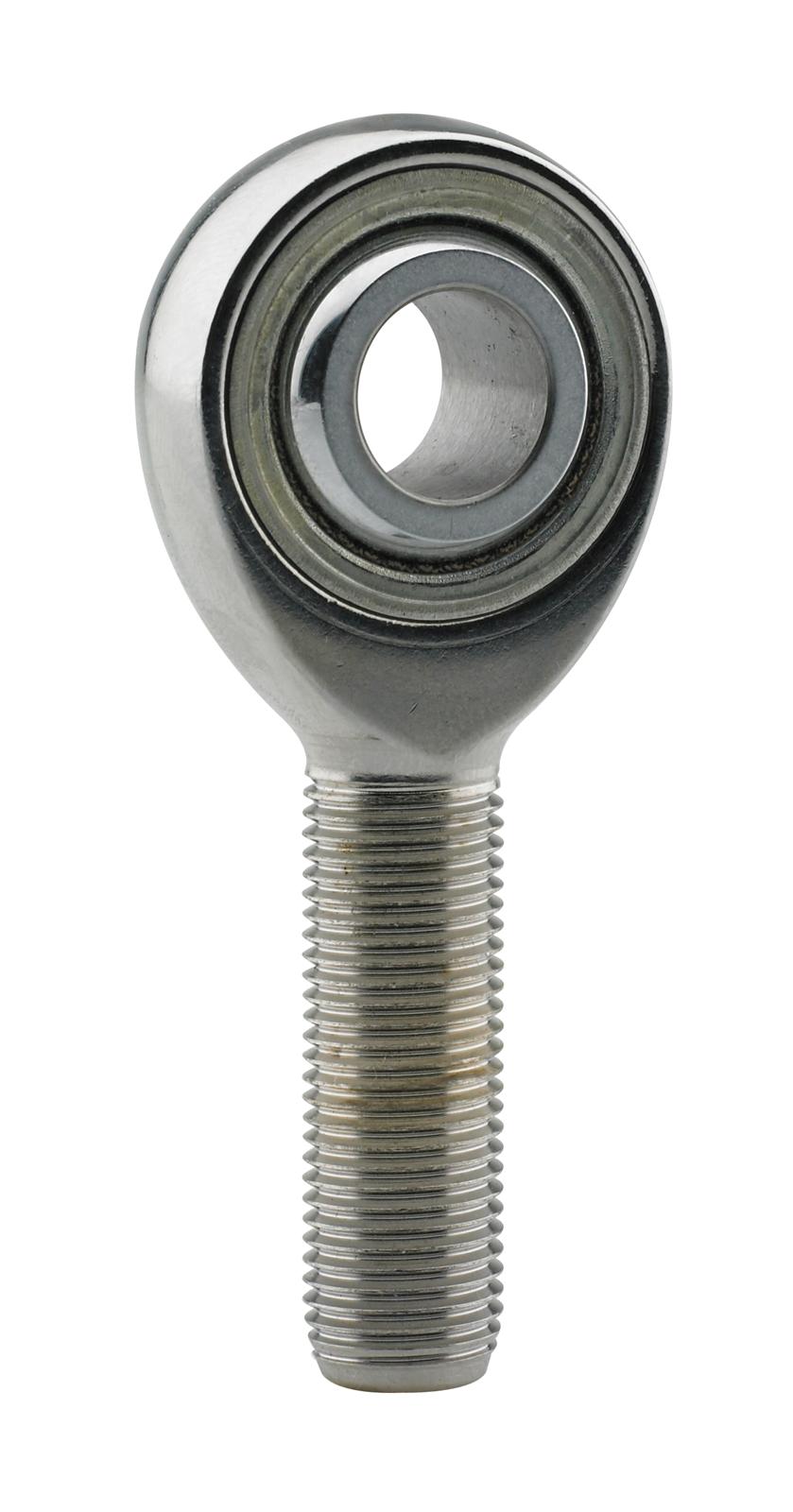

FK RJMX-T/RRSMX-T Series Rod Ends RJMX12T

FK Rod Ends RJMX-T/RRSMX-T Series are 3-piece heavy-duty/extra heavy-duty male rod ends precision-built for loads of strength. Their bodies are heat-treated steel alloy finished with bright electroless nickel or hard chrome plated, and then fitted with hard chrome plated 52100 steel balls and heat-treated steel alloy races that are zinc plated and chromate-treated. Featuring a PFTE liner chemically bonded to the inner diameter of the race they offer a very high load-carrying capacity and greatly increased dynamic wear characteristics. FK Rod Ends RJMX-T/RRSMX-T Series can handle your extreme application like a pro.Brand: FK Rod Ends
Manufacturer's Part Number: RJMX12T
Part Type: Rod Ends
Product Line: FK RJMX-T/RRSMX-T Series Rod Ends
HP Direct Part Number: FKB-RJMX12T
UPC: 800199511215
Rod End Thread Size: 3/4 in.-16
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.750 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.750 in.
Rod End Head Diameter: 1.750 in.
Rod End Head Width: 0.687 in.
Grease Fitting: No
Rod End Centerline Length: 2.875 in.
Heat-Treated: Yes
Rod End Ball Width: 0.875 in.
Rod End Misalign Angle: 14 degrees
Rod End Static Load Capacity: 28,090 lbs.
Rod End Material: Steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
