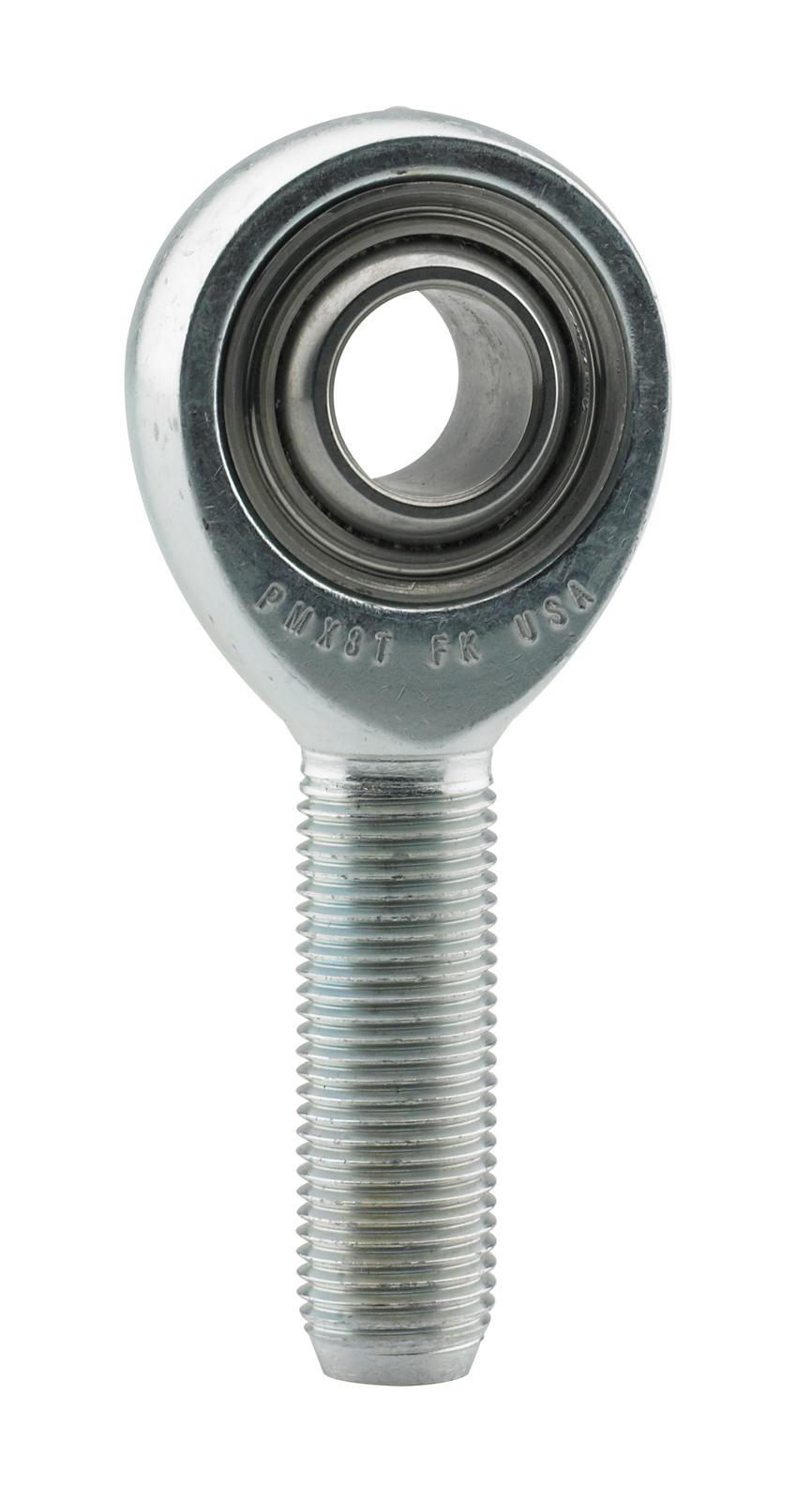

FK PMX-T/PMXL-T Series Rod Ends PMXL5T

FK PMX-T/PMXL-T Series rod ends feature a 3-piece, wear-resistant, self-lubricating design. Frequently used in high performance racing applications, these rod ends have a 4340 alloy steel body that's heat-treated, zinc plated, and chrome-treated for ultimate strength and durability. The ball is made of 440C stainless or 52100 steel with a 17-4PH DRES heat-treated stainless steel race. PMX-T/PMXL-T Series rod ends come standard with a PTFE fabric liner bonded to the race I.D.Brand: FK Rod Ends
Manufacturer's Part Number: PMXL5T
Part Type: Rod Ends
Product Line: FK PMX-T/PMXL-T Series Rod Ends
HP Direct Part Number: FKB-PMXL5T
UPC: 800199850512
Rod End Thread Size: 5/16 in.-24 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.313 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.187 in.
Rod End Head Diameter: 0.900 in.
Rod End Head Width: 0.327 in.
Grease Fitting: No
Rod End Centerline Length: 1.875 in.
Heat-Treated: Yes
Rod End Ball Width: 0.437 in.
Rod End Misalign Angle: 14 degrees
Rod End Static Load Capacity: 8,302 lbs.
Rod End Material: Chromoly
Rod End Finish: Natural
Quantity: Sold individually.
