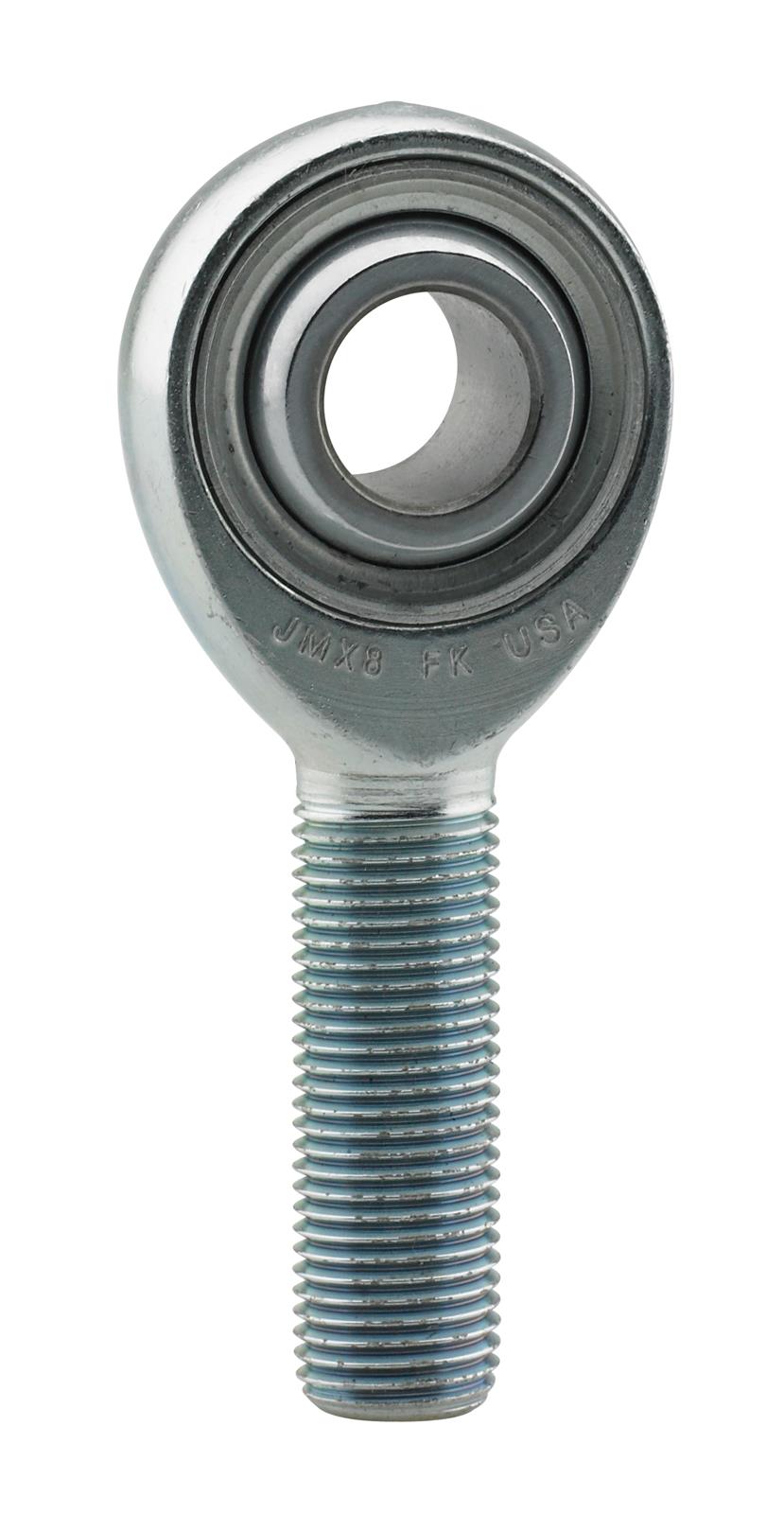

FK JMX-M/JFX-M Series Rod Ends JMXL16M

FK JMX-M/JFX-M Series high-strength rod ends are available for a wide range of applications. They're used to join the ends of steering links, control rods, and other mechanically controlled tie rods. Since the center of rotation of a rod end is on the axis of both connected shafts, it provides reliable point-to-point contact. Common signs of a failing rod end include a steering wheel that shakes or vibrates—and looseness or excessive play in the steering wheel. The vibration typically becomes worse as you accelerate or turn. These 3-piece FX metric replacements come in a variety of size options, in metal-to-metal or PTFE-lined styles. Machined from heat-treated alloy steel with a zinc plated finish, the rod ends are offered in different misalign angles and static load capacities.Brand: FK Rod Ends
Manufacturer's Part Number: JMXL16M
Part Type: Rod Ends
Product Line: FK JMX-M/JFX-M Series Rod Ends
HP Direct Part Number: FKB-JMXL16M
UPC: 800200531607
Rod End Thread Size: M16 x 2.0 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 16.000mm
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 40.000mm
Rod End Head Diameter: 38.000mm
Rod End Head Width: 14.250mm
Grease Fitting: No
Rod End Centerline Length: 66.000mm
Heat-Treated: Yes
Rod End Ball Width: 21.000mm
Rod End Misalign Angle: 23 degrees
Rod End Static Load Capacity: 17,151 lbs.
Rod End Material: Alloy steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
