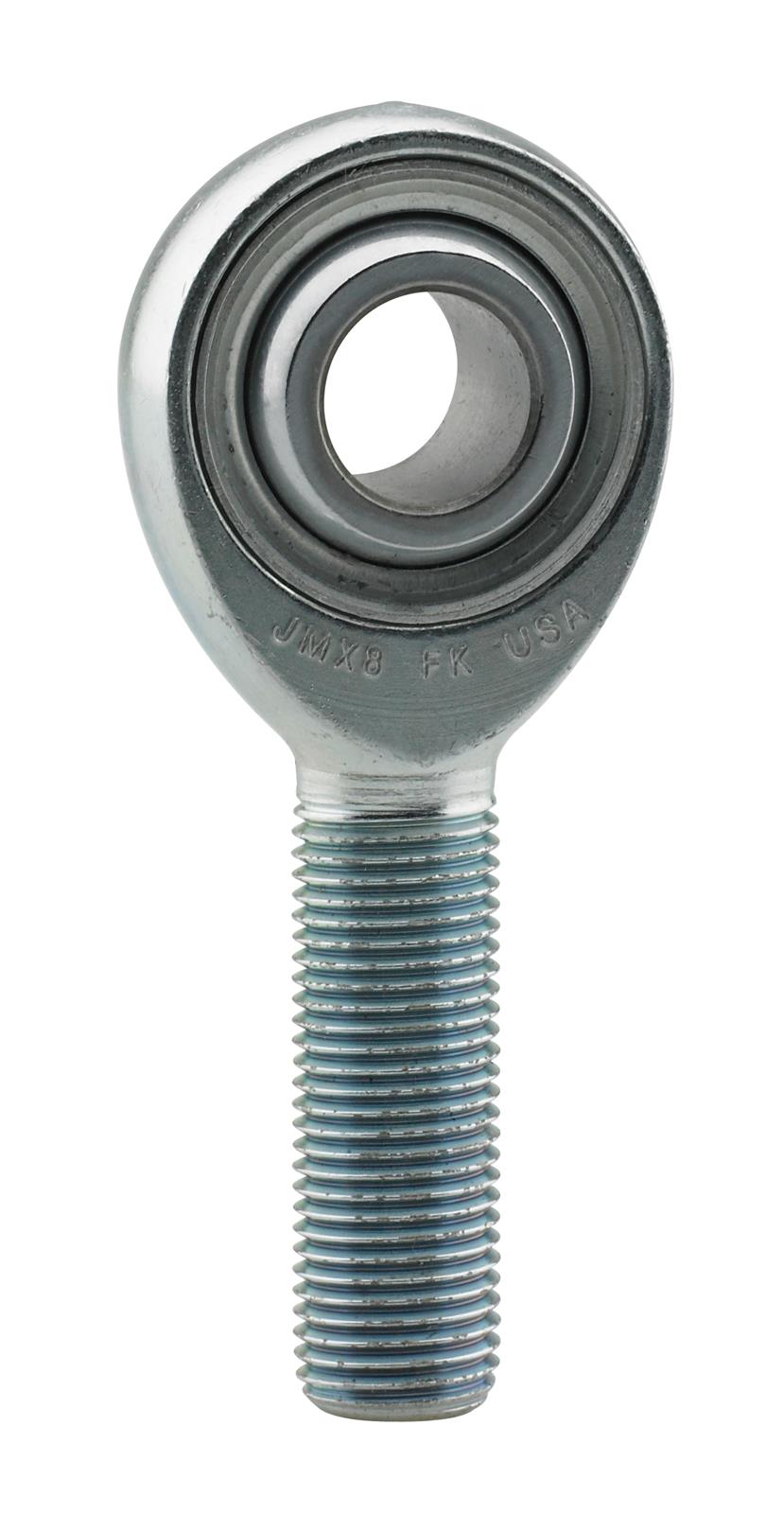

FK JMX-M/JFX-M Series Rod Ends JMX14MFZ

FK JMX-M/JFX-M Series high-strength rod ends are available for a wide range of applications. They're used to join the ends of steering links, control rods, and other mechanically controlled tie rods. Since the center of rotation of a rod end is on the axis of both connected shafts, it provides reliable point-to-point contact. Common signs of a failing rod end include a steering wheel that shakes or vibrates—and looseness or excessive play in the steering wheel. The vibration typically becomes worse as you accelerate or turn. These 3-piece FX metric replacements come in a variety of size options, in metal-to-metal or PTFE-lined styles. Machined from heat-treated alloy steel with a zinc plated finish, the rod ends are offered in different misalign angles and static load capacities.Brand: FK Rod Ends
Manufacturer's Part Number: JMX14MFZ
Part Type: Rod Ends
Product Line: FK JMX-M/JFX-M Series Rod Ends
HP Direct Part Number: FKB-JMX14MFZ
UPC: 800200691431
Rod End Thread Size: M14 x 1.5
Rod End Attachment: Male threads
Rod End Head Bore Size: 14.000mm
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 36.000mm
Rod End Head Diameter: 34.750mm
Rod End Head Width: 13.500mm
Grease Fitting: Yes
Rod End Centerline Length: 60.000mm
Heat-Treated: Yes
Rod End Ball Width: 19.000mm
Rod End Misalign Angle: 21 degrees
Rod End Static Load Capacity: 16,129 lbs.
Rod End Material: Alloy steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
