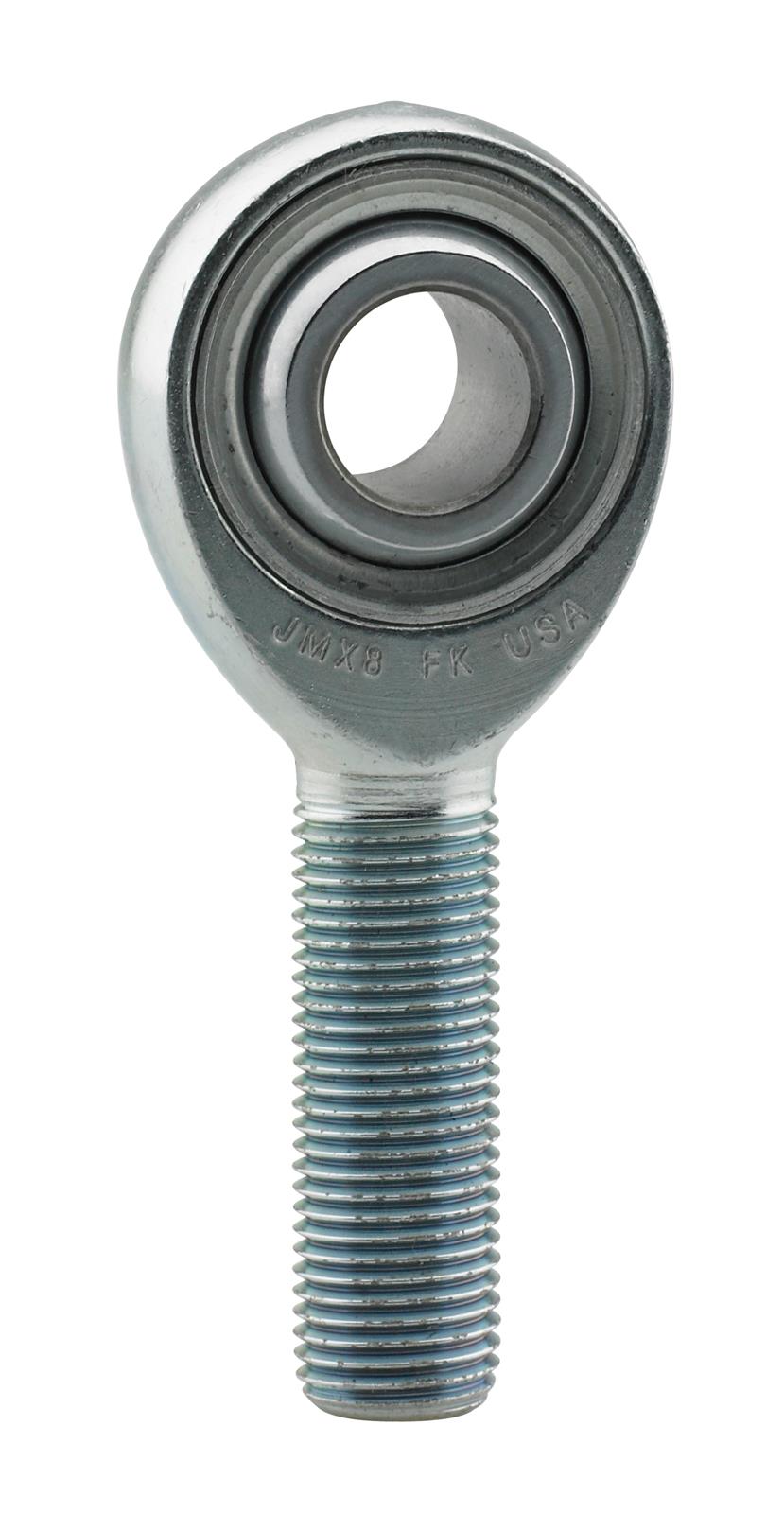

FK JMX/JMXL Series Rod Ends JMX7YZ

FK JMX/JMXL Series 3-piece rod ends are precision-built for high strength. The bodies and races are heat-treated steel alloy that is zinc plated and chromate treated for corrosion resistance. The ball is hard chrome plated 52100 steel, offering excellent wear and durability. These rod ends are available in a wide range of size and options, with right (JMX) or left (JMXL) hand threads. You can also choose JMX/JMXL in metric dimensions with PTFE liners for high load capacities. FK Bearings provide the expertise and quality ends to meet your needs. Order the 3-piece JMX/JMXL Series rod ends designed to fit your application.Brand: FK Rod Ends
Manufacturer's Part Number: JMX7YZ
Part Type: Rod Ends
Product Line: FK JMX/JMXL Series Rod Ends
HP Direct Part Number: FKB-JMX7YZ
UPC: 800199390766
Rod End Thread Size: 7/16 in.-20
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.438 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 1.375 in.
Rod End Head Diameter: 1.125 in.
Rod End Head Width: 0.437 in.
Grease Fitting: Yes
Rod End Centerline Length: 2.125 in.
Heat-Treated: Yes
Rod End Ball Width: 0.562 in.
Rod End Misalign Angle: 14 degrees
Rod End Static Load Capacity: 10,290 lbs.
Rod End Material: Alloy steel
Quantity: Sold individually.
Notes: Comes with press-in stud in rod end bore.
