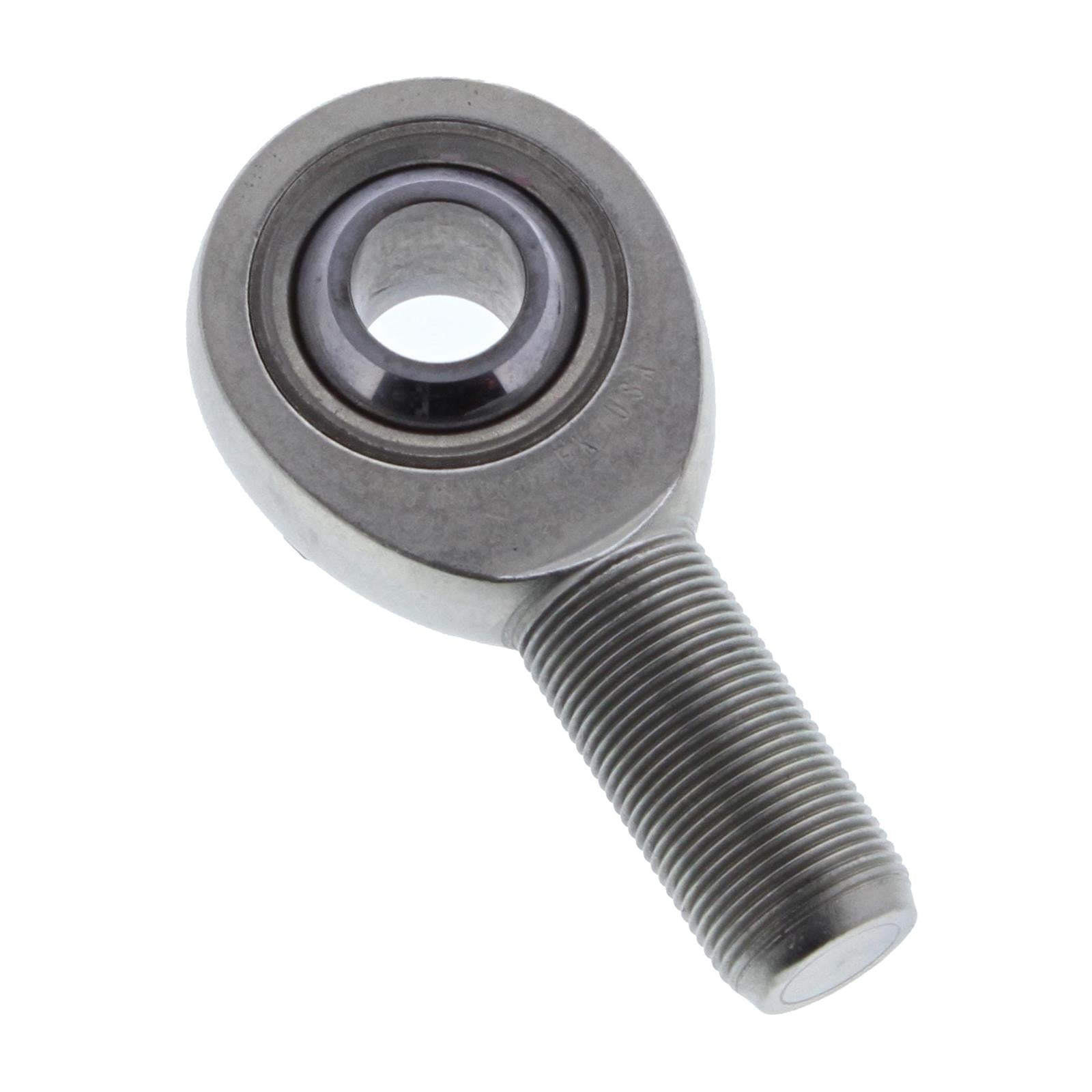

FK JMX/JMXL Series Rod Ends JMX16T-F1

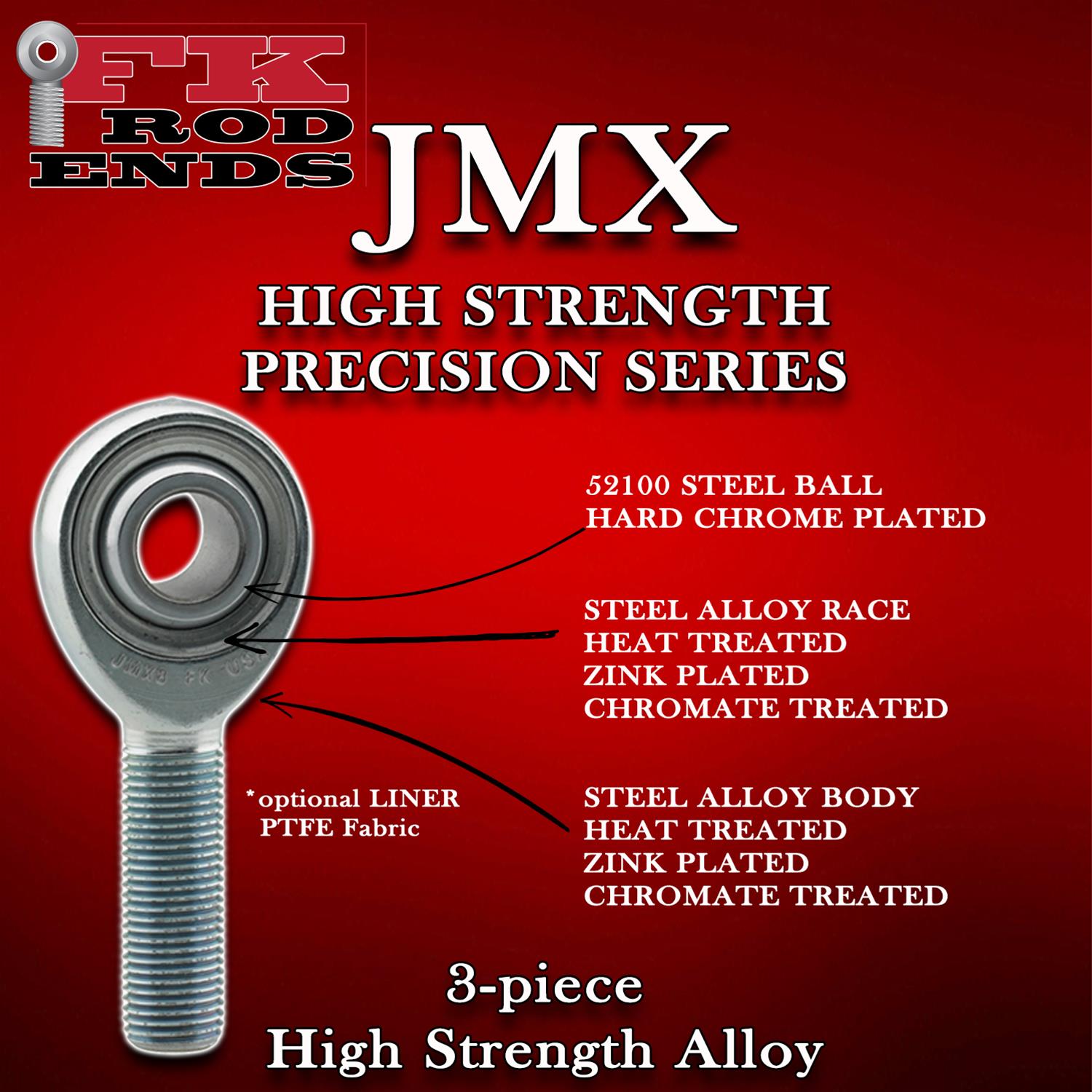

FK JMX/JMXL Series 3-piece rod ends are precision-built for high strength. The bodies and races are heat-treated steel alloy that is zinc plated and chromate treated for corrosion resistance. The ball is hard chrome plated 52100 steel, offering excellent wear and durability. These rod ends are available in a wide range of size and options, with right (JMX) or left (JMXL) hand threads. You can also choose JMX/JMXL in metric dimensions with PTFE liners for high load capacities. FK Bearings provide the expertise and quality ends to meet your needs. Order the 3-piece JMX/JMXL Series rod ends designed to fit your application.Brand: FK Rod Ends
Manufacturer's Part Number: JMX16T-F1
Part Type: Rod Ends
Product Line: FK JMX/JMXL Series Rod Ends
HP Direct Part Number: FKB-JMX16T-F1
Rod End Thread Size: 1 1/4 in.-12
Rod End Attachment: Male threads
Rod End Head Bore Size: 1.000 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 2.500 in.
Rod End Head Diameter: 2.950 in.
Rod End Head Width: 1.015 in.
Grease Fitting: No
Rod End Centerline Length: 4.500 in.
Heat-Treated: Yes
Rod End Ball Width: 1.375 in.
Rod End Misalign Angle: 17 degrees
Rod End Static Load Capacity: 17,151 lbs.
Rod End Material: Alloy steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
Notes: Ball fits much tighter than a standard rod end and features a higher breakaway torque specification.
