Description

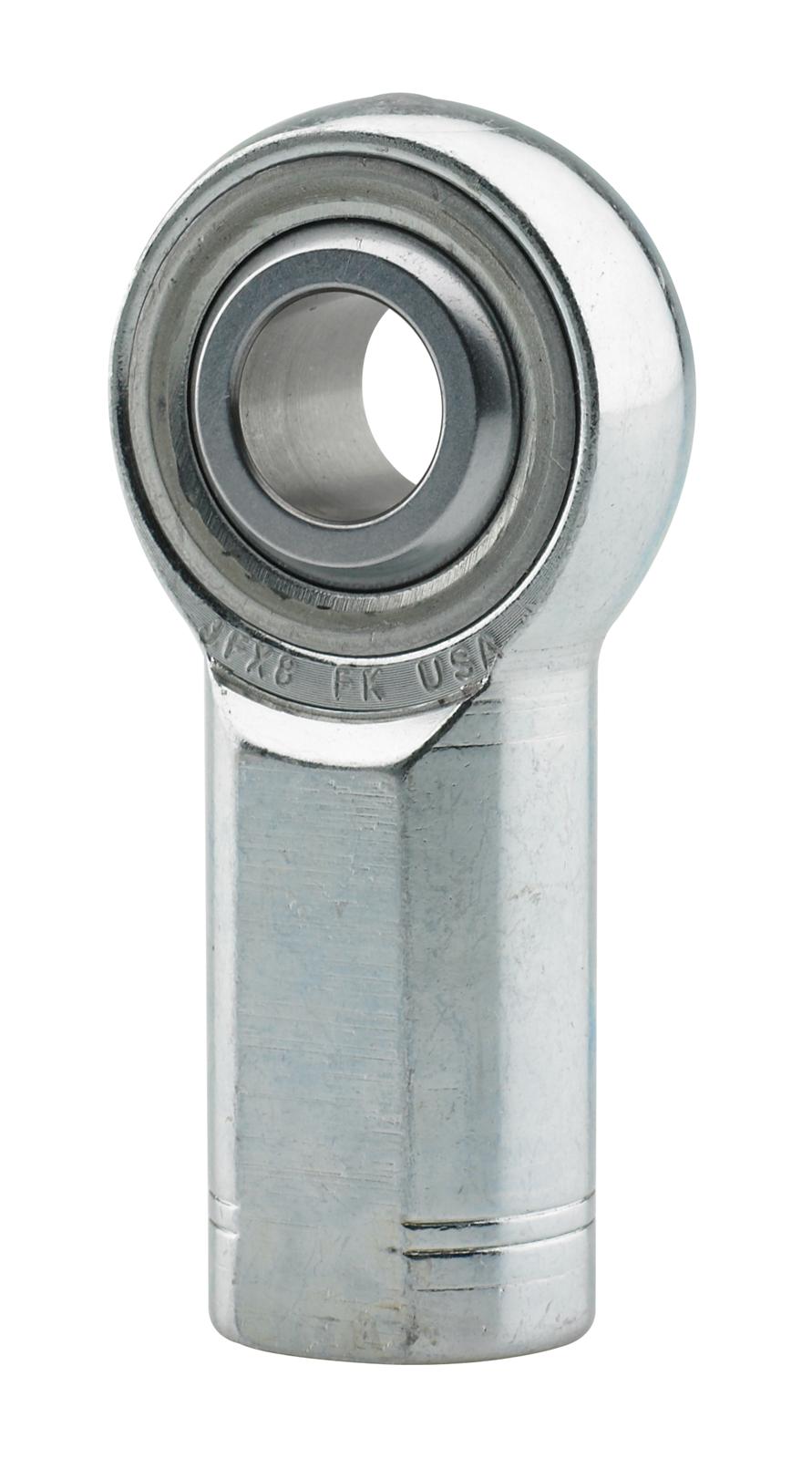

FK JFX Series rod ends feature 3-piece, wear-resistant construction. Their precision-made alloy steel bodies are heat- and chromate-treated and zinc plated to resist oxidation. The rod ends include heat-treated and hard chrome plated steel 52100 balls, as well as heat-treated, zinc plated, and chromate treated races. PTFE liners are available. Order the size, angle, and thread options needed for your application.Brand: FK Rod Ends
Manufacturer's Part Number: JFX5
Part Type: Rod Ends
Product Line: FK JFX Series Rod Ends
HP Direct Part Number: FKB-JFX5
UPC: 800199350500
Rod End Thread Size: 5/16 in.-24
Rod End Attachment: Female threads
Rod End Head Bore Size: 0.313 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 0.687 in.
Rod End Head Diameter: 0.875 in.
Rod End Head Width: 0.344 in.
Grease Fitting: No
Rod End Centerline Length: 1.375 in.
Heat-Treated: Yes
Rod End Ball Width: 0.437 in.
Rod End Misalign Angle: 14 degrees
Rod End Static Load Capacity: 7,640 lbs.
Rod End Material: Alloy steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
