Description

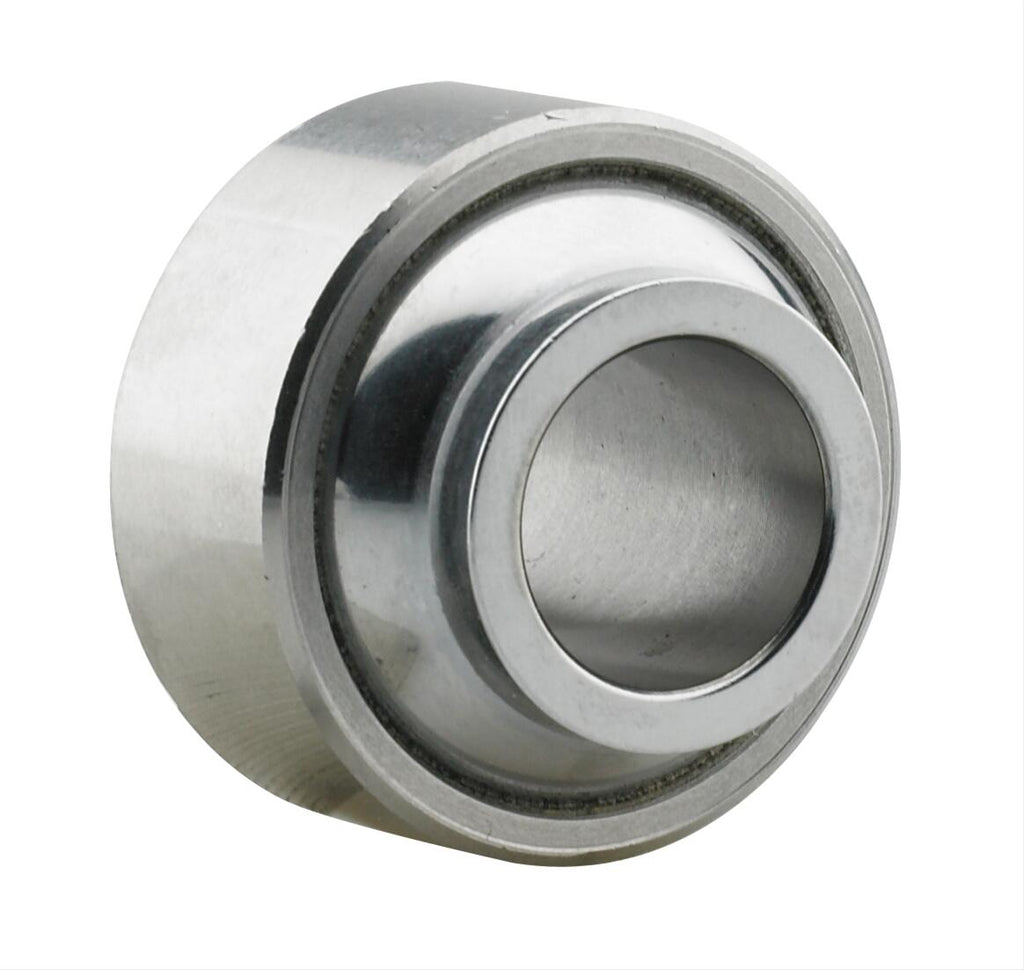

FK HIN-T Series rod end receiver bearings are ideal to accommodate severe misalignment angles. Their structural integrity is the result of heat-treated alloy steel construction, precision-machined to hold tight tolerances. In addition, these FK HIN-T Series rod end receiver bearings have PTFE self-lubricating liners and are offered in a variety of sizes to suit your application.Brand: FK Rod Ends
Manufacturer's Part Number: HIN6T
Part Type: Rod End Receiver Bearings
Product Line: FK HIN-T Series Rod End Receiver Bearings
HP Direct Part Number: FKB-HIN6T
UPC: 800199670615
Receiver Race Diameter: 0.9060 in.
Race Width: 0.345 in.
Inner Ball Width: 0.813 in.
Inner Ball Diameter: 0.7810 in.
Chamfer Reference: 0.030 in.
Rod End Misalign Angle: 23 degrees
ULT. Static Radial Load (lbs.): 16,983 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
Manufacturer's Part Number: HIN6T
Part Type: Rod End Receiver Bearings
Product Line: FK HIN-T Series Rod End Receiver Bearings
HP Direct Part Number: FKB-HIN6T
UPC: 800199670615
Receiver Race Diameter: 0.9060 in.
Race Width: 0.345 in.
Inner Ball Width: 0.813 in.
Inner Ball Diameter: 0.7810 in.
Chamfer Reference: 0.030 in.
Rod End Misalign Angle: 23 degrees
ULT. Static Radial Load (lbs.): 16,983 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
