Description

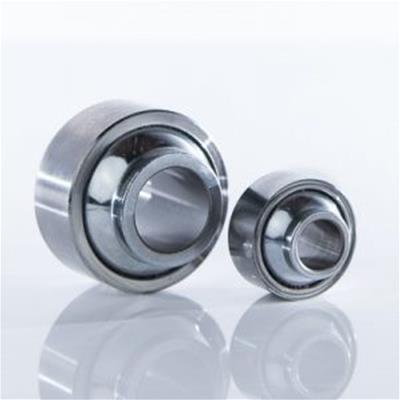

FK HIN-T Series rod end receiver bearings are ideal to accommodate severe misalignment angles. Their structural integrity is the result of heat-treated alloy steel construction, precision-machined to hold tight tolerances. In addition, these FK HIN-T Series rod end receiver bearings have PTFE self-lubricating liners and are offered in a variety of sizes to suit your application.Brand: FK Rod Ends
Manufacturer's Part Number: HIN4T
Part Type: Rod End Receiver Bearings
Product Line: FK HIN-T Series Rod End Receiver Bearings
HP Direct Part Number: FKB-HIN4T
UPC: 800199670417
Receiver Race Diameter: 0.7400 in.
Race Width: 0.255 in.
Inner Ball Width: 0.593 in.
Inner Ball Diameter: 0.5930 in.
Chamfer Reference: 0.020 in.
Rod End Misalign Angle: 24 degrees
ULT. Static Radial Load (lbs.): 7,560 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
Manufacturer's Part Number: HIN4T
Part Type: Rod End Receiver Bearings
Product Line: FK HIN-T Series Rod End Receiver Bearings
HP Direct Part Number: FKB-HIN4T
UPC: 800199670417
Receiver Race Diameter: 0.7400 in.
Race Width: 0.255 in.
Inner Ball Width: 0.593 in.
Inner Ball Diameter: 0.5930 in.
Chamfer Reference: 0.020 in.
Rod End Misalign Angle: 24 degrees
ULT. Static Radial Load (lbs.): 7,560 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
