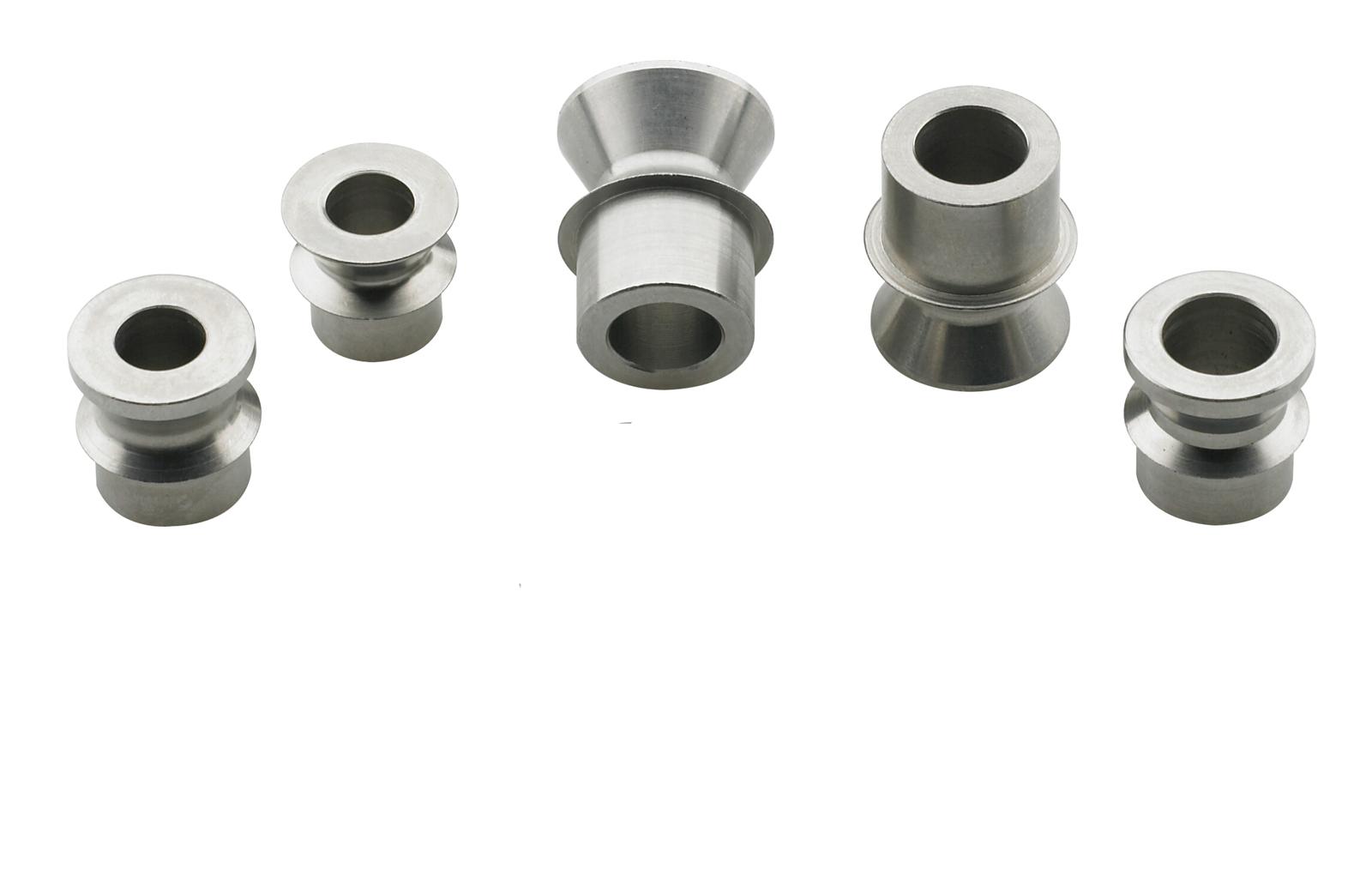

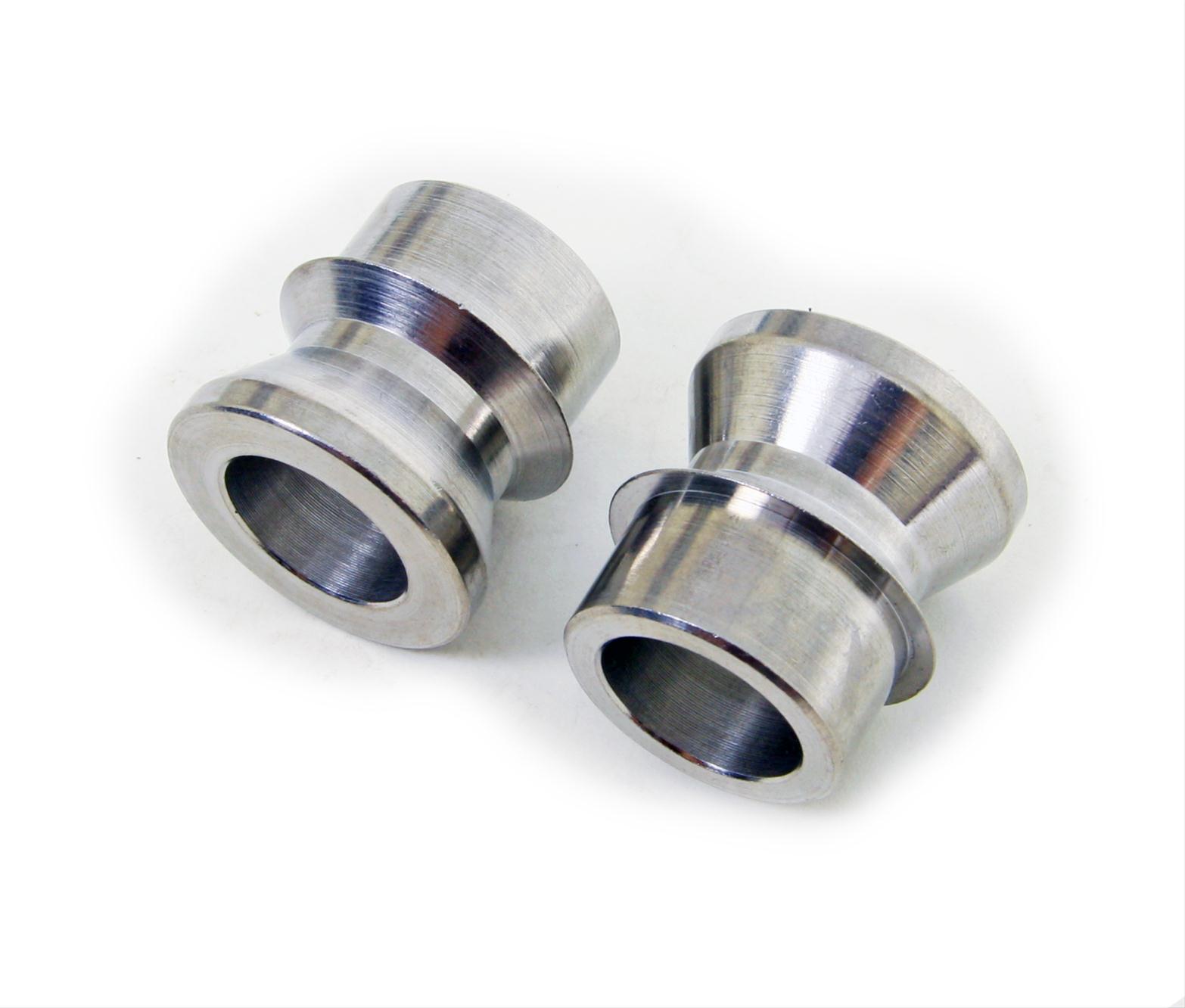

FK High-Misalignment Bushings 14-10HB

FK high-misalignment bushings are designed to increase the misalignment angle and reduce the hole size in your bearing. They will permit the rod end to swivel through a much wider arc to provide you with a more versatile mechanism. Additionally, you'll receive FK high-misalignment bushings made from 17-4 PH stainless steel—a safer means of mounting spherical rod ends with a high angle of incidence. Order the size and angle needed for your application.Brand: FK Rod Ends
Manufacturer's Part Number: 14-10HB
Part Type: Rod End Alignment Bushings
Product Line: FK High-Misalignment Bushings
HP Direct Part Number: FKB-14-10HB
UPC: 800200382902
Rod End Alignment Bushing Angle: 22 degree
Rod End Alignment Bushing Length (in.): 1.06
Rod End Alignment Bushing Length (mm): 26.92
Rod End Alignment Bushing Outside Diameter (in.): 0.87
Rod End Alignment Bushing Outside Diameter (mm): 22.10
Rod End Alignment Bushing Inside Diameter (in.): 0.63
Rod End Alignment Bushing Inside Diameter (mm): 16.00
Rod End Alignment Bushing Shoulder Length (in.): 0.43
Rod End Alignment Bushing Shoulder Length (mm): 10.92
Rod End Alignment Bushing Material: Stainless steel
Quantity: Sold as a pair.
