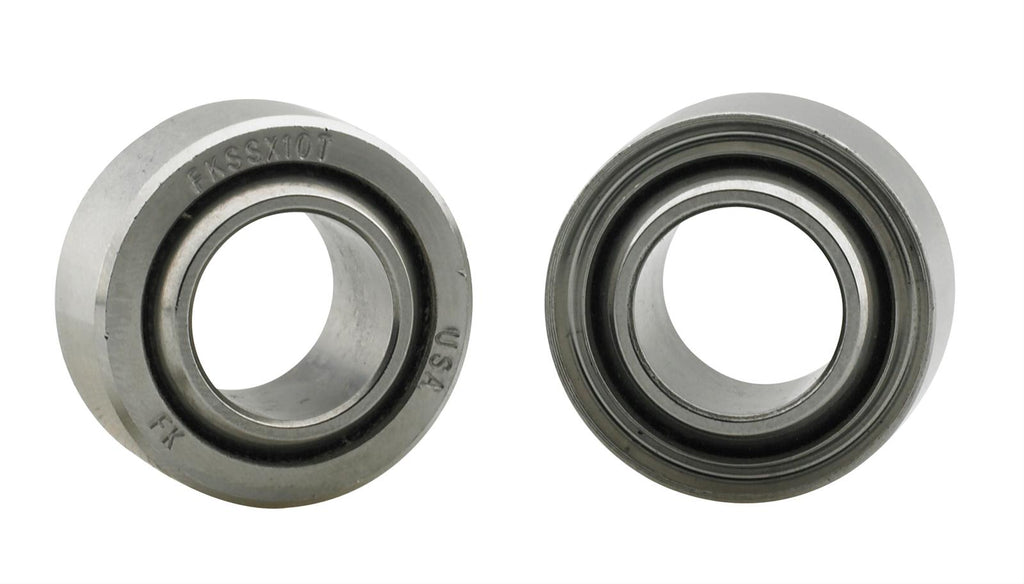

FK FKS/FKSSX Precision Narrow Series Spherical Bearings FKSSX7

FK FKS/FKSSX Precision Narrow Series spherical bearings offer strength and durability for your race car's suspension and steering. These high-quality replacements are available in heat-treated, oil-coated alloy steel—with heat-treated hard chrome plated steel balls or heat-treated stainless steel with a bonded PTFE liner to handle abuse. FK's self-lubricating PTFE liners are chemically bonded to the inner diameter of the race for a very high load-carrying capacity with greatly increased dynamic wear characteristics. Order the size and other options needed for your application.

FKS Series offers:
* 52100 heat-treated steel with hard chrome plate ball
* Alloy steel, heat-treated and oil-coated race
* PTFE liners available

FKSSX Series offers:
* 440C heat-treated stainless steel ball
* 17-4 PH heat-treated stainless steel race
* PTFE liner
Brand: FK Rod Ends
Manufacturer's Part Number: FKSSX7
Part Type: Rod End Receiver Bearings
Product Line: FK FKS/FKSSX Precision Narrow Series Spherical Bearings
HP Direct Part Number: FKB-FKSSX7
UPC: 800199660708
Receiver Race Diameter: 0.9062 in.
Race Width: 0.343 in.
Inner Ball Width: 0.437 in.
Inner Ball Diameter: 0.4375 in.
Rod End Ball Diameter: 0.687 in.
Chamfer Reference: 0.032 in.
Rod End Misalign Angle: 8 degrees
ULT. Static Radial Load (lbs.): 14,180 lbs.
Rod End Bearing Material: Stainless steel
Quantity: Sold individually.
