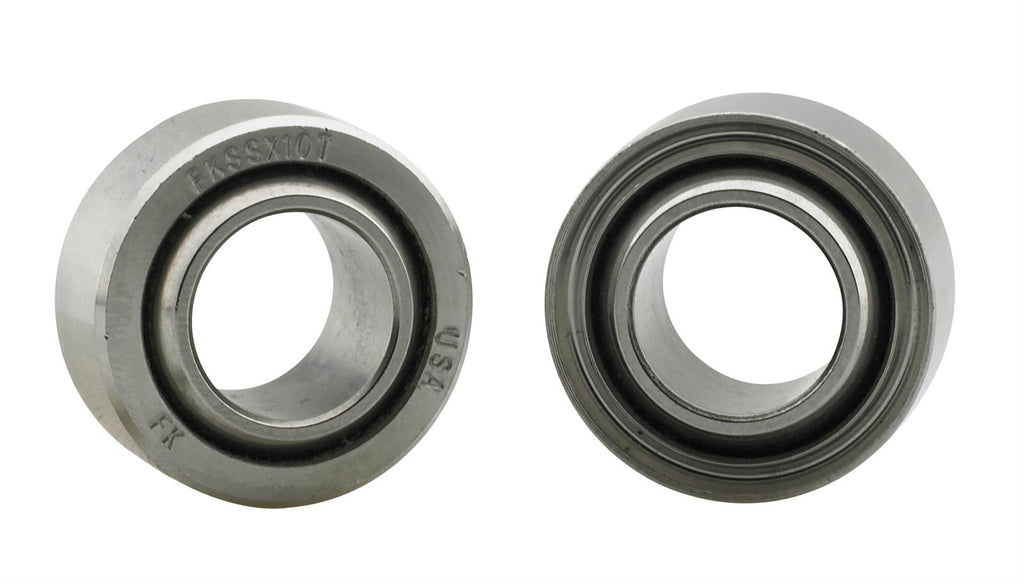

FK FKS/FKSSX Precision Narrow Series Spherical Bearings FKSSX4

FK FKS/FKSSX Precision Narrow Series spherical bearings offer strength and durability for your race car's suspension and steering. These high-quality replacements are available in heat-treated, oil-coated alloy steel—with heat-treated hard chrome plated steel balls or heat-treated stainless steel with a bonded PTFE liner to handle abuse. FK's self-lubricating PTFE liners are chemically bonded to the inner diameter of the race for a very high load-carrying capacity with greatly increased dynamic wear characteristics. Order the size and other options needed for your application.

FKS Series offers:
* 52100 heat-treated steel with hard chrome plate ball
* Alloy steel, heat-treated and oil-coated race
* PTFE liners available

FKSSX Series offers:
* 440C heat-treated stainless steel ball
* 17-4 PH heat-treated stainless steel race
* PTFE liner
Brand: FK Rod Ends
Manufacturer's Part Number: FKSSX4
Part Type: Rod End Receiver Bearings
Product Line: FK FKS/FKSSX Precision Narrow Series Spherical Bearings
HP Direct Part Number: FKB-FKSSX4
UPC: 800199660401
Receiver Race Diameter: 0.6562 in.
Race Width: 0.250 in.
Inner Ball Width: 0.343 in.
Inner Ball Diameter: 0.2500 in.
Rod End Ball Diameter: 0.500 in.
Chamfer Reference: 0.022 in.
Rod End Misalign Angle: 13.5 degrees
ULT. Static Radial Load (lbs.): 7,400 lbs.
Rod End Bearing Material: Stainless steel
Quantity: Sold individually.
