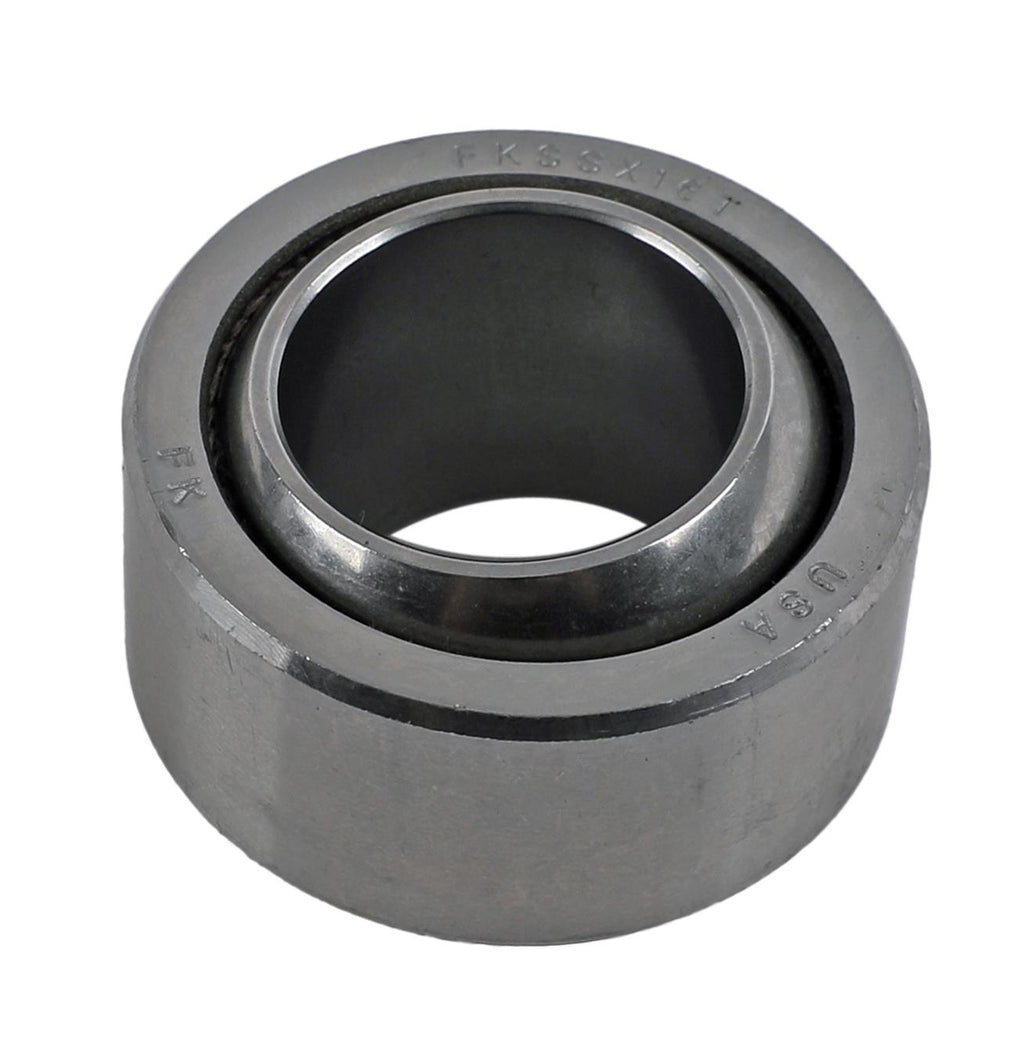

FK FKS/FKSSX Precision Narrow Series Spherical Bearings FKSSX16T

FK FKS/FKSSX Precision Narrow Series spherical bearings offer strength and durability for your race car's suspension and steering. These high-quality replacements are available in heat-treated, oil-coated alloy steel—with heat-treated hard chrome plated steel balls or heat-treated stainless steel with a bonded PTFE liner to handle abuse. FK's self-lubricating PTFE liners are chemically bonded to the inner diameter of the race for a very high load-carrying capacity with greatly increased dynamic wear characteristics. Order the size and other options needed for your application.

FKS Series offers:
* 52100 heat-treated steel with hard chrome plate ball
* Alloy steel, heat-treated and oil-coated race
* PTFE liners available

FKSSX Series offers:
* 440C heat-treated stainless steel ball
* 17-4 PH heat-treated stainless steel race
* PTFE liner
Brand: FK Rod Ends
Manufacturer's Part Number: FKSSX16T
Part Type: Rod End Receiver Bearings
Product Line: FK FKS/FKSSX Precision Narrow Series Spherical Bearings
HP Direct Part Number: FKB-FKSSX16T
Receiver Race Diameter: 1.7500 in.
Race Width: 0.797 in.
Inner Ball Width: 1.000 in.
Inner Ball Diameter: 1.0000 in.
Rod End Ball Diameter: 1.500 in.
Chamfer Reference: 0.044 in.
Rod End Misalign Angle: 10 degrees
ULT. Static Radial Load (lbs.): 82,800 lbs.
Rod End Bearing Material: Stainless steel
Quantity: Sold individually.
Notes: Bearing has a PTFE liner.
