Description

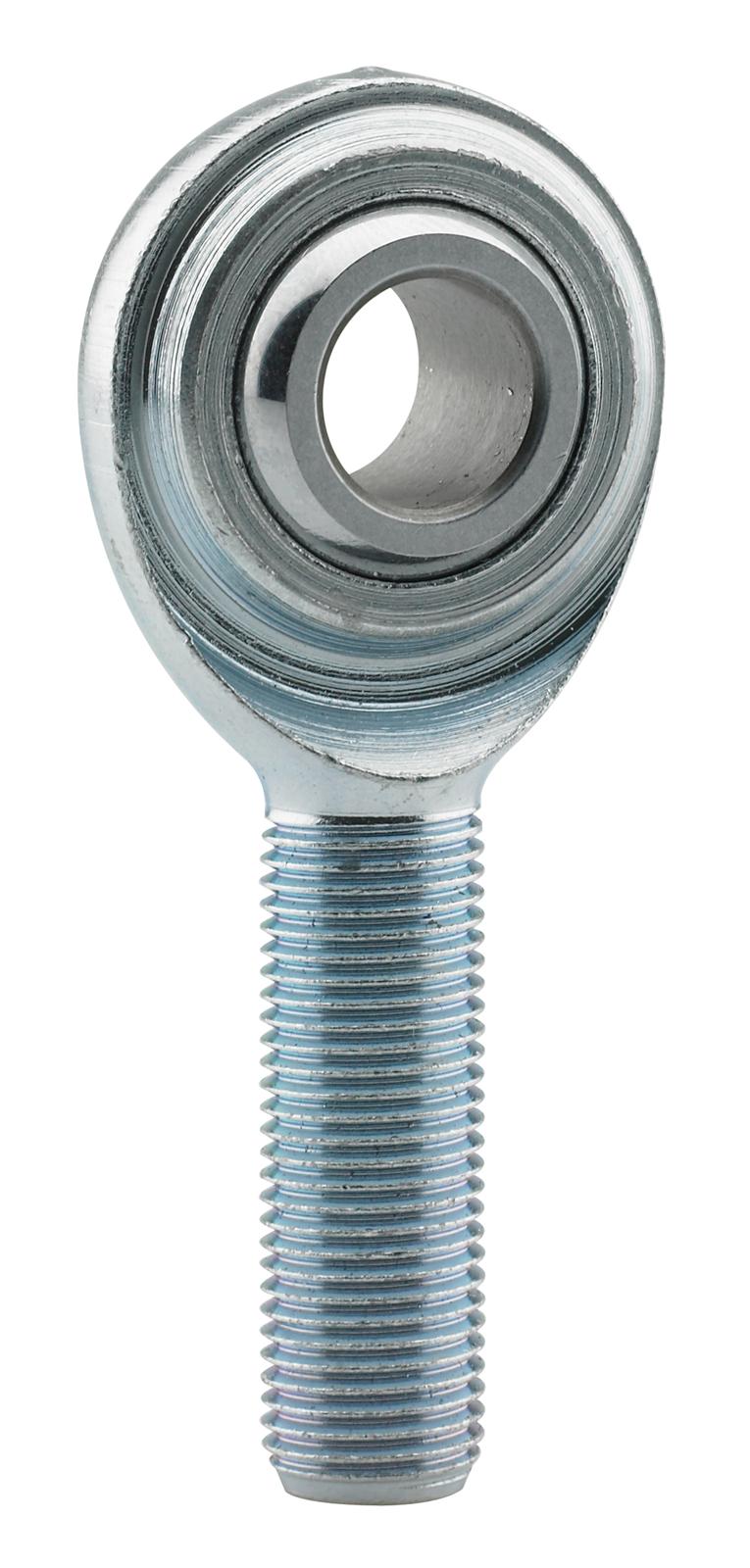

FK ECM/ECF Series rod ends are frequently used in street rod applications without high-impact or load requirements. These economy rod ends feature 2-piece, metal-to-metal construction. Their bodies are constructed using low carbon steel and are zinc plated and chromate treated for performance and durability. Their ball is made of 52100 steel and is hard chrome plated for additional strength.Brand: FK Rod Ends
Manufacturer's Part Number: ECM8
Part Type: Rod Ends
Product Line: FK ECM/ECF Series Rod Ends
HP Direct Part Number: FKB-ECM8
UPC: 800200400804
Rod End Thread Size: 1/2 in.-20
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.500 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 1.500 in.
Rod End Head Diameter: 1.312 in.
Rod End Head Width: 0.453 in.
Grease Fitting: No
Rod End Centerline Length: 2.438 in.
Heat-Treated: No
Rod End Ball Width: 0.625 in.
Rod End Misalign Angle: 20 degrees
Rod End Static Load Capacity: 8,386 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Natural
Quantity: Sold individually.
Manufacturer's Part Number: ECM8
Part Type: Rod Ends
Product Line: FK ECM/ECF Series Rod Ends
HP Direct Part Number: FKB-ECM8
UPC: 800200400804
Rod End Thread Size: 1/2 in.-20
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.500 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 1.500 in.
Rod End Head Diameter: 1.312 in.
Rod End Head Width: 0.453 in.
Grease Fitting: No
Rod End Centerline Length: 2.438 in.
Heat-Treated: No
Rod End Ball Width: 0.625 in.
Rod End Misalign Angle: 20 degrees
Rod End Static Load Capacity: 8,386 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Natural
Quantity: Sold individually.
