Description

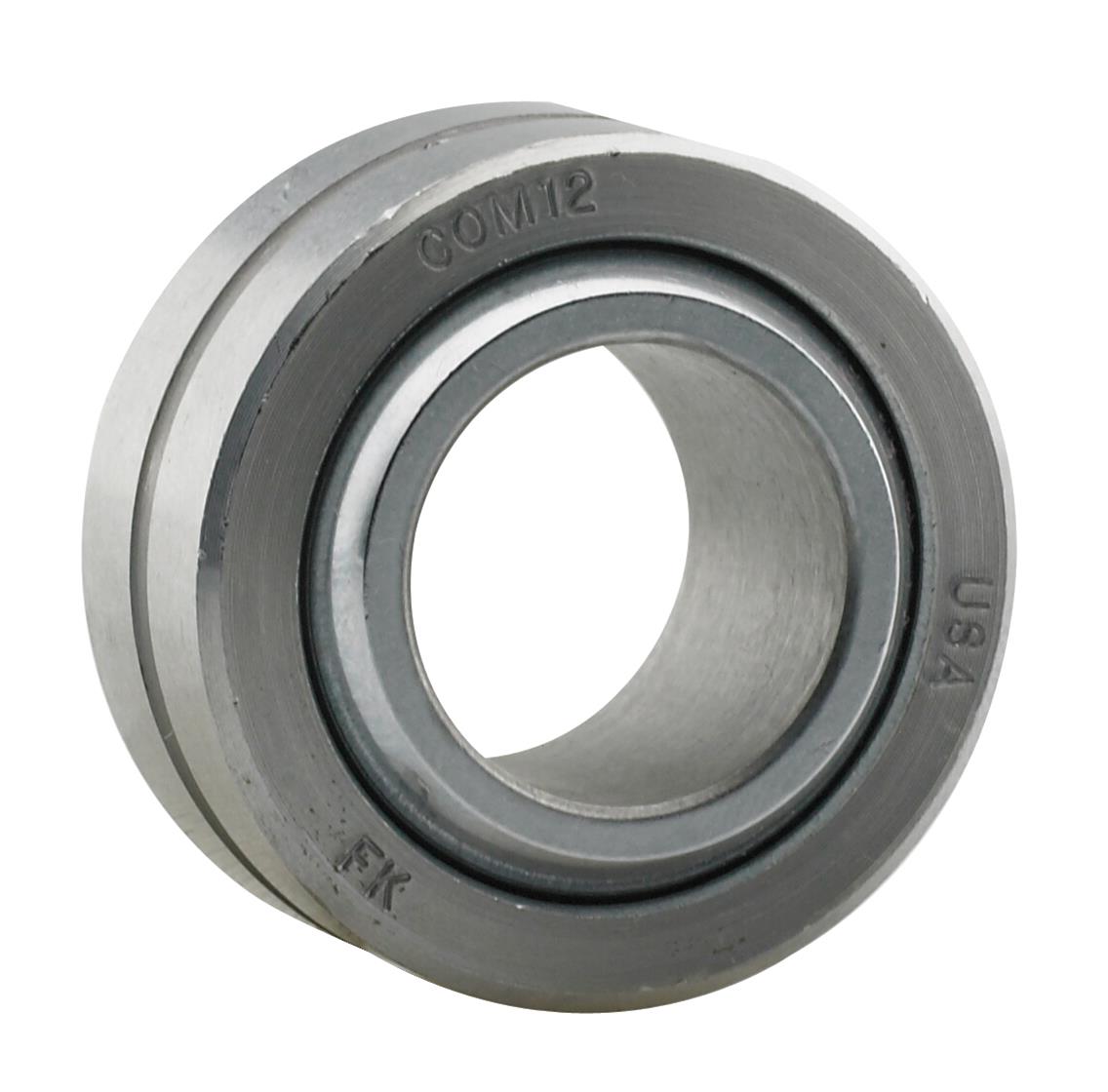

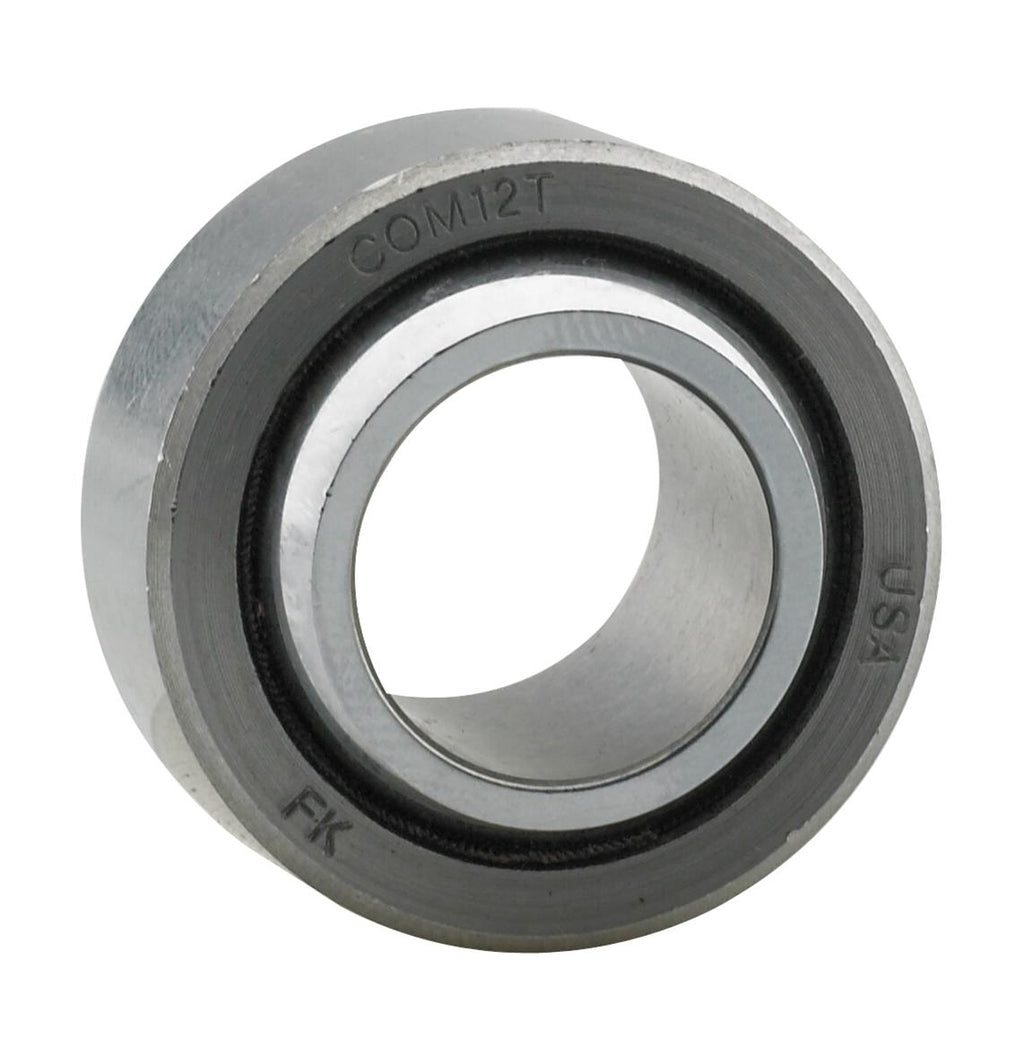

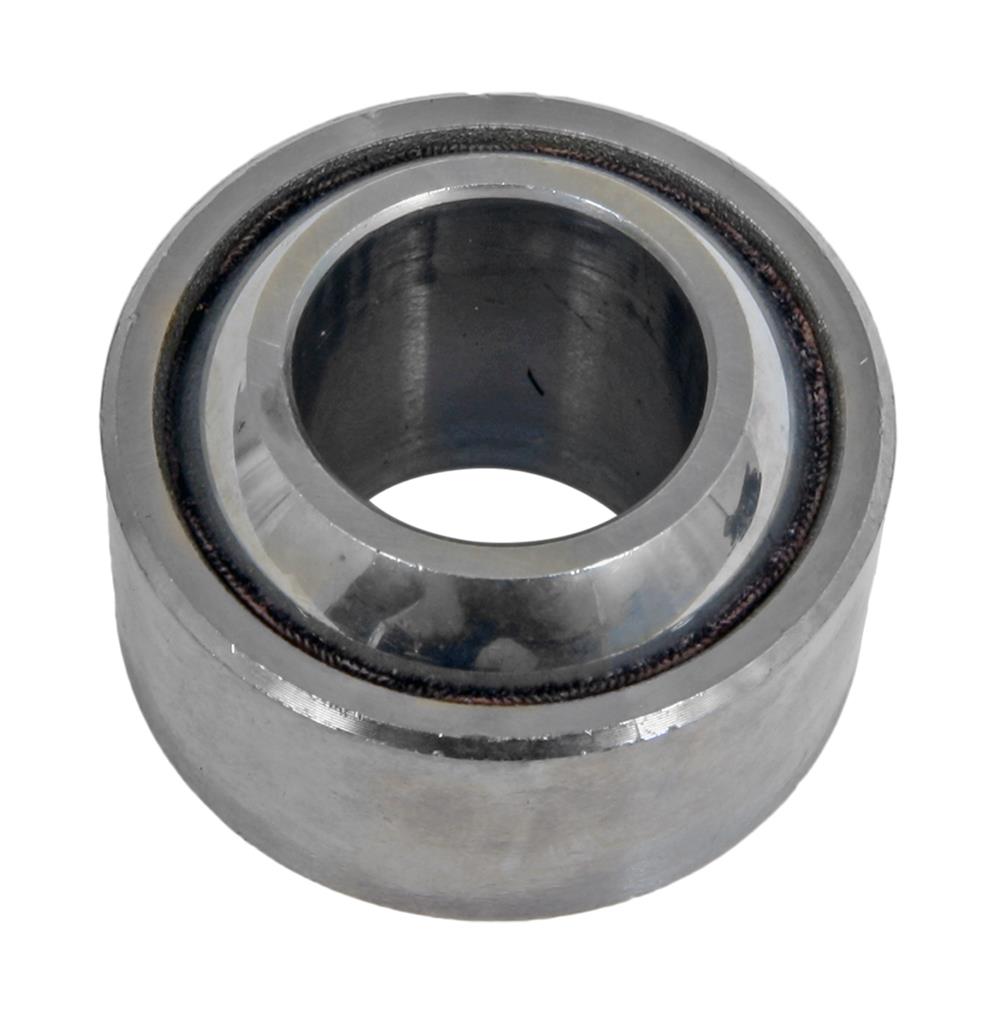

FK COM-M Series spherical bearings feature a hard chrome plated 52100 steel ball with an oil coated, low carbon steel race. Part of FK Bearing's Commercial Series, these metric bearings are offered in many sizes with or without a PTFE liner. COM-M Series spherical bearings have lubrication groove and holes in I.D. and O.D. of race, except those with the PTFE liner (no lubrication groove or holes).
Brand: FK Rod Ends
Manufacturer's Part Number: COM18MT
Part Type: Rod End Receiver Bearings
Product Line: FK COM-M Series Spherical Bearings
HP Direct Part Number: FKB-COM18MT
Receiver Race Diameter: 1.378 in.
Race Width: 0.650 in.
Inner Ball Width: 0.906 in.
Inner Ball Diameter: 0.7087 in.
Rod End Ball Diameter: 1.250 in.
Chamfer Reference: 0.032 in.
Rod End Misalign Angle: 15 degrees
ULT. Static Radial Load (lbs.): 26,527 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
Notes: Bearing has PTFE liner.
Brand: FK Rod Ends
Manufacturer's Part Number: COM18MT
Part Type: Rod End Receiver Bearings
Product Line: FK COM-M Series Spherical Bearings
HP Direct Part Number: FKB-COM18MT
Receiver Race Diameter: 1.378 in.
Race Width: 0.650 in.
Inner Ball Width: 0.906 in.
Inner Ball Diameter: 0.7087 in.
Rod End Ball Diameter: 1.250 in.
Chamfer Reference: 0.032 in.
Rod End Misalign Angle: 15 degrees
ULT. Static Radial Load (lbs.): 26,527 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
Notes: Bearing has PTFE liner.
