Description

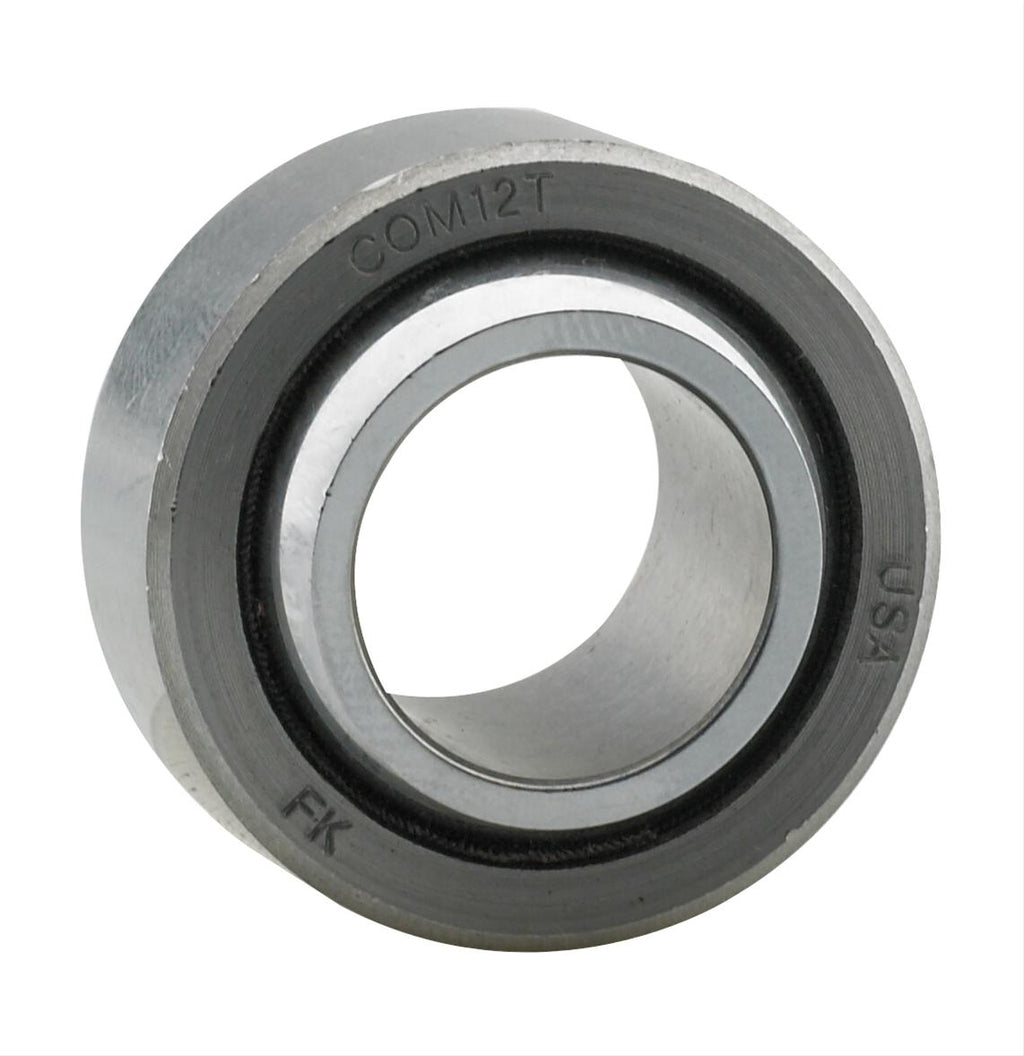

FK COM/COMH spherical bearings are part of their commercial series. Precision-made from quality materials, these rod end bearings are tough and reliable to handle your stressed applications. Order the size, load rating, and other options needed for replacement or upgrade.
COM/COMH Series offers:
* 52100 heat-treated steel with hard chrome plate ball
* Low-carbon steel and oil coated race
Brand: FK Rod Ends
Manufacturer's Part Number: COM6
Part Type: Rod End Receiver Bearings
Product Line: FK COM/COMH Series Spherical Bearings
HP Direct Part Number: FKB-COM6
UPC: 800199610604
Receiver Race Diameter: 0.8125 in.
Race Width: 0.312 in.
Inner Ball Width: 0.375 in.
Inner Ball Diameter: 0.3750 in.
Rod End Ball Diameter: 0.656 in.
Chamfer Reference: 0.032 in.
Rod End Misalign Angle: 10 degrees
ULT. Static Radial Load (lbs.): 8,400 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
COM/COMH Series offers:
* 52100 heat-treated steel with hard chrome plate ball
* Low-carbon steel and oil coated race
Brand: FK Rod Ends
Manufacturer's Part Number: COM6
Part Type: Rod End Receiver Bearings
Product Line: FK COM/COMH Series Spherical Bearings
HP Direct Part Number: FKB-COM6
UPC: 800199610604
Receiver Race Diameter: 0.8125 in.
Race Width: 0.312 in.
Inner Ball Width: 0.375 in.
Inner Ball Diameter: 0.3750 in.
Rod End Ball Diameter: 0.656 in.
Chamfer Reference: 0.032 in.
Rod End Misalign Angle: 10 degrees
ULT. Static Radial Load (lbs.): 8,400 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
