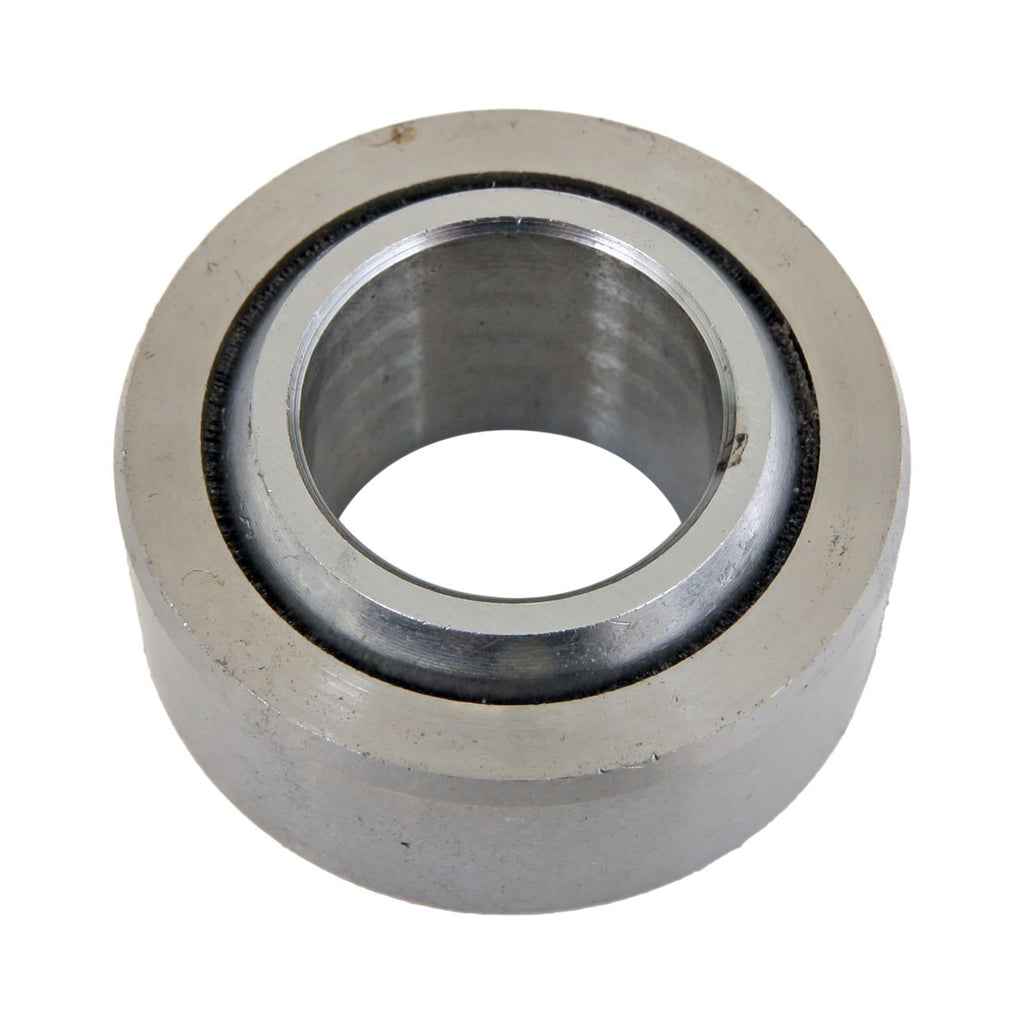

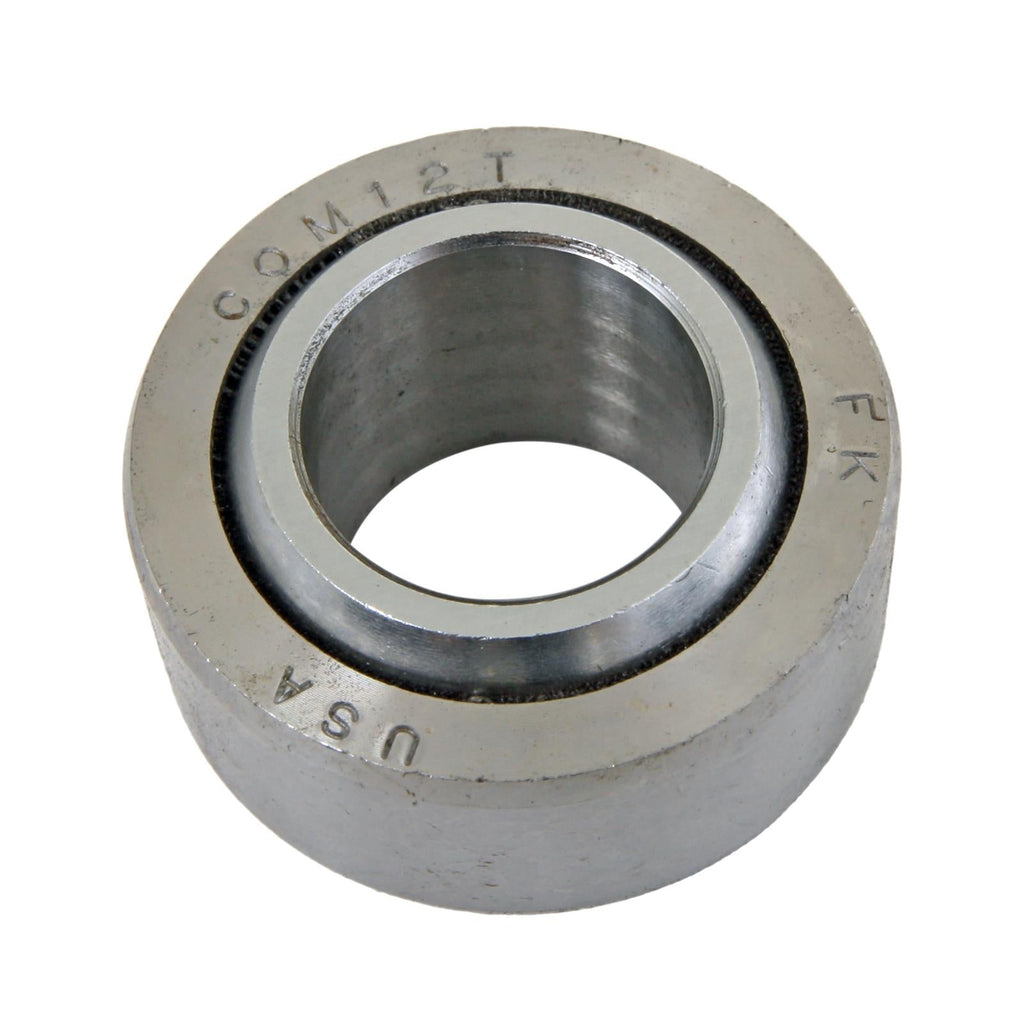

FK COM/COMH Series Spherical Bearings COM12T-F1

Brand: FK Rod Ends
Manufacturer's Part Number: COM12T-F1
Part Type: Rod End Receiver Bearings
Product Line: FK COM/COMH Series Spherical Bearings
Automotive Fittings Part Number: FKB-COM12TF1
UPC: 800199611212
Receiver Race Diameter: 1.4375 in.
Race Width: 0.750 in.
Inner Ball Width: 0.593 in.
Inner Ball Diameter: 0.7500 in.
Rod End Ball Diameter: 1.187 in.
Chamfer Reference: 0.044 in.
Rod End Misalign Angle: 9 degrees
ULT. Static Radial Load (lbs.): 31,920 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
Notes: Bearing has a PTFE liner.
Description:
FK COM/COMH spherical bearings are part of their commercial series. Precision-made from quality materials, these rod end bearings are tough and reliable to handle your stressed applications. Order the size, load rating, and other options needed for replacement or upgrade.

COM/COMH Series offers:

* 52100 heat-treated steel with hard chrome plate ball
* Low-carbon steel and oil coated race
