Description

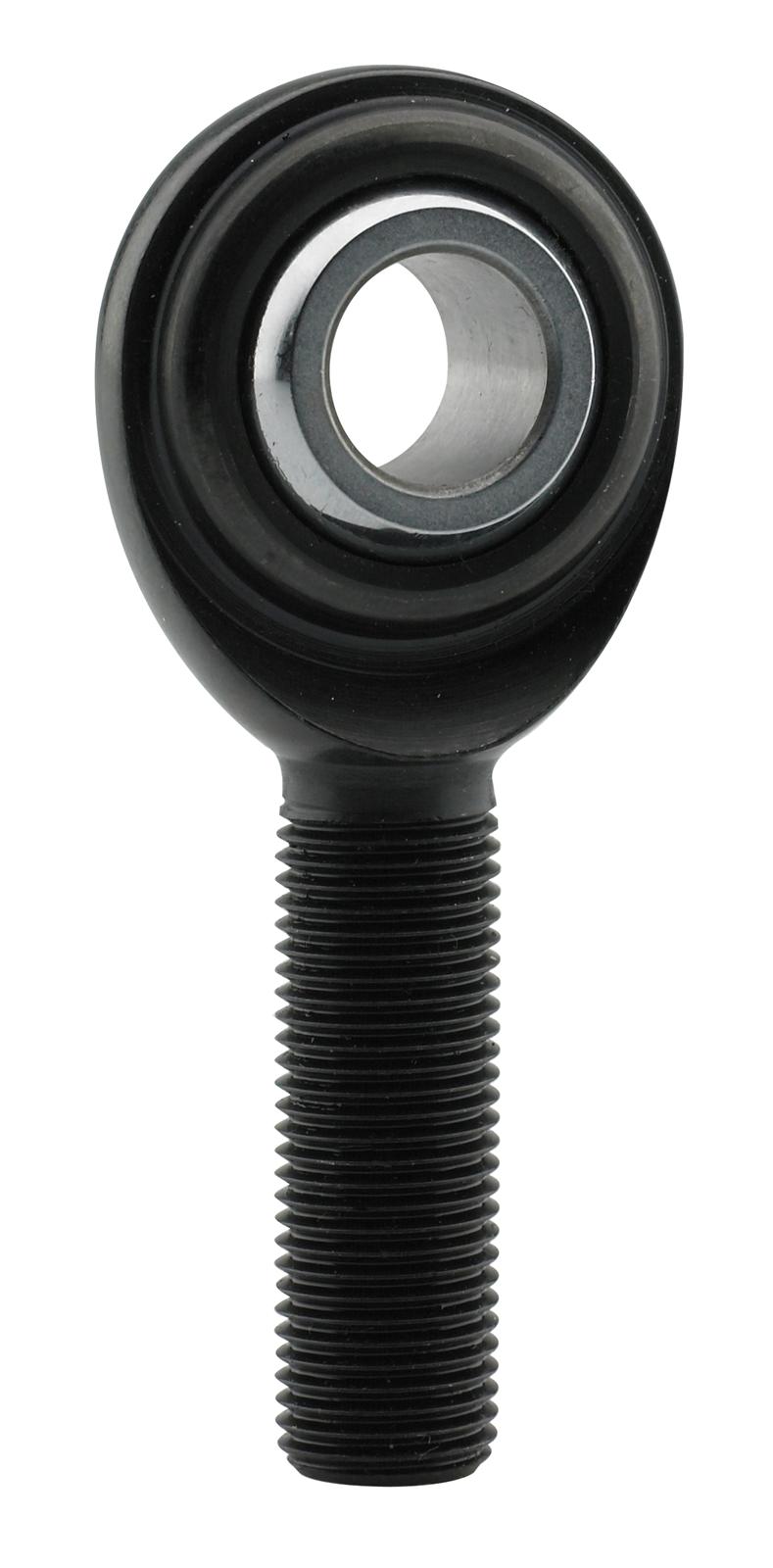

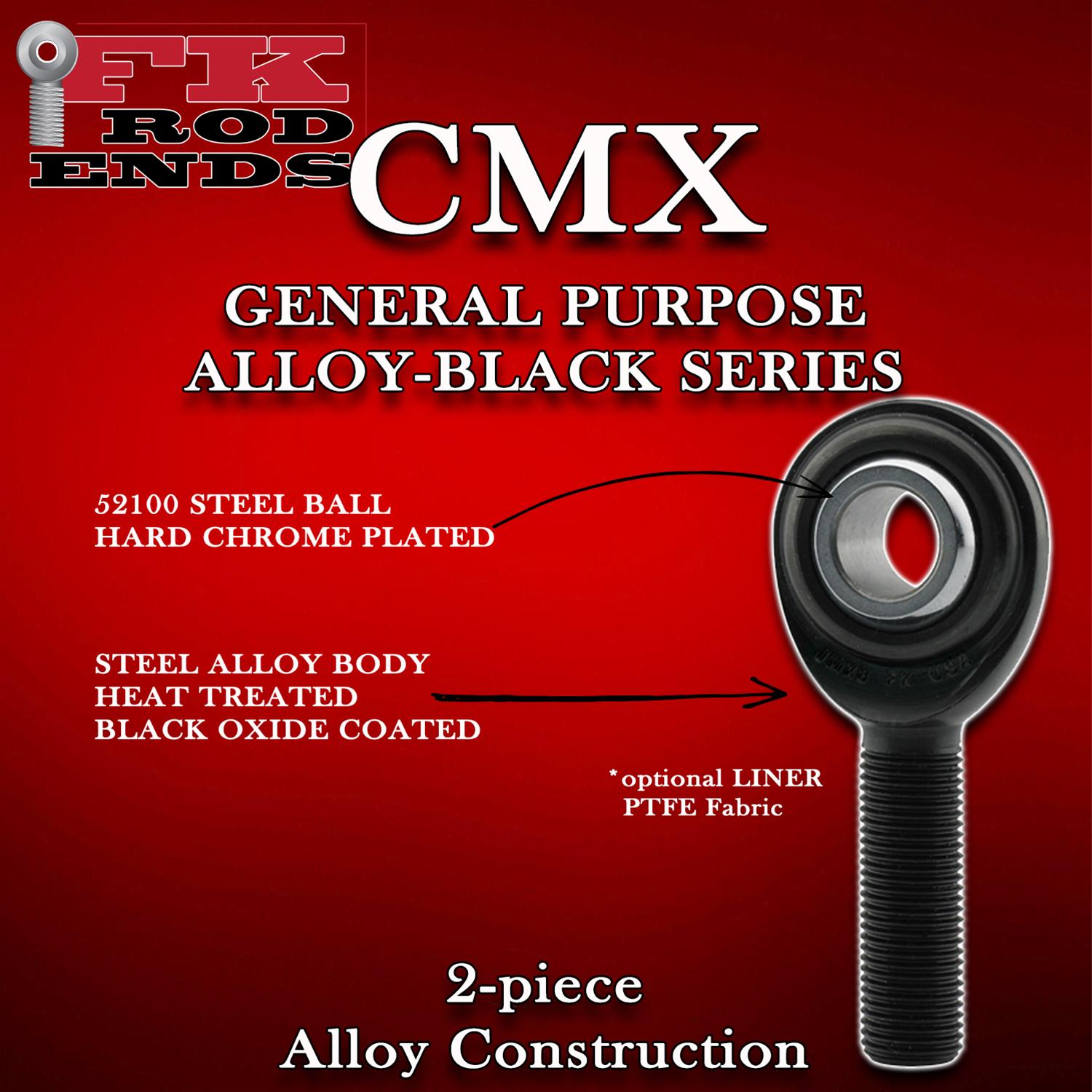

FK CMX Series rod ends are economy high-strength rod ends featuring 2-piece, metal-to-metal construction. CMX Series rod ends have an alloy steel body that's heat-treated for strength and a black-oxide finish for durability and corrosion resistance. The ball is made of 52100 steel and is hard chrome plated for long life.Brand: FK Rod Ends
Manufacturer's Part Number: CMX10-8T
Part Type: Rod Ends
Product Line: FK CMX Series Rod Ends
HP Direct Part Number: FKB-CMX108T
UPC: 800199211115
Rod End Thread Size: 5/8 in.-18
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.500 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.625 in.
Rod End Head Diameter: 1.500 in.
Rod End Head Width: 0.484 in.
Grease Fitting: No
Rod End Centerline Length: 2.625 in.
Heat-Treated: Yes
Rod End Ball Width: 0.750 in.
Rod End Misalign Angle: 26 degrees
Rod End Static Load Capacity: 18,000 lbs.
Rod End Material: Alloy steel
Rod End Finish: Black oxide
Quantity: Sold individually.
Manufacturer's Part Number: CMX10-8T
Part Type: Rod Ends
Product Line: FK CMX Series Rod Ends
HP Direct Part Number: FKB-CMX108T
UPC: 800199211115
Rod End Thread Size: 5/8 in.-18
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.500 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.625 in.
Rod End Head Diameter: 1.500 in.
Rod End Head Width: 0.484 in.
Grease Fitting: No
Rod End Centerline Length: 2.625 in.
Heat-Treated: Yes
Rod End Ball Width: 0.750 in.
Rod End Misalign Angle: 26 degrees
Rod End Static Load Capacity: 18,000 lbs.
Rod End Material: Alloy steel
Rod End Finish: Black oxide
Quantity: Sold individually.
