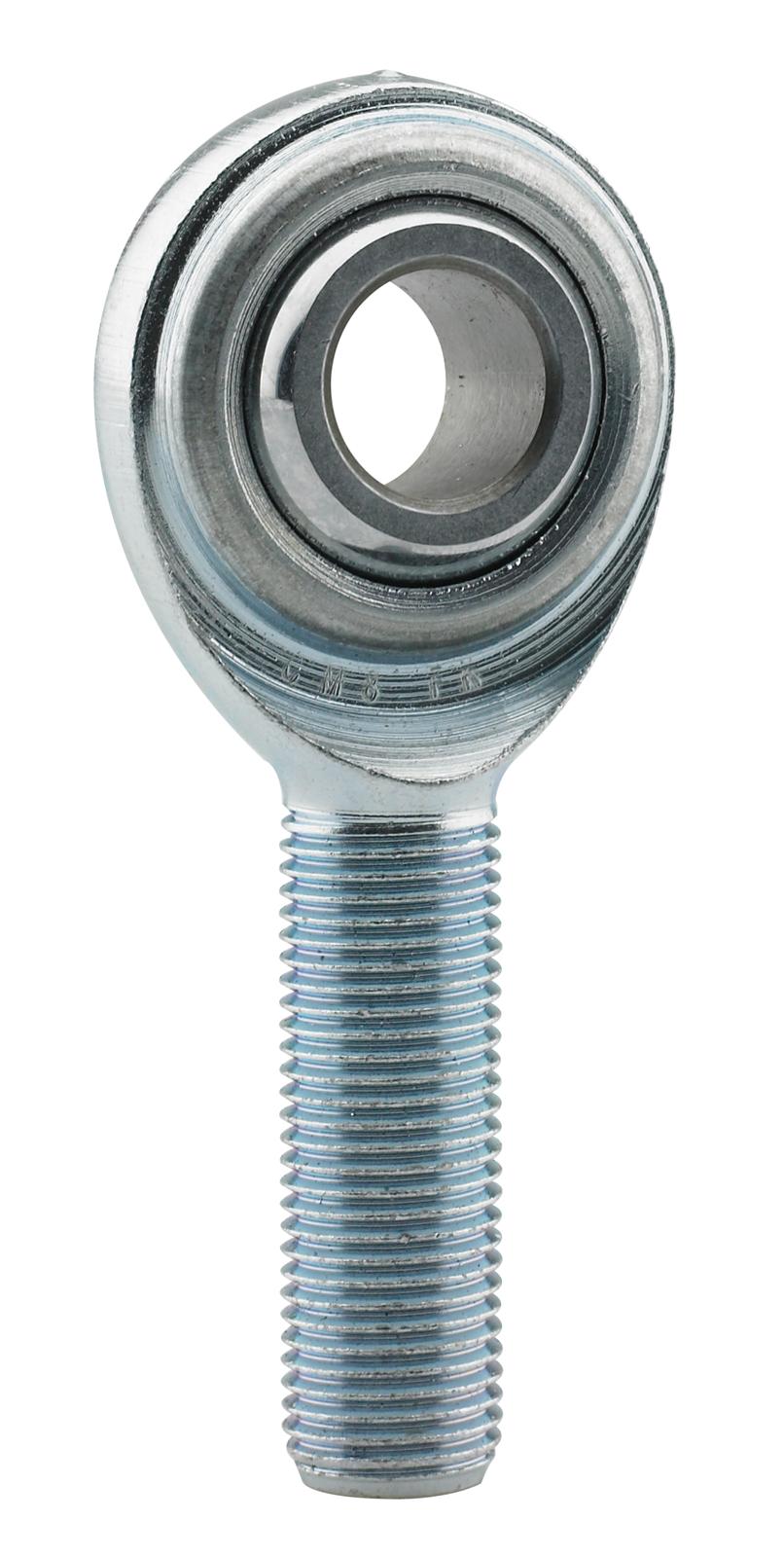

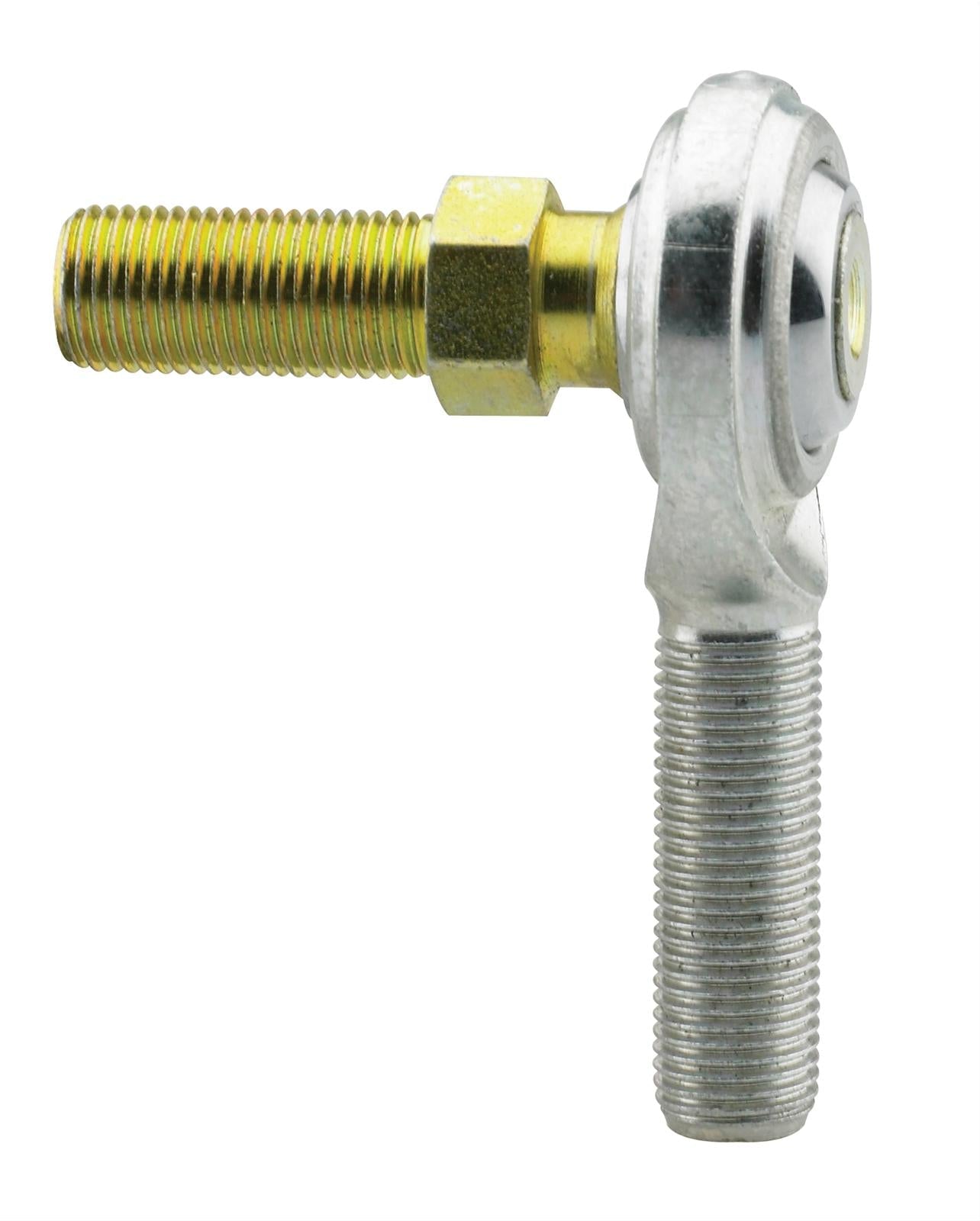

FK CM/CF Series Rod Ends CML10MF

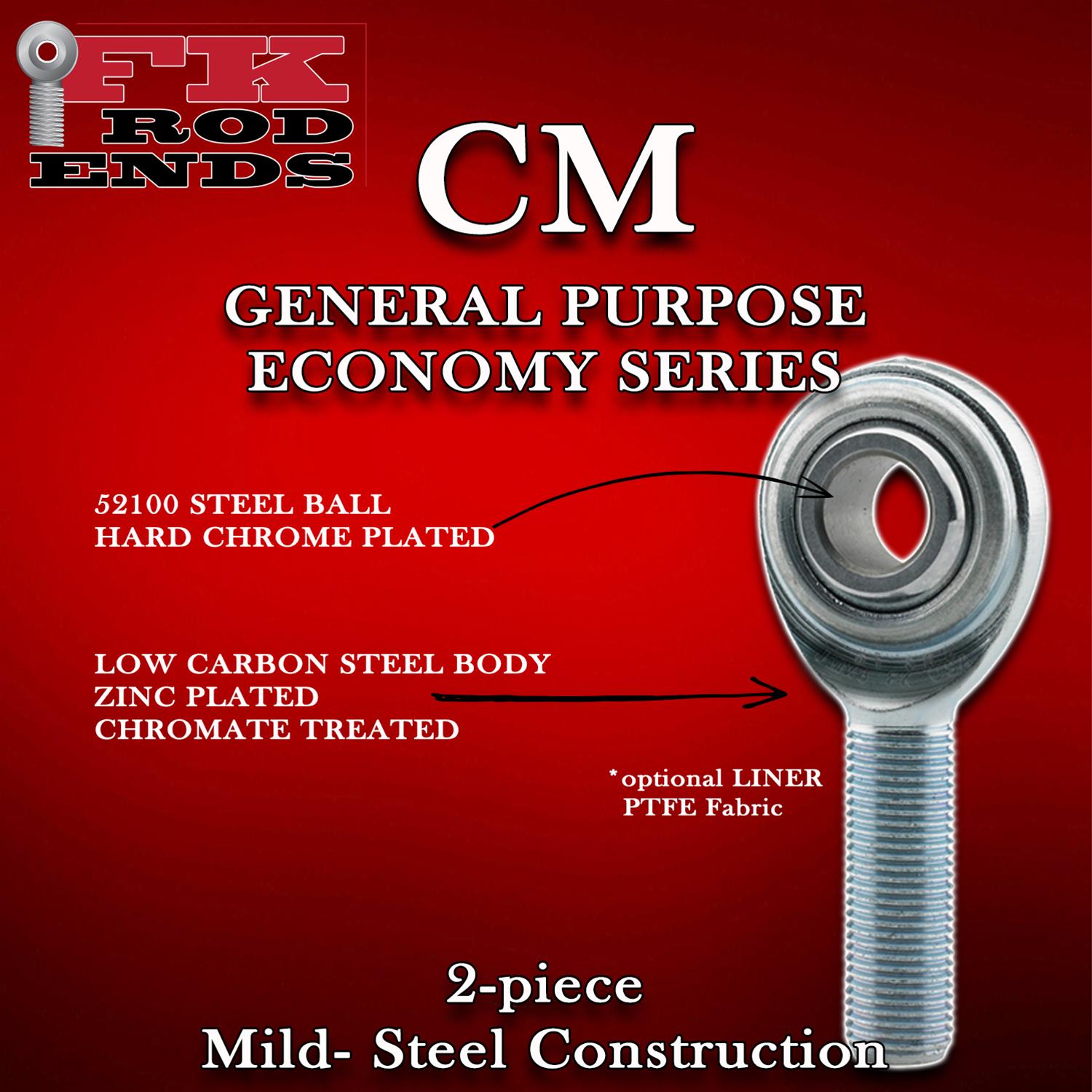

FK CM/CF Series rod ends are economical replacements featuring 2-piece, metal-to-metal construction. Their bodies are made using low-carbon steel that's zinc plated and chromate treated; and their balls are made of 52100 hard chrome plated steel. These high-quality rod ends are often used in street rod applications without high-impact or load requirements. Order the size and thread options needed for your application.Brand: FK Rod Ends
Manufacturer's Part Number: CML10MF
Part Type: Rod Ends
Product Line: FK CM/CF Series Rod Ends
HP Direct Part Number: FKB-CML10MF
UPC: 800199181005
Rod End Thread Size: M10 x 1.25 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 10.000mm
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 29.000mm
Rod End Head Diameter: 27.000mm
Rod End Head Width: 9.500mm
Grease Fitting: No
Rod End Centerline Length: 48.000mm
Heat-Treated: Yes
Rod End Ball Width: 14.000mm
Rod End Misalign Angle: 26 degrees
Rod End Static Load Capacity: 4,726 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
