Description

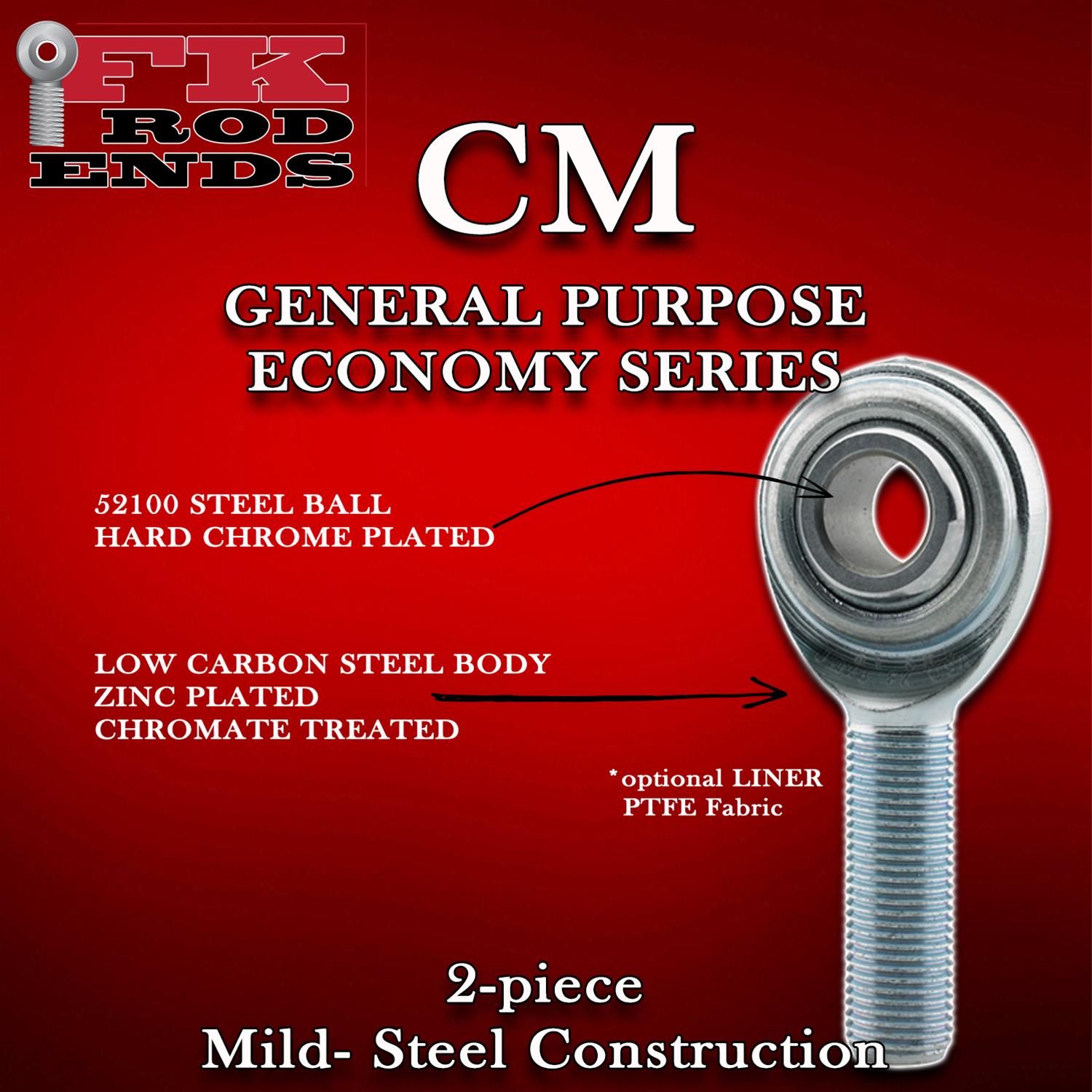

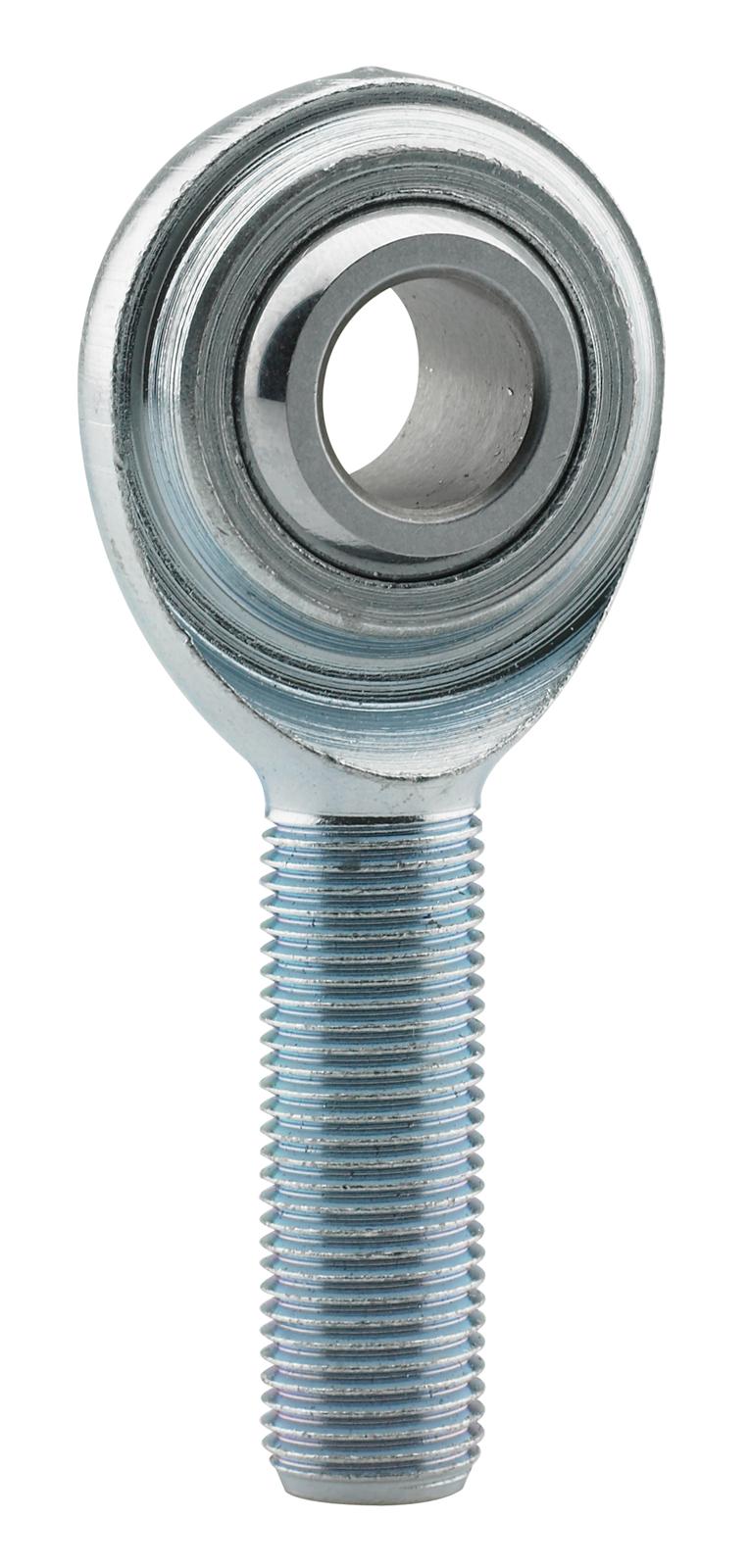

FK CM/CF Series rod ends are economical replacements featuring 2-piece, metal-to-metal construction. Their bodies are made using low-carbon steel that's zinc plated and chromate treated; and their balls are made of 52100 hard chrome plated steel. These high-quality rod ends are often used in street rod applications without high-impact or load requirements. Order the size and thread options needed for your application.Brand: FK Rod Ends
Manufacturer's Part Number: CML10
Part Type: Rod Ends
Product Line: FK CM/CF Series Rod Ends
HP Direct Part Number: FKB-CML10
UPC: 800199161007
Rod End Thread Size: 5/8 in.-18 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.625 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 1.625 in.
Rod End Head Diameter: 1.500 in.
Rod End Head Width: 0.484 in.
Grease Fitting: No
Rod End Centerline Length: 2.625 in.
Heat-Treated: No
Rod End Ball Width: 0.750 in.
Rod End Misalign Angle: 26 degrees
Rod End Static Load Capacity: 9,813 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Natural
Quantity: Sold individually.
Manufacturer's Part Number: CML10
Part Type: Rod Ends
Product Line: FK CM/CF Series Rod Ends
HP Direct Part Number: FKB-CML10
UPC: 800199161007
Rod End Thread Size: 5/8 in.-18 LH
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.625 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 1.625 in.
Rod End Head Diameter: 1.500 in.
Rod End Head Width: 0.484 in.
Grease Fitting: No
Rod End Centerline Length: 2.625 in.
Heat-Treated: No
Rod End Ball Width: 0.750 in.
Rod End Misalign Angle: 26 degrees
Rod End Static Load Capacity: 9,813 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Natural
Quantity: Sold individually.
