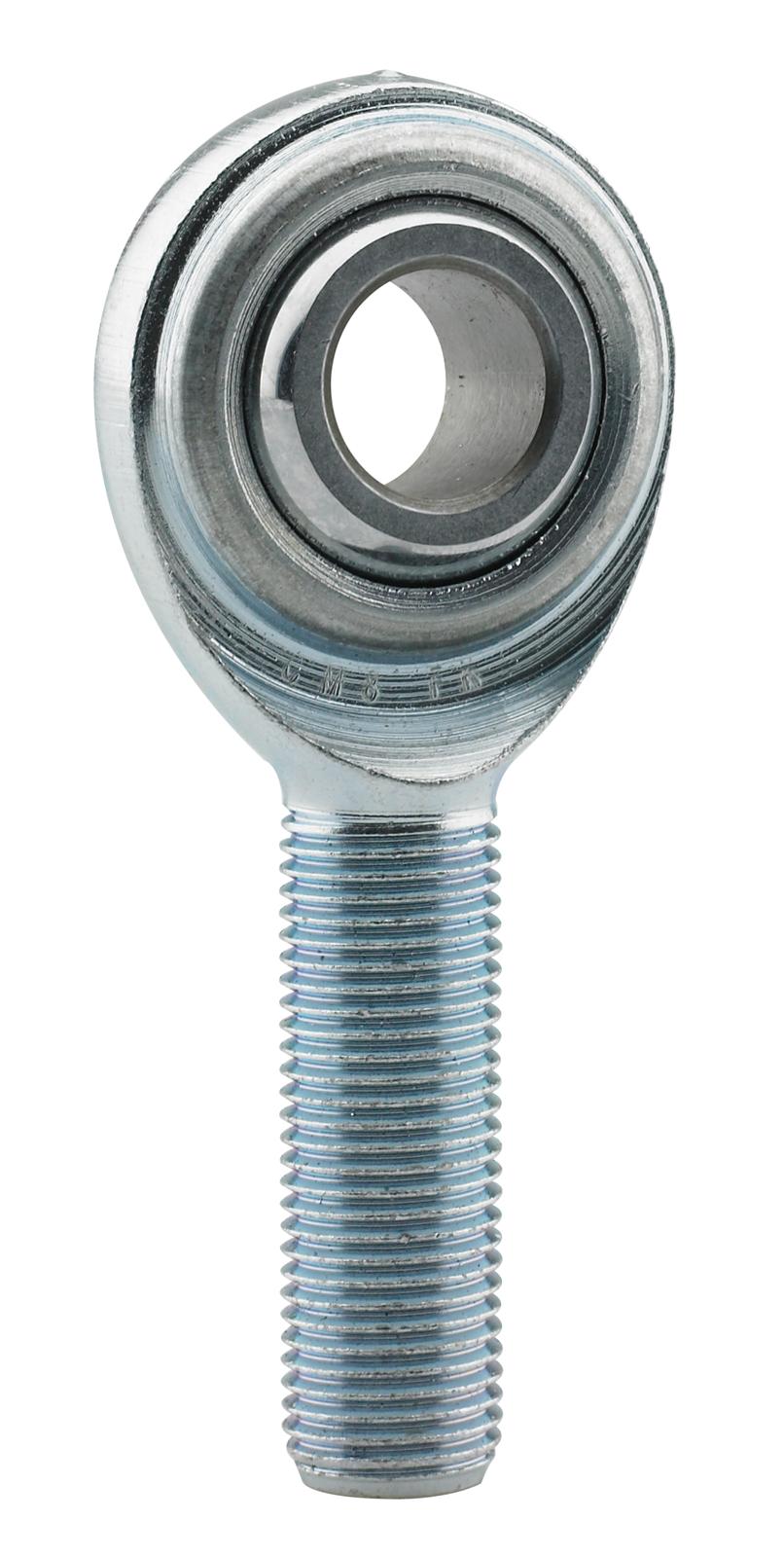

FK CM/CF Series Rod Ends CM6M

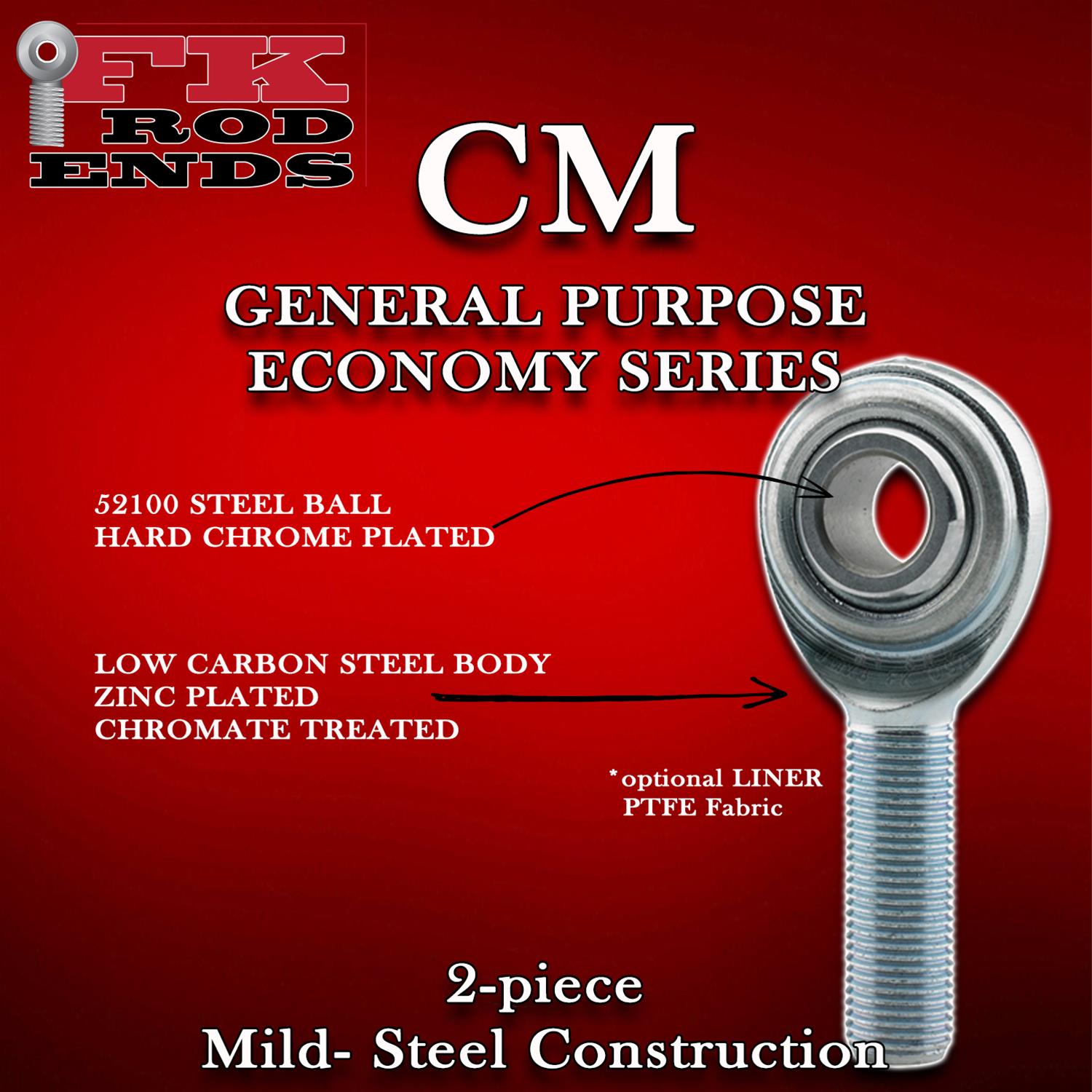

FK CM/CF Series rod ends are economical replacements featuring 2-piece, metal-to-metal construction. Their bodies are made using low-carbon steel that's zinc plated and chromate treated; and their balls are made of 52100 hard chrome plated steel. These high-quality rod ends are often used in street rod applications without high-impact or load requirements. Order the size and thread options needed for your application.Brand: FK Rod Ends
Manufacturer's Part Number: CM6M
Part Type: Rod Ends
Product Line: FK CM/CF Series Rod Ends
HP Direct Part Number: FKB-CM6M
UPC: 800199190601
Rod End Thread Size: M6 x 1.0
Rod End Attachment: Male threads
Rod End Head Bore Size: 6.000mm
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 22.000mm
Rod End Head Diameter: 19.000mm
Rod End Head Width: 6.250mm
Grease Fitting: No
Rod End Centerline Length: 36.000mm
Heat-Treated: Yes
Rod End Ball Width: 9.000mm
Rod End Misalign Angle: 23 degrees
Rod End Static Load Capacity: 1,640 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
