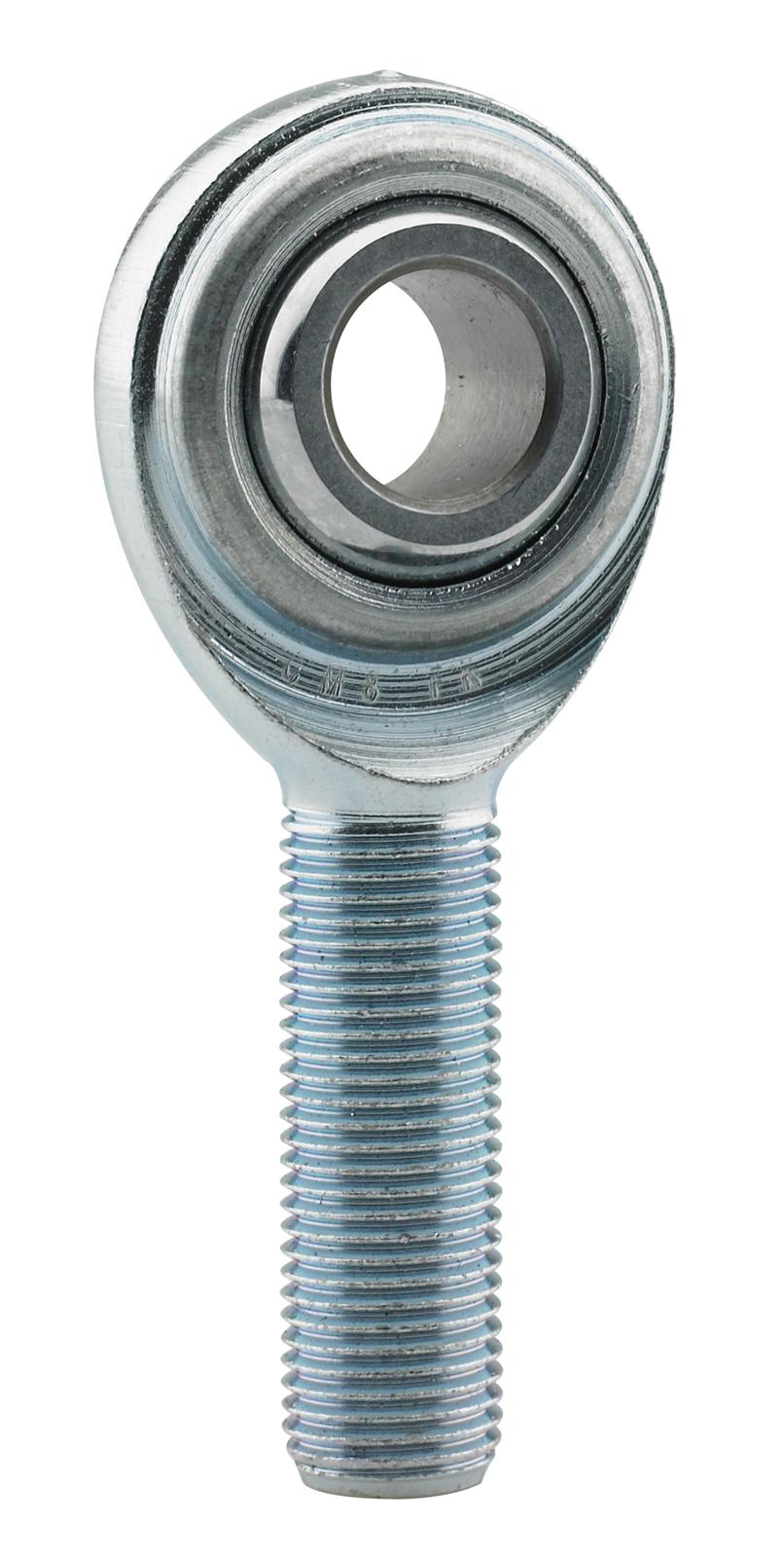

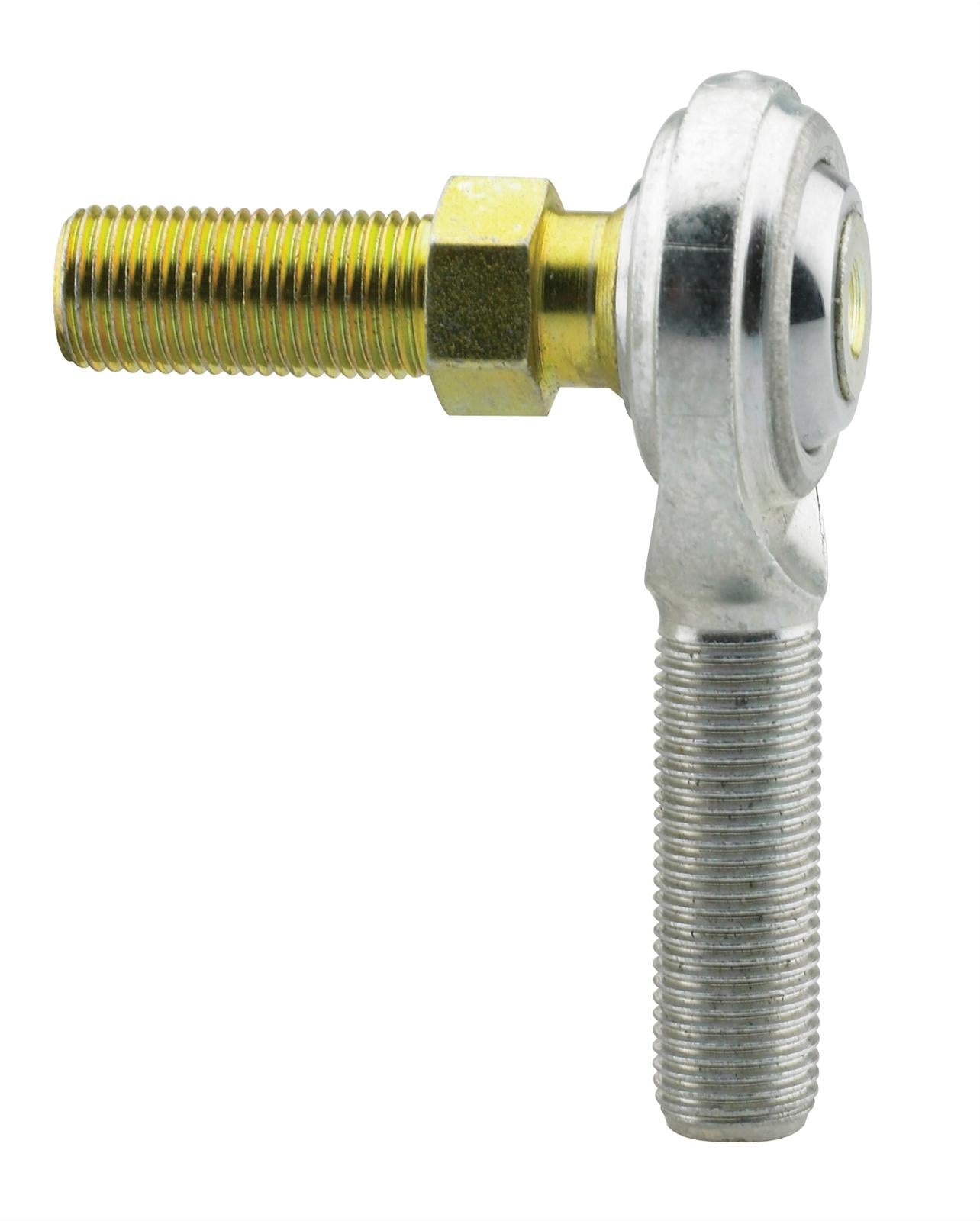

FK CM/CF Series Rod Ends CM12M

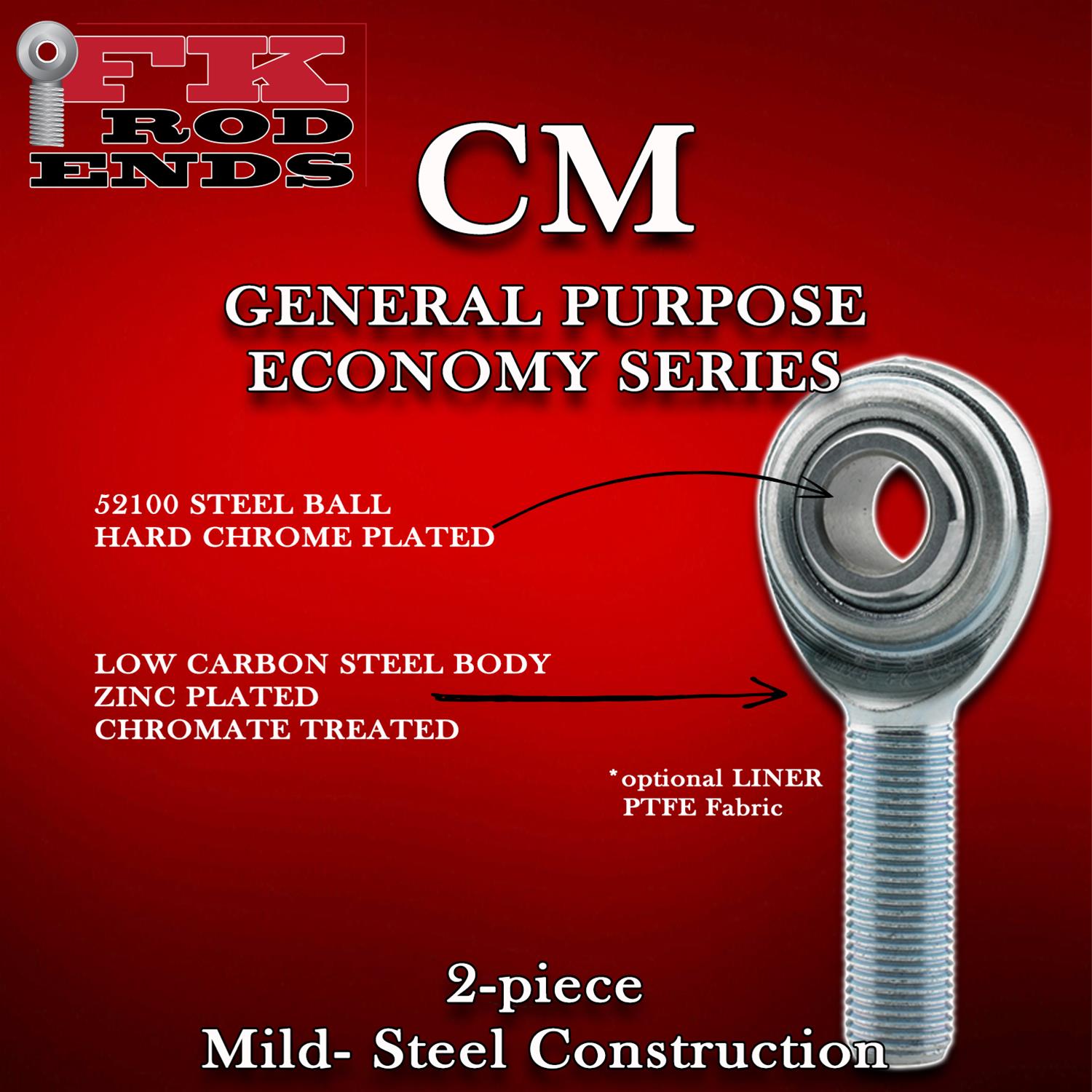

FK CM/CF Series rod ends are economical replacements featuring 2-piece, metal-to-metal construction. Their bodies are made using low-carbon steel that's zinc plated and chromate treated; and their balls are made of 52100 hard chrome plated steel. These high-quality rod ends are often used in street rod applications without high-impact or load requirements. Order the size and thread options needed for your application.Brand: FK Rod Ends
Manufacturer's Part Number: CM12M
Part Type: Rod Ends
Product Line: FK CM/CF Series Rod Ends
HP Direct Part Number: FKB-CM12M
UPC: 800199191202
Rod End Thread Size: M12 x 1.75
Rod End Attachment: Male threads
Rod End Head Bore Size: 12.000mm
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 33.000mm
Rod End Head Diameter: 30.000mm
Rod End Head Width: 10.750mm
Grease Fitting: No
Rod End Centerline Length: 54.000mm
Heat-Treated: Yes
Rod End Ball Width: 16.000mm
Rod End Misalign Angle: 27 degrees
Rod End Static Load Capacity: 5,804 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
