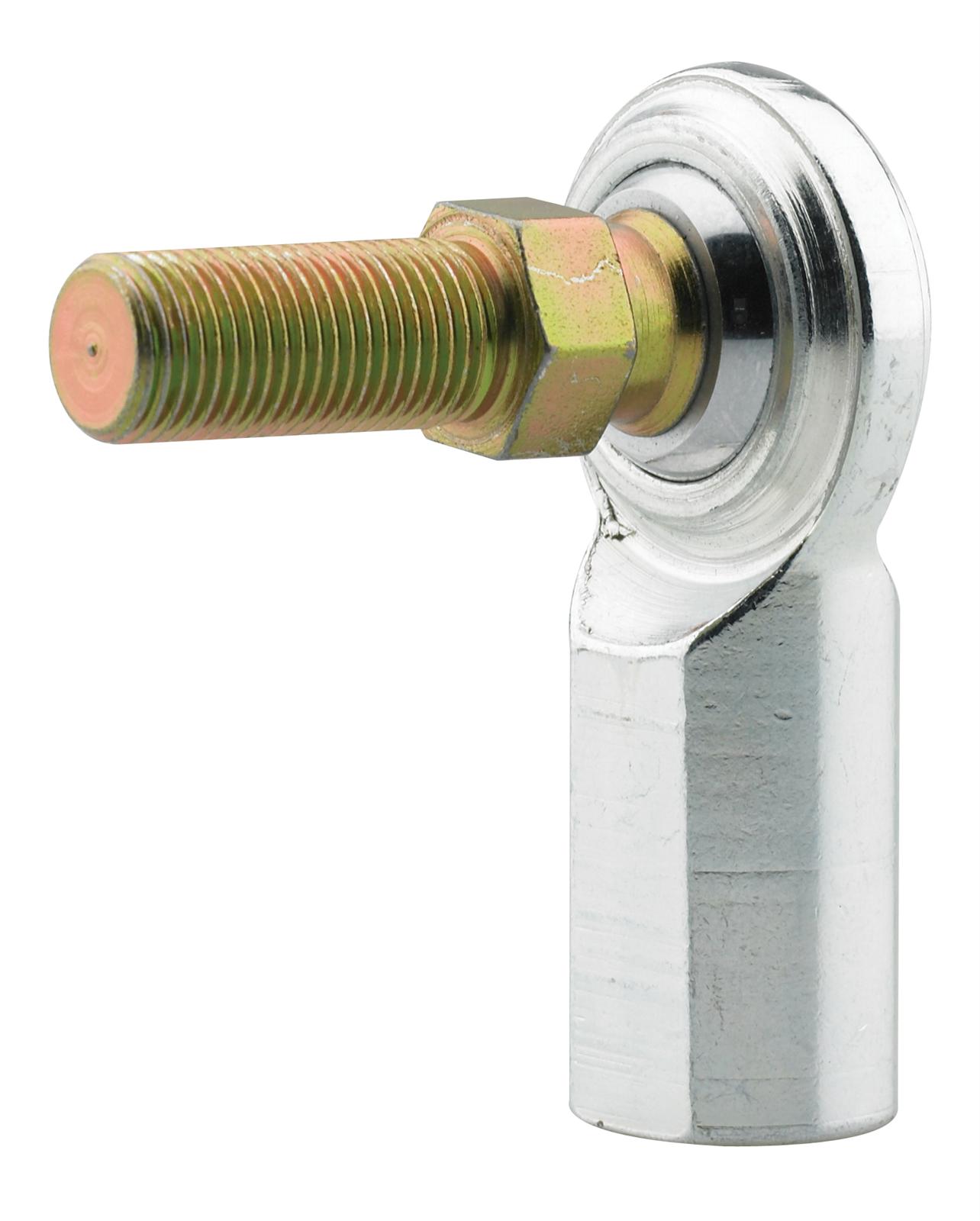

FK CM/CF Series Rod Ends CF7Y

FK CM/CF Series rod ends are economical replacements featuring 2-piece, metal-to-metal construction. Their bodies are made using low-carbon steel that's zinc plated and chromate treated; and their balls are made of 52100 hard chrome plated steel. These high-quality rod ends are often used in street rod applications without high-impact or load requirements. Order the size and thread options needed for your application.Brand: FK Rod Ends
Manufacturer's Part Number: CF7Y
Part Type: Rod Ends
Product Line: FK CM/CF Series Rod Ends
HP Direct Part Number: FKB-CF7Y
UPC: 800199090758
Rod End Thread Size: 7/16 in.-20
Rod End Attachment: Female threads
Rod End Head Bore Size: 0.438 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 0.937 in.
Rod End Head Diameter: 1.125 in.
Rod End Head Width: 0.406 in.
Grease Fitting: No
Rod End Centerline Length: 1.812 in.
Heat-Treated: No
Rod End Ball Width: 0.562 in.
Rod End Misalign Angle: 21 degrees
Rod End Static Load Capacity: 6,420 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Zinc plated
Quantity: Sold individually.
Notes: Comes with press-in stud in rod end bore.
