Description

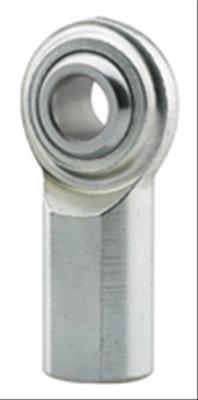

FK CM/CF Series rod ends are economical replacements featuring 2-piece, metal-to-metal construction. Their bodies are made using low-carbon steel that's zinc plated and chromate treated; and their balls are made of 52100 hard chrome plated steel. These high-quality rod ends are often used in street rod applications without high-impact or load requirements. Order the size and thread options needed for your application.Brand: FK Rod Ends
Manufacturer's Part Number: CF12
Part Type: Rod Ends
Product Line: FK CM/CF Series Rod Ends
HP Direct Part Number: FKB-CF12
UPC: 800199091205
Rod End Thread Size: 3/4 in.-16
Rod End Attachment: Female threads
Rod End Head Bore Size: 0.750 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 1.562 in.
Rod End Head Diameter: 1.750 in.
Rod End Head Width: 0.593 in.
Grease Fitting: No
Rod End Centerline Length: 2.875 in.
Heat-Treated: No
Rod End Ball Width: 0.875 in.
Rod End Misalign Angle: 24 degrees
Rod End Static Load Capacity: 14,250 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Natural
Quantity: Sold individually.
Manufacturer's Part Number: CF12
Part Type: Rod Ends
Product Line: FK CM/CF Series Rod Ends
HP Direct Part Number: FKB-CF12
UPC: 800199091205
Rod End Thread Size: 3/4 in.-16
Rod End Attachment: Female threads
Rod End Head Bore Size: 0.750 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 1.562 in.
Rod End Head Diameter: 1.750 in.
Rod End Head Width: 0.593 in.
Grease Fitting: No
Rod End Centerline Length: 2.875 in.
Heat-Treated: No
Rod End Ball Width: 0.875 in.
Rod End Misalign Angle: 24 degrees
Rod End Static Load Capacity: 14,250 lbs.
Rod End Material: Low carbon steel
Rod End Finish: Natural
Quantity: Sold individually.
