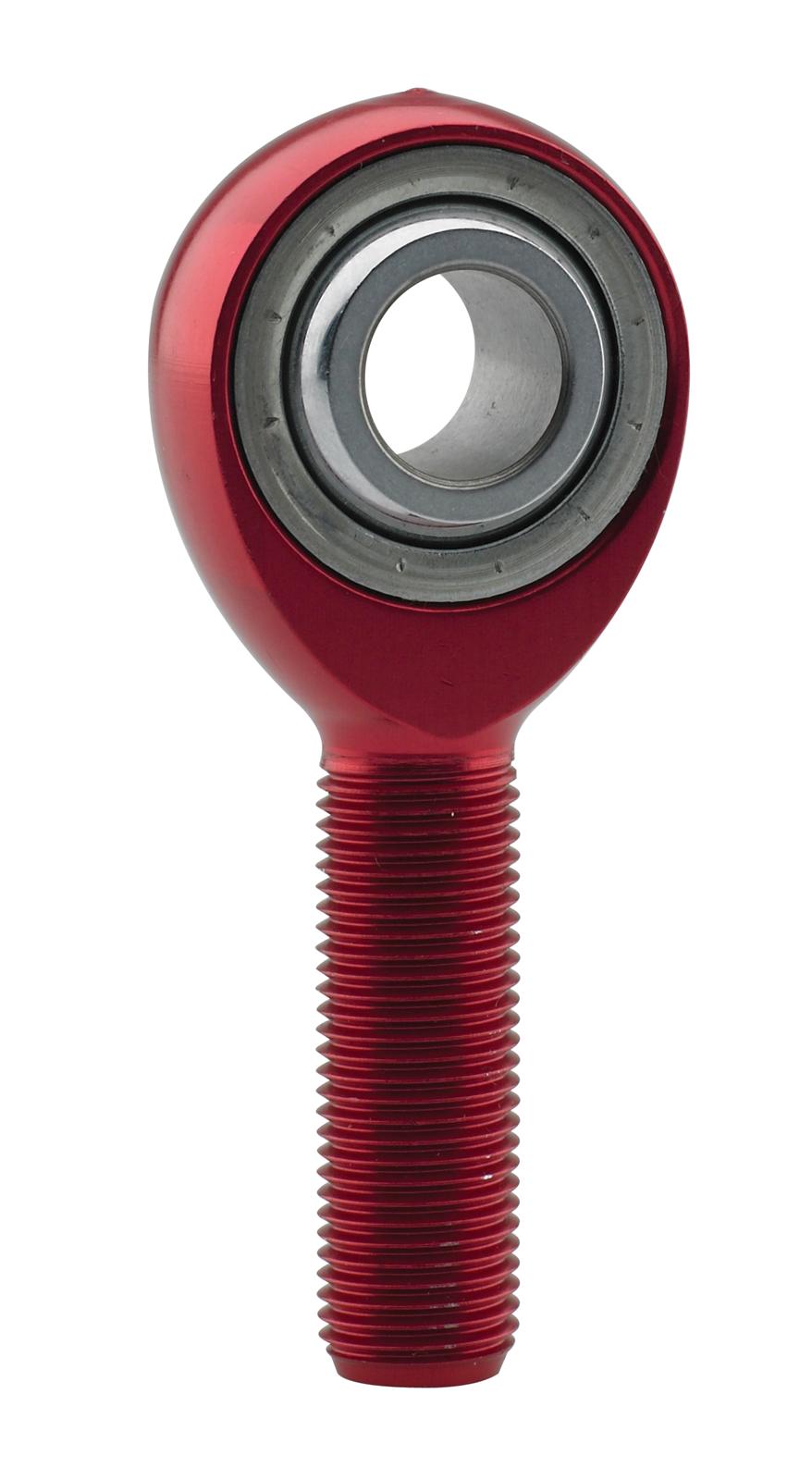

FK ALJM Series Rod Ends ALJM5

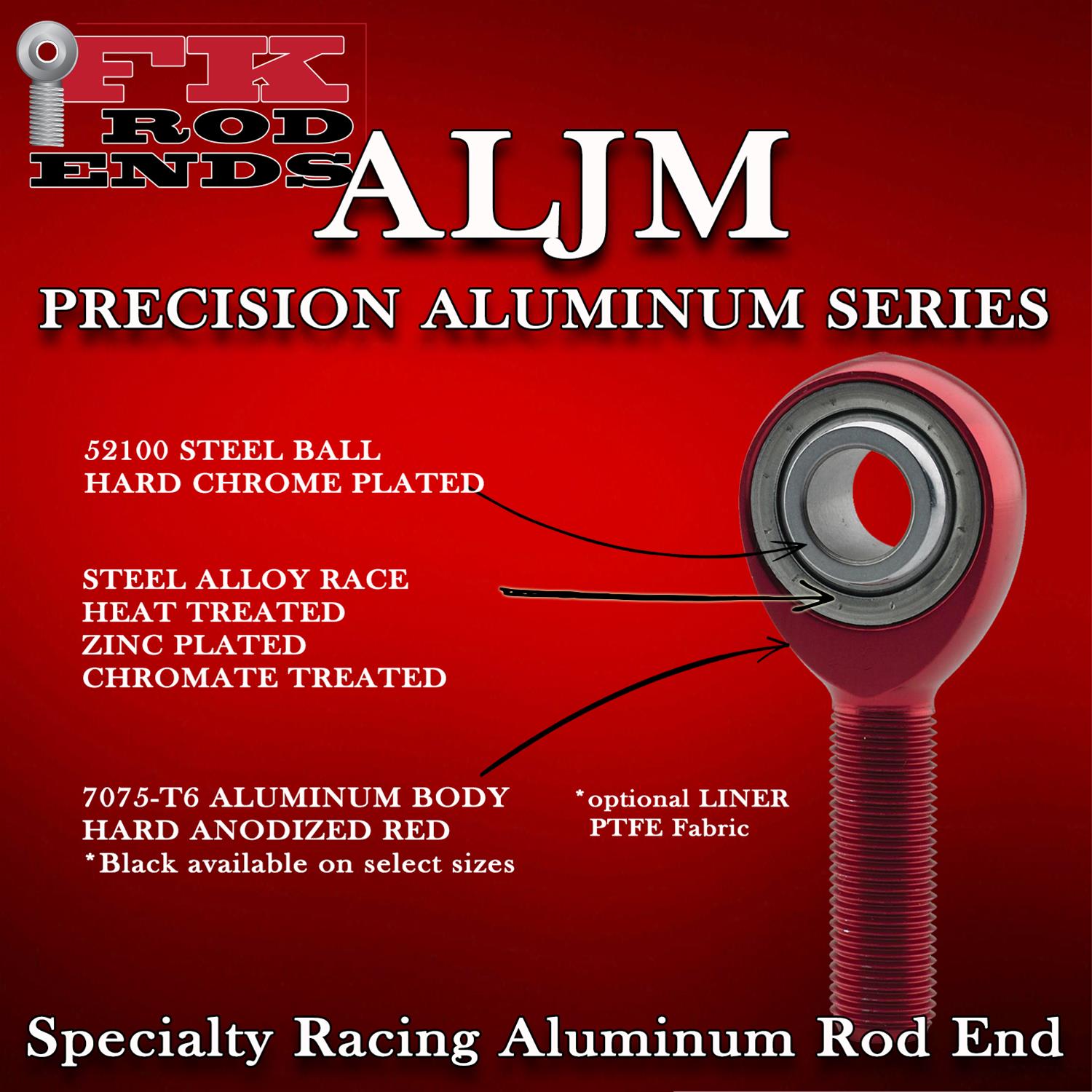

Thanks to demand from the open wheel market, FK Rod Ends offers ALJM Series rod ends for use on bird cages with a 3/8 in. bore. Available in a choice of sizes, ALJM Series rod ends also fit Jacobs ladders without drilling or using bushings. These 3-piece, precision wear-resistant rod ends feature 7075-T6 aluminum bodies with a hard, red anodized finish. Heat-treated steel alloy races are zinc plated and chromate-treated for strength and durability. ALJM Series rod ends have a heat-treated, hard chrome plated 52100 steel ball. PTFE liners are available for these rod ends.Brand: FK Rod Ends
Manufacturer's Part Number: ALJM5
Part Type: Rod Ends
Product Line: FK ALJM Series Rod Ends
HP Direct Part Number: FKB-ALJM5
UPC: 800199030501
Rod End Thread Size: 5/16 in.-24
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.313 in.
Rod End Construction: 3-piece
Jam Nut Included: No
Rod End Style: Metal to metal
Thread Length: 1.250 in.
Rod End Head Diameter: 0.875 in.
Rod End Head Width: 0.344 in.
Grease Fitting: No
Rod End Centerline Length: 1.875 in.
Heat-Treated: No
Rod End Ball Width: 0.437 in.
Rod End Misalign Angle: 14 degrees
Rod End Static Load Capacity: 2,850 lbs.
Rod End Material: Aluminum
Rod End Finish: Red anodized
Quantity: Sold individually.
